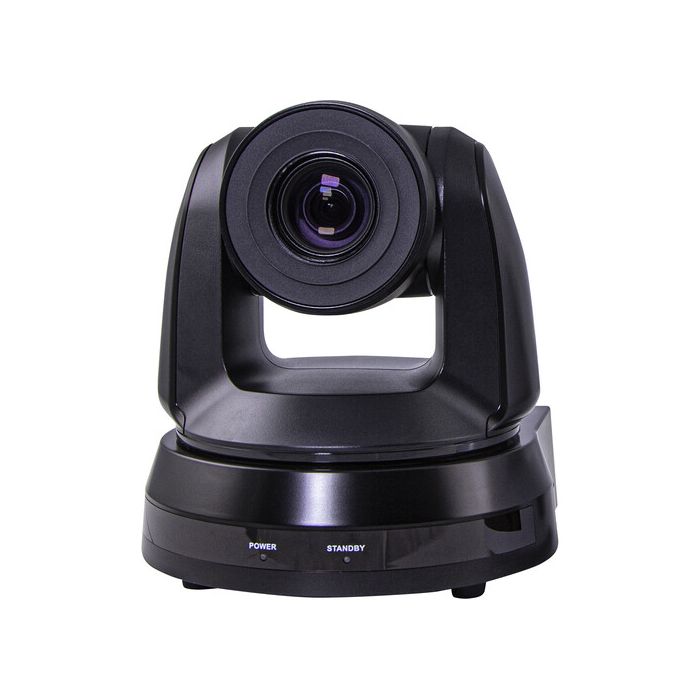

Marshall Electronics CV620-BI 20x PTZ Camera with IP, 3GSDI, and HDMI (Black)

SKU
CV620-BI
$1,999.00



Key Features
  • Capture up to 1080p60 Video
  • 2MP 1/2.8" Sensor, 5.3 to 110mm Lens
  • 20x Optical Zoom
  • 3G/HD-SDI and HDMI Outputs
  • IR, RS-232, and RS-422 Serial Control
  • 340° Panning

The Marshall Electronics CV620-BI 20x PTZ Camera with IP, 3GSDI, and HDMI connectivity in sleek black is a versatile powerhouse designed to meet the demands of professional video production. Ideal for broadcasting live events, capturing dynamic presentations, or hosting high-stakes conferences, this PTZ camera offers exceptional performance and flexibility.

Featuring a robust 20x optical zoom lens, the CV620-BI ensures that every detail is captured with pristine clarity, even from considerable distances. With its multiple connectivity options including IP, 3GSDI, and HDMI, it seamlessly integrates into any setup, providing versatile output options to suit your specific requirements.

Experience precise control and smooth, noise-free movements with the CV620-BI's intuitive interface. Whether adjusting focus, zooming in on key moments, or panning across the scene, this PTZ camera delivers professional-grade results with ease.

With exceptional low-light performance and advanced features such as image stabilization and autofocus, the CV620-BI ensures reliable performance in any environment. Built to withstand continuous use, this camera offers uncompromising quality and durability.

Whether you're capturing live concerts, sporting events, corporate presentations, or more, the Marshall Electronics CV620-BI 20x PTZ Camera is your ultimate tool for achieving stunning visuals that engage your audience. With its versatility, performance, and reliability, this black PTZ camera sets the standard for professional video production.

Write Your Own Review
You're reviewing:Marshall Electronics CV620-BI 20x PTZ Camera with IP, 3GSDI, and HDMI (Black)
Your Rating
  • Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black)
  • Remote Control
  • Power Adapter
  • Power Cable
  • RS-422 Connector
  • Ceiling Mount Kit
More Information
SPECS
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1 Second
Gain
0 to 45 dB
Minimum Illumination
1 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
1700 to 10,000K
Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Focal Length
5.3 to 110mm
Optical Zoom Ratio
20x
Field of View
60 to 3°
Maximum Aperture
f/1.6 to 3.6
Minimum Focus Distance
Wide: 4.9' / 1.5 m
External Recording Modes
SDI/BNC / HDMI
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Audio Recording
48 kHz AAC Audio
16 kHz G.711 Audio
Broadcast Output
NTSC
IP Streaming
H.264, MJPEG, MPEG-TS, ONVIF, RTMP, RTMPS, RTSP, SRT
1920 x 1080
1280 x 720
Presets
128 via RS-232, VISCA, Pelco-P, Pelco-D
10 via IR
Move Speed
Pan: 120°/sec
Movement Range
Pan: 340° (-170 to 170°)
Tally Light
Yes
Supported Control Protocols
Pelco-D
Pelco-P
RS-232
RS-422
VISCA
Video I/O
1x BNC (3G-SDI) Output
1x HDMI Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1x Mini-DIN 8-Pin (RS-232) Input
1x Mini-DIN 8-Pin (RS-232) Output
1x Block 9-Pin (RS-422) Input
1x RJ45 (LAN) Input/Output
Built-In Speaker
No
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (12VDC) Input
Power Consumption
Power Supply: 16 W
PoE: 18 W
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Mounting
1x 1/4"-20 Female
7x M3 Female
Dimensions (W x H x D)
6.9 x 7.3 x 7.4" / 17.4 x 18.6 x 18.7 cm
Weight
4.41 lb / 2 kg
