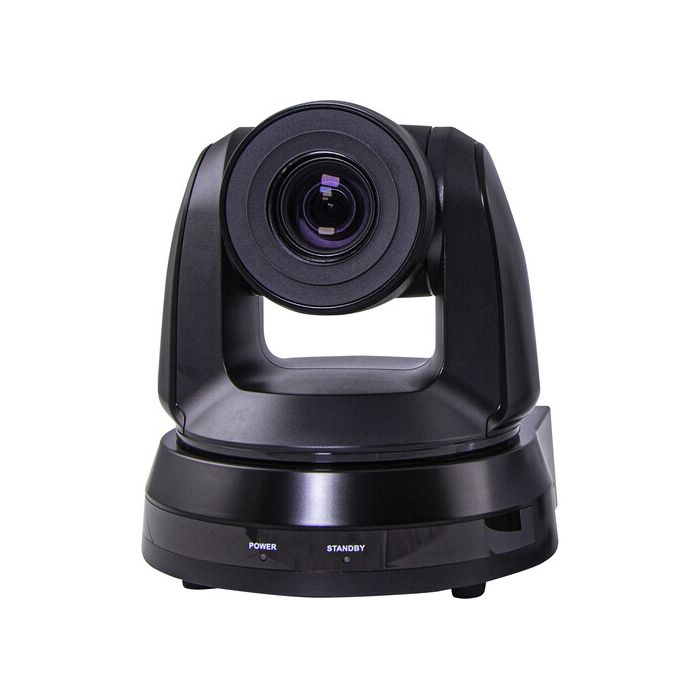

Marshall Electronics CV620-TBI 20x Tracking PTZ Camera IP/3GSDI/HDMI (Black)

SKU
CV620-TBI
$2,499.00



Key Features
  • Outputs up to 1080p60 Video
  • Auto Tracking, Framing & Following
  • 2MP 1/2.8" Sensor, 5.3 to 110mm Lens
  • 20x Optical Zoom, 12x Digital Zoom
  • Ethernet, 3G-SDI & HDMI Outputs
  • 340° Pan, 120° Tilt

The Marshall Electronics CV620-TBI 20x Tracking PTZ Camera is designed to enhance your conference experience with its advanced features. Using cutting-edge AI (artificial intelligence) technology, this professional-grade camera offers automatic tracking, following, and framing capabilities for your presenters and participants. By employing a facial learning process, the camera ensures precise and seamless adjustments, resulting in smoother movements and more accurate tracking.

With its 20x optical zoom lens, the CV620-TBI provides versatile coverage, ranging from a wide 60° angle to a detailed 3° telephoto view. This allows you to capture every detail of your conference environment with clarity. The camera offers flexible connectivity options, including a networkable IP interface, along with simultaneous 3G-SDI and HDMI outputs. Additionally, its PoE+ power feature enables easy single-cable installation, streamlining setup and operation.

The AI technology integrated into this PTZ camera enables intelligent tracking, following, and framing of subjects. By recognizing faces and learning the movement patterns of presenters, it anticipates motion and smoothly adjusts the camera to keep subjects in focus. This results in reduced viewer irritation and fatigue, enhancing the overall viewing experience.

Featuring a 2MP Sony sensor, the CV620 delivers high-definition video output at resolutions up to 1080p60. The 20x optical zoom lens ensures sharp and detailed imagery, while the AI-driven autofocus function maintains accurate focus on your subjects throughout the conference.

The CV620-TBI offers simultaneous pan, tilt, and zoom functionality with adjustable speeds, allowing for seamless and silent camera movements. With an impressive 340° pan range and 120° tilt capability, coupled with the 20x optical zoom, this camera provides extensive coverage for capturing wide shots as well as close-ups with exceptional clarity.

Write Your Own Review
You're reviewing:Marshall Electronics CV620-TBI 20x Tracking PTZ Camera IP/3GSDI/HDMI (Black)
Your Rating
  • Marshall Electronics CV620-TBI 20x Tracking PTZ Camera (Black)
  • Remote Control
  • Power Adapter
  • Power Cord
  • RS-422 Connector
  • Metal Plate A
  • Metal Plate B
  • 8 x M3 Screw (Silver)
  • 2 x M3 Screw (Black)
More Information
SPECS
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2 Megapixel
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Shutter Speed
1/10000 to 1 Second
Minimum Illumination
1 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Manual
Focal Length
5.3 to 110mm
Optical Zoom Ratio
20x
Field of View
60 to 3°
Maximum Aperture
f/1.6 to 3.6
External Recording Modes
SDI/BNC / HDMI / RJ45
1920 x 1080p at 25/30.00/50/59.94 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output
NTSC/PAL
IP Streaming
H.264, MPEG-TS, RTMP, RTMPS, RTSP, SRT
1920 x 1080 at 25p, 30p, 50p, 60p
Move Speed
Pan: 5 to 300°/sec
Movement Range
Pan: 340°
Tilt: 120°
Tally Light
Yes
Supported Control Protocols
Pelco-D
RS-232
RS-422
VISCA
Video I/O
1x BNC (3G-SDI) Output
1x HDMI Output
1x RJ45 Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1x Mini-DIN 8-Pin (RS-232) Input
1x Mini-DIN 8-Pin (RS-232) Output
1x Block 9-Pin (RS-422) Input
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel Input
Power Consumption
20 to 23 W
Operating Temperature
32 to 72°F / 0 to 40°C
Mounting
1x 1/4"-20 Female
Dimensions (W x H x D)
7.3 x 7.3 x 6.9" / 186 x 185 x 174 mm
Weight
4.41 lb / 2 kg
