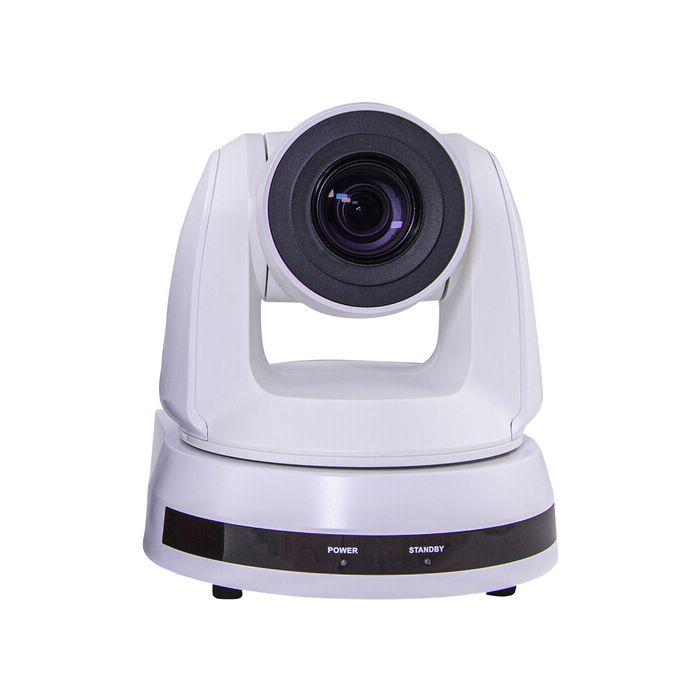

Marshall Electronics CV620-WI 20x PTZ Camera with IP, 3GSDI, and HDMI (White)

SKU
CV620-WI
$1,999.00



Key Features
  • Capture up to 1080p60 Video
  • 2MP 1/2.8" Sensor, 5.3 to 110mm Lens
  • 20x Optical Zoom
  • 3G/HD-SDI and HDMI Outputs
  • IR, RS-232, and RS-422 Serial Control
  • 340° Panning

The Marshall Electronics CV620-WI 20x PTZ Camera, available in white, is a versatile camera solution designed for various applications. With its comprehensive connectivity options including IP, 3G-SDI, and HDMI, this camera offers flexibility and ease of integration into different setups.

Featuring a powerful 20x optical zoom lens, the CV620-WI enables capturing detailed shots from a distance while maintaining image clarity. Whether you're recording events, conducting video conferences, or streaming content, this camera ensures that you can capture every detail with precision.

The CV620-WI's IP capability allows for seamless integration into networked environments, enabling remote monitoring and control. With 3G-SDI and HDMI outputs, you can connect the camera directly to monitors, recorders, or other compatible devices, making it suitable for various production setups.

Its sleek white design adds a touch of elegance to any space, blending seamlessly with different aesthetics. Whether used in conference rooms, classrooms, or broadcast studios, the CV620-WI delivers professional-grade performance with style.

Overall, the Marshall Electronics CV620-WI 20x PTZ Camera offers a combination of advanced features, versatile connectivity options, and aesthetic appeal, making it an ideal choice for a wide range of applications.

Write Your Own Review
You're reviewing:Marshall Electronics CV620-WI 20x PTZ Camera with IP, 3GSDI, and HDMI (White)
Your Rating
  • Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (White)
  • Remote Control
  • Power Adapter
  • Power Cable
  • RS-422 Connector
  • Ceiling Mount Kit
More Information
SPECS
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1 Second
Gain
0 to 45 dB
Minimum Illumination
1 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
1700 to 10,000K
Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Focal Length
5.3 to 110mm
Optical Zoom Ratio
20x
Field of View
60 to 3°
Maximum Aperture
f/1.6 to 3.6
Minimum Focus Distance
Wide: 4.9' / 1.5 m
External Recording Modes
SDI/BNC / HDMI
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Audio Recording
48 kHz AAC Audio
16 kHz G.711 Audio
Broadcast Output
NTSC
IP Streaming
H.264, MJPEG, MPEG-TS, ONVIF, RTMP, RTMPS, RTSP, SRT
1920 x 1080
1280 x 720
Presets
128 via RS-232, VISCA, Pelco-P, Pelco-D
10 via IR
Move Speed
Pan: 120°/sec
Movement Range
Pan: 340° (-170 to 170°)
Tally Light
Yes
Supported Control Protocols
Pelco-D
Pelco-P
RS-232
RS-422
VISCA
Video I/O
1x BNC (3G-SDI) Output
1x HDMI Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1x Mini-DIN 8-Pin (RS-232) Input
1x Mini-DIN 8-Pin (RS-232) Output
1x Block 9-Pin (RS-422) Input
1x RJ45 (LAN) Input/Output
Built-In Speaker
No
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (12VDC) Input
Power Consumption
Power Supply: 16 W
PoE: 18 W
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Mounting
1x 1/4"-20 Female
7x M3 Female
Dimensions (W x H x D)
6.9 x 7.3 x 7.4" / 17.4 x 18.6 x 18.7 cm
Weight
4.41 lb / 2 kg
