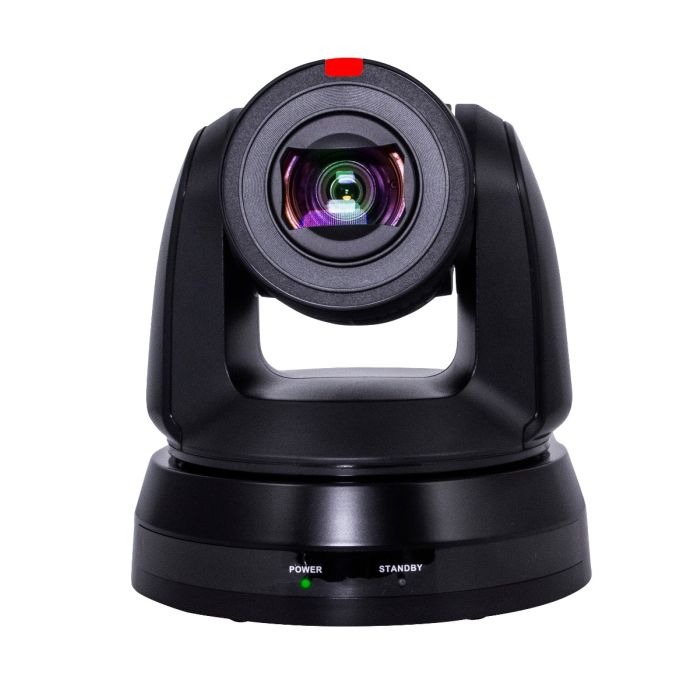

Marshall Electronics CV630-IP Broadcast Pro AV UHD 4K IP PTZ Camera (Black)

$2,239.00
SKU
CV630-IP

Product Highlights:

  • 8MP 1/2.5" sensor
  • 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
  • 3GSDI, HDMI, and IP simultaneous outputs
  • Simultaneous pan, tilt, and zoom
  • H.265 (HEVC) and H.264 (triple-stream) networked outputs
  • RTSP / RTMP / MPEG-TS / Haivision SRT
  • 3840x2160p, 1920x1080p, and 1280x720p
  • Stereo audio input (mic or line level) embedding
  • PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
  • 340° pan, 120° tilt, and 30X zoom range
  • Front tally light

High-Performance Video Output

At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.

Versatile Camera Positioning

The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options

The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.

Applications:

The CV630-IP is suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications.

CV630-IP - Specification

Specs
Image Sensor
Image Sensor:1-Chip 1/2.5" CMOS Sensor
Sensor Resolution:3840 x 2160 (8.0 MP)
mage Sensor:1-Chip 1/2.5" CMOS Sensor
Sensor Resolution:3840 x 2160 (8.0 MP)
Camera
Built-In Microphone Type:Stereo
Flip / Mirror Support:Image Flip, Mirror (Vertical)
Built-In Microphone Type:Stereo
Flip / Mirror Support:Image Flip, Mirror (Vertical)
Lens
Optical Zoom Ratio:30x
Focal Length:4.6 to 135mm
Field of View:Horizontal: 70°
Maximum Aperture:f/1.6 to 3.5
Focus Control:Autofocus
Manual Focus
Optical Zoom Ratio:30x
Focal Length:4.6 to 135mm
Field of View:Horizontal: 70°
Maximum Aperture:f/1.6 to 3.5
Focus Control:Autofocus
:Manual Focus
Video Output
Broadcast System Compatibility:NTSC, PAL
Output Formats:SDI, HDMI: 3840 x 2160p1920 x 1080p1280 x 720p
Embedded Audio:SDI: 2-Channel
HDMI: 2-Channel
IP Streaming:H.264, H.265, RTMP, RTSP: 1080p, 720p
Broadcast System Compatibility:NTSC, PAL
Output Formats:SDI, HDMI: 3840 x 2160p1920 x 1080p1280 x 720p
Embedded Audio:SDI: 2-Channel
:HDMI: 2-Channel
IP Streaming:H.264, H.265, RTMP, RTSP: 1080p, 720p
Control
Movement Range:Pan: 340°
Tilt: 120°
Tally Light:Yes
Supported Control Protocols:IP
Pelco-D
Pelco-P
VISCA
Movement Range:Pan: 340°
:Tilt: 120°
Tally Light:Yes
Supported Control Protocols:IP
:Pelco-D
:Pelco-P
:VISCA
Interfaces
Video Output Connectors:1 x BNC (3G-SDI) Female
1 x HDMI Type A (HDMI 1.4) Female
Audio I/O:1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
Control Interface:1 x RJ45 (IP Control, LAN)
Other I/O:1 x 8-Pin Mini DIN (RS-232) Input
1 x 8-Pin Mini DIN (RS-232) Output
1 x 9-Pin Euroblock (RS-422) Input/Output
Video Output Connectors:1 x BNC (3G-SDI) Female
:1 x HDMI Type A (HDMI 1.4) Female
Audio I/O:1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
Control Interface:1 x RJ45 (IP Control, LAN)
Other I/O:1 x 8-Pin Mini DIN (RS-232) Input
:1 x 8-Pin Mini DIN (RS-232) Output
:1 x 9-Pin Euroblock (RS-422) Input/Output
Power
PoE Support:Yes
Power Connectors:1 x Barrel / Coaxial (12 VDC)
PoE Support:Yes
Power Connectors:1 x Barrel / Coaxial (12 VDC)
General
Security Lock Support:Kensington Lock Slot
Security Lock Support:Kensington Lock Slot
    Items Included:
    • Marshall Electronics CV630-IP Broadcast Pro AV UHD 4K IP PTZ Camera (Black)
    • Remote Control
    • Power Cord
    • Power Adapter
    • RS-422 Connector (Removable)
    • Metal Installation Plate A
    • Metal Installation Plate B
    • Set of M3 Screws
