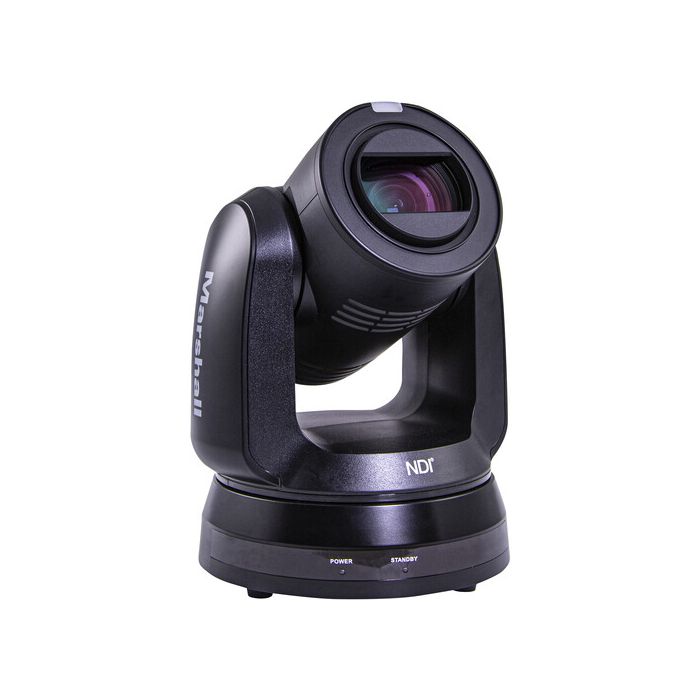

Marshall Electronics CV730-BHN UHD60 PTZ 30x Camera Full-NDI (Black)

SKU
CV730-BHN
$4,999.00



Key Features
  • Up to UHD 4K 59.94 fps Capture & Output
  • USB-B, 12G-SDI & HDMI Outputs
  • NDI, NDI|HX2/HX3, IP/HEVC & SRT Output
  • 30x Optical Zoom, 12x Digital Zoom
  • Built-In Tally Light, Audio Input
  • Power Supply & PoE++ Support

Upgrade your meeting room, event production, or house of worship with the sleek black CV730-BHN NDI/SDI/HDMI/IP PTZ Camera, offering powerful 4K capabilities. This indoor camera boasts a 30x optical zoom lens, expandable up to 12x digital zoom, making it suitable for a range of spaces from intimate meeting rooms to expansive auditoriums.

Equipped with a tally lamp positioned above the lens, this camera is perfect for applications requiring talent tally. The CV730-BHN features a high-quality 9.2MP 1/1.8" sensor, enabling it to capture stunning UHD 4K video at 59.94 fps resolution. Its versatility extends further with USB-B video output for webcam use, as well as simultaneous 12G-SDI, HDMI, and IP streaming outputs. Additionally, it fully supports NDI, NDI|HX2, and NDI|HX3 transmission via IP.

Enjoy simplified setup and operation with PoE++ compatibility, allowing power, control, video, and audio to be transmitted via a single Ethernet cable on compatible networks. Remote adjustments are made easy using RS-232 input and output ports, or via an RS-422 port, enabling precise control over settings such as iris, pan, tilt, zoom, white balance, exposure, and more. For added convenience, an included IR remote control allows for on-the-fly adjustments, including preset selection.

Elevate your video production with the CV730-BHN, combining exceptional image quality, versatile connectivity, and intuitive control options in one sleek package.

Multiple High-Resolution Output Options

Featuring output options of 12G-SDI, HDMI, USB-B, and IP simultaneous outputs from a professional grade 9.2MP, 1/1.8" UHD sensor and smooth synchronous movements. The CV730-BHN delivers crystal-clear UHD 4K images up to 3840 x 2160 at 59.94 fps resolution. The USB-B output supports up to 4K30 resolution.


Flexible Zoom Range

Designed with a precision 30x optical zoom range starting at a 65° horizontal angle-of-view, it features a 6.5 to 202mm focal length that captures crystal clear shots at very long distances.


Power Options

Install one cable from an IP switch that supports PoE++ via the Ethernet port, or you can utilize a power adapter and output video via traditional outputs (12G/6G/3G-SDI or HDMI) for production, switching, or archiving.


Control Options

You can control the camera via separately available switchers or software via RS-232/RS-422 open source serial protocols, using NDI, or via IP over a LAN. The camera also includes a wireless remote control for presets, settings, and camera selection.
Write Your Own Review
You're reviewing:Marshall Electronics CV730-BHN UHD60 PTZ 30x Camera Full-NDI (Black)
Your Rating
  • Marshall Electronics CV730-BHN NDI/SDI/HDMI/IP PTZ Camera with 30x Optical Zoom (Black)
  • 12V Power Adapter
  • Power Cord
  • Remote Control
  • RS-422 Connector Block
  • Metal Installation Plate A
  • Metal Installation Plate B
  • Set of M3 Screws
More Information
SPECS
Image Sensor
1/1.8"-Type CMOS
Sensor Resolution
Effective: 9.2 Megapixel
IR Cut Filter
No
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1 Second
Gain
0 to 45 dB
Minimum Illumination
0.05 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
Focal Length
6.5 to 202mm
Optical Zoom Ratio
30x
Max Digital Zoom
12x
Field of View
Horizontal: 65°
External Recording Modes
SDI/BNC / HDMI / RJ45
3840 x 2160 at 25/29.97/50/59.94 fps
1920 x 1080p at 25/29.97/50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
Embedded Audio
HDMI/LAN (RJ45)/NDI/SDI/USB
Audio Recording
Yes
Broadcast Output
NTSC
IP Streaming
H.264, H.265, MPEG-TS, NDI, NDI|HX, NDI|HX2, NDI|HX3, RTMP, RTMPS, RTP, RTSP, SRT, TCP, UDP
3840 x 2160 at 25p, 29.97p, 50p, 59.94p
1920 x 1080 at 25p, 29.97p, 50p, 59.94p
1280 x 720 at 25p, 30p, 50p, 59.94p
IP Multi-Stream Support
Simultaneous
H.264, H.265, RTMP, RTP, RTSP, TCP: UHD 4K, 1080p, 720p
Presets
255
Move Speed
5 to 300°/sec
Movement Range
Pan: 340°
Tilt: 120°
Tally Light
Yes
Supported Control Protocols
Pelco-D
RS-232
RS-422
VISCA
Video I/O
1x BNC (12G-SDI) Output
1x BNC (3G-SDI) Output
1x HDMI 2.0 Output
1x RJ45 (NDI) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1x Mini-DIN 8-Pin (RS-232) Input
1x Mini-DIN 8-Pin (RS-232) Output
1x Block 9-Pin (RS-422)
PoE Support
PoE++ 802.3bt
Power I/O
1x Barrel (12VDC) Input
Mounting
1x 1/4"-20 Female
Security Lock Support
Kensington Lock Slot
Dimensions (W x H x D)
9.1 x 7.4 x 7.4" / 23.2 x 18.9 x 18.8 cm
Weight
6.6 lb / 3 kg
