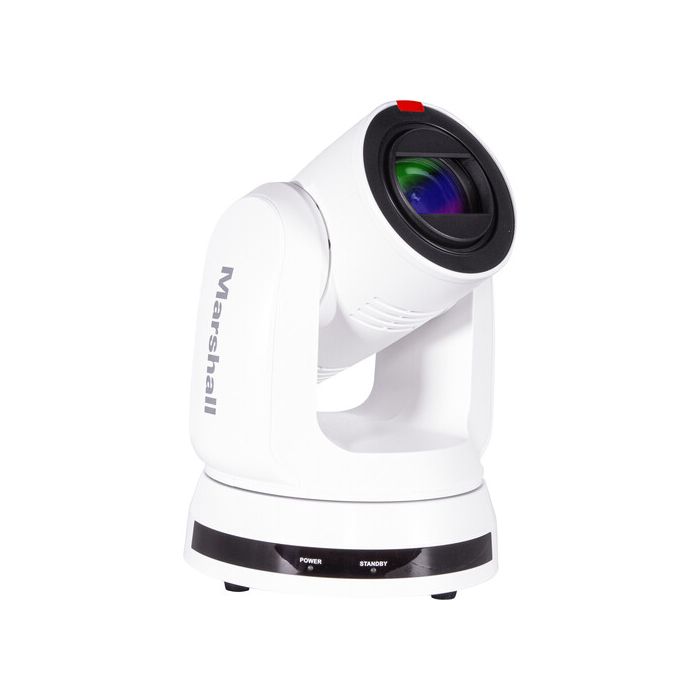

Marshall Electronics CV730-WH 30X UHD60 PTZ Camera - White

SKU
CV730-WH
$3,499.00

Product Highlights:

  • Up to UHD 4K/59.94 Capture and Output
  • Simultaneous 12G-SDI, HDMI & IP Outputs
  • 30x Optical Zoom
  • Built-In Tally Light
  • PoE++
  • RS-232 and RS-422 Control for 7 Cameras

Marshall's CV730 UHD 4K60 IP PTZ Camera, in white, is an indoor camera with a 30x optical zoom lens suitable for everything from small meeting rooms to large event spaces such as auditoriums. A tally lamp is built in right above the lens for applications requiring tally for your talent. Featuring an 8.5MP 1/1.8" sensor, the CV730 captures up to UHD 4K/59.94 resolution video and provides simultaneous 12G-SDI, HDMI, and IP outputs.

While a power supply is included, a single Ethernet cable, sold separately, can be used for power, control, video, and audio, or for just power and control while the video signal is sent via the other outputs. Via RS-232 input and output ports or an RS-422 port, up to seven cameras can be linked up in a serial connection, and you can remotely adjust and match settings such as iris, pan, tilt, zoom, white balance, exposure, pedestal, and many more over long distances or during setup. Auto settings can also be set up to track environmental fluctuations. Alternatively, an included IR remote control can be used to adjust settings, including selecting presets.

Key Features

  • Up to UHD 4K resolution capture and output at up to 59.94 fps
  • Simultaneous 12G/6G/3G-SDI, HDMI 2.0, and IP (HEVC/H.265) outputs
  • 30x optical zoom (6.5 to 202mm), starting at 65° horizontal FOV
  • 3.5mm TRS stereo audio mic/line input
  • RS-232 and RS-422 ports for controlling up to seven cameras
  • 340° pan and 120° tilt range
  • USB 3.0 port for connecting to your computer for USB signal images
  • Dip switch on the rear
Write Your Own Review
You're reviewing:Marshall Electronics CV730-WH 30X UHD60 PTZ Camera - White
Your Rating

Items Included:

  • Marshall Electronics CV730 UHD 4K60 IP PTZ Camera with 30x Optical Zoom (White)
  • 12V Power Adapter
  • Power Cord
  • Remote Control
  • RS-422 Connector Block
  • Metal Installation Plate A
  • Metal Installation Plate B
  • Set of M3 Screw
  • Limited 1-Year Warranty

CV730-WH - Specification

More Information
Image Sensor
Image Sensor:1-Chip 1/1.8" CMOS Sensor
Sensor Resolution:8.5 MP
Camera
Flip / Mirror Support:Image Flip, Mirror (Vertical)
Lens
Optical Zoom Ratio:30x
Focal Length:6.5 to 202mm
Focus Control:Autofocus
Manual Focus
Video Output
Output Formats:SDI, HDMI, RJ45: 3840 x 2160 at 25, 29.97, 50, 59.94 fps
1920 x 1080p at 25, 29.97, 50, 59.94 fps
1280 x 720p at 25, 29.97, 50, 59.94 fps
Embedded Audio:HDMI/SDI
Control
Presets:255
Move Speed:5 to 300°/se
Movement Range:Pan: 340°
Tilt: 120
Tally Light:Yes
Supported Control Protocols:Pelco-D
RS-232
RS-422
VISCA
Interfaces
Video Output Connectors:1 x BNC (12G-SDI / 6G-SDI / 3G-SDI)
1 x HDMI Type A (HDMI 2.0)
1 x RJ45
Audio I/O:1 x 1/" / 3.5 mm Stereo Mic/Line Level Input
Control Interface:1 x 8-Pin Mini-DIN (RS-232) Input
1 x 8-Pin Mini-DIN (RS-232) Output
1 x 9-Pin Terminal Block (RS-422)
Other I/O:1 x USB (Unspecified Type
Power
PoE Support:PoE++ 802.3bt
Power Connectors:1 x Barrel / Coaxia
General
Tripod Mounting Thread:1 x 1/"-20 Female
Security Lock Support:Kensington Lock Slot
Dimensions:9.2 x 7.4 x 7.3" / 234 x 189 x 186 m
Weight:6.6 lb / 3
Packaging Info
Package Weight:11.75 lb
Box Dimensions (LxWxH):16.9 x 12.9 x 10.3"
