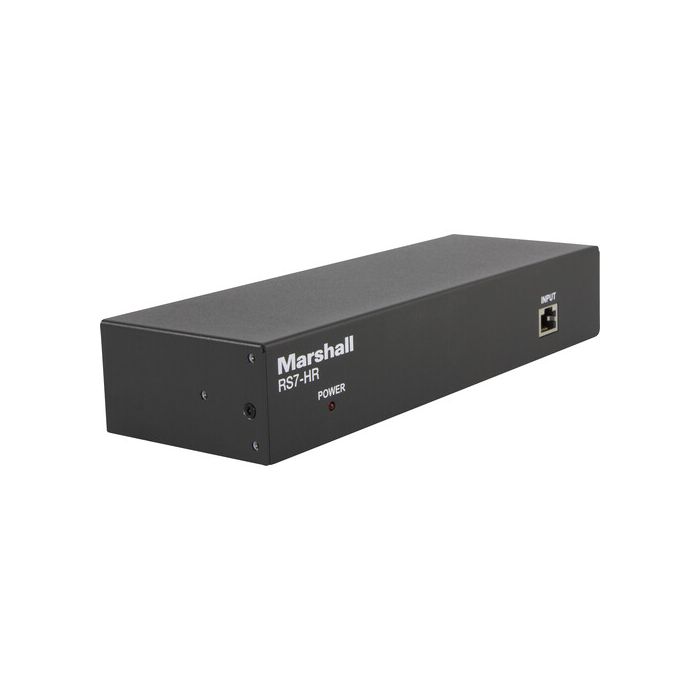

Marshall Electronics RS7-HR 1x7 RS-232/RS-485 Home-Run Splitter/Amplifier
- 1x7 RS-232/422 Splitter
- Use 1 x Controller for 7 x PTZ Cameras
- Up to 656' RS-232 Away from Controller
- Up to 1969' RS-422 Away from Controller
- VS-PTC-IP & VS-PTC-200 Compatible
- Cat 5/6 Cable Support
Control up to seven PTZ cameras from a single controller using this RS7-HR 1x7 RS-232/RS-485 Home-Run Splitter/Amplifier from Marshall Electronics. The RS7-HR features one RJ45 input and seven RJ45 outputs that support RS-232 or RS-422 serial control communication. A switch on the back of the unit changes the communication protocol between RS-232 and RS-422. The unit is compatible with a variety of RS-232 and RS-422 serial PTZ controllers such as the Marshall VS-PTC-IP and the VS-PTC-200.
You can run a Cat 5/6 cable, as well as any optional adapters, between your controller and the unit and one to a PTZ camera for a total run of up to 656' using RS-232 communication and up to 1969' using RS-422 communication. The unit is powered using the included 5V power adapter and it includes 1 RU rack ears for mounting.
Compatibility
PTZ cameras that support RS-232 and RS-422 serial control signaling
Cat 5/6 cable
1 RU rack
The Marshall Electronics RS7-HR is a 1x7 RS-232/RS-485 Home-Run Splitter/Amplifier designed to enhance and distribute RS-232 and RS-485 signals efficiently within a network. This device serves as a central hub for transmitting and amplifying control signals to multiple devices, making it an essential component in various control and automation systems.
With its 1x7 configuration, the RS7-HR can take a single RS-232 or RS-485 signal input and split it into seven separate outputs, effectively distributing the signal to multiple devices or endpoints. This allows for seamless communication between control devices, such as computers or controllers, and peripheral equipment, such as cameras, displays, or lighting systems.
Additionally, the RS7-HR acts as an amplifier, ensuring that the transmitted signals maintain their integrity and strength over long distances or through complex network configurations. This helps prevent signal degradation and ensures reliable communication between devices, even in large-scale installations.
Whether used in professional AV setups, security systems, or industrial automation environments, the Marshall Electronics RS7-HR provides a robust and efficient solution for distributing RS-232 and RS-485 signals, facilitating seamless control and operation of interconnected devices.
- Marshall Electronics RS7-HR 1x7 RS-232/RS-485 Home-Run Splitter/Amplifier
- Power Adapter
- 1 RU Rackmount Kit
