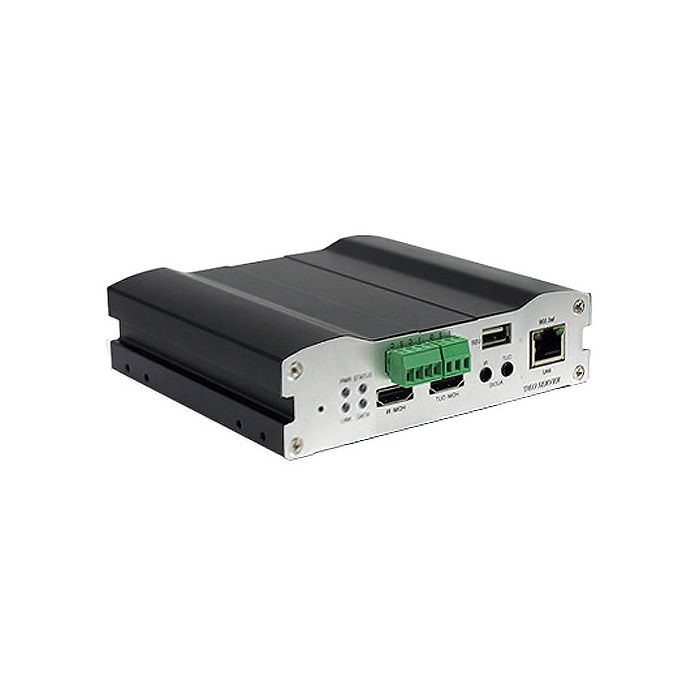

Marshall Electronics VS-102-HDI 2.0 MP High Resolution Encoder/Decoder with HDMI

$966.00
SKU
VS-102-HDI

Product Highlight:

  • High Quality AV Encoder / Decoder (Selectable)
  • Full HD resolution 1080p Encoding / Decoding
  • Up to 30fps @ 1920 x 1080 streaming
  • H.264/H.264 & H.264/MJPEG Dual Streaming
  • Two-Way Audio Communication
  • Mono Codec G.711 for Security applications
  • Stereo Codec AAC for Broadcast applications
  • HDMI Video Input / Output
  • Composite Video Input / Output
  • Audio Input / Output
  • Instant Recording to an optional USB drive (USB 2.0)
  • Supports DDNS (Dynamic Domain Name Server)
  • Built-in PoE (Power Over Ethernet: 802af)
  • RS-232 control built-in
  • RS-422/485 control built-in
  • 2 Sensor inputs
  • 2 Alarm outputs
  • Watchdog for system recovery
  • Integrated Video Motion Detection
  • Transmission of Video Data through FTP server
  • Wide Range of Video Bit Rate Control (32kbps ~ 10Mbps)
  • PSIA and ONVIF compliant

The Marshall VS-102-HDI is a High Definition Video Server that allows real-time transmission of HDMI or NTSC/PAL composite video signal along with bi-directional AAC encoded high definition stereo audio over standard IP networks and the internet. The Marshall VS-102-HDI incorporates advanced H.264 and MJPEG compression technology. This allows 50% more compression capacity over an existing IP Network, while providing optimal video transmission quality even in networks with limited bandwidth.

The VS-102-HDI may be configured to operate as a Point-to-Point talent monitoring system. For example, the unit can operate as an encoder to compress and transmit A/V data over a LAN to another VS-102-HDI located in a Green Room or other location. The other unit can act as a decoder which receives the compressed data through the LAN and restores the data to its' original high definition state. Additionally, other computers or VS-102-HDI decoders connected to the same network can monitor both the audio and video in multiple locations throughout a venue such as dressing rooms, stage manager, or box office at the same time. When properly configured, the VS-102-HDI may be simultaneously monitored through the internet.

VS-102-HDI - Specification

Specs
General Specifications
System Mode:Encoder, decoder
Network
Network Interface:Ethernet 10/100Base-T on RJ-45 connector
Network Protocol:TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP
Video
Standards:Main Stream: H.264
Secondary Stream: H.264/MJPEG
Bitrate:32 to 10,240 Kbps
Resolution:1920 x 1080/60i to 352 x 240/30fps, 18 resolution steps
Frame Rates:1 to 30 fps
Inputs:1 x HDMI type-A, HDMI RX
1 x Composite on BNC connector
Outputs:1 x HDMI type-A, HDMI TX
1 x Composite on BNC connector (Default)
Motion Detection:Sensitivity adjustment
Audio
Standards:G.711, AAC
Sample Rate:G.711: 8 kHz
AAC: 32 kHz
Bitrate:G.711: 64 Kbps
AAC: 64 Kbps, 128 Kbps
Input:1 x Line-in on 3.5 mm stereo mini
Output:1 x Line-out on 3.5 mm stereo mini
Serial Interface
Connectors:1 x RS-232 on terminal block
:1 x RS-422/485 on terminal block
Bitrate:2,400 bps to 115,200 bps
Sensor and Alarm
Sensor Input:2 x NO contact on terminal block
Alarm Output:2 x NO contact on terminal block
Beep:1 x Buzzer (88 dB minimum)
Reset Button:1 x Factor reset button
User Interface
System Status:4 x LED
Storage
Recording and Backup:1 x USB 2.0 port
Software
Software:VS Manager/VMS-16: Live Monitoring, recording, search and playback, backup
General
Power Requirements:12 VDC at 0.8 A, PoE (Power over Ethernet): 802.3af
Power Consumption:9.6 W maximum
Operating Temperature:14 to 122°F / -10 to 50°C
Dimensions (W x D x H):5.3 x 4.9 x 1.4" / 134 x 125 x 35 mm
Weight:17.8 oz / 504 g
Packaging Info
Package Weight:2.6 lb
Box Dimensions (LxWxH):11 x 9 x 3.8"
    • Marshall Electronics VS-102-HDI 2.0 MP High-Resolution Encoder/Decoder with HDMI

    • Power Supply (For Non-PoE Use)

    • Limited 1-Year Warranty, Extendable to 2-Year with Product Registration
