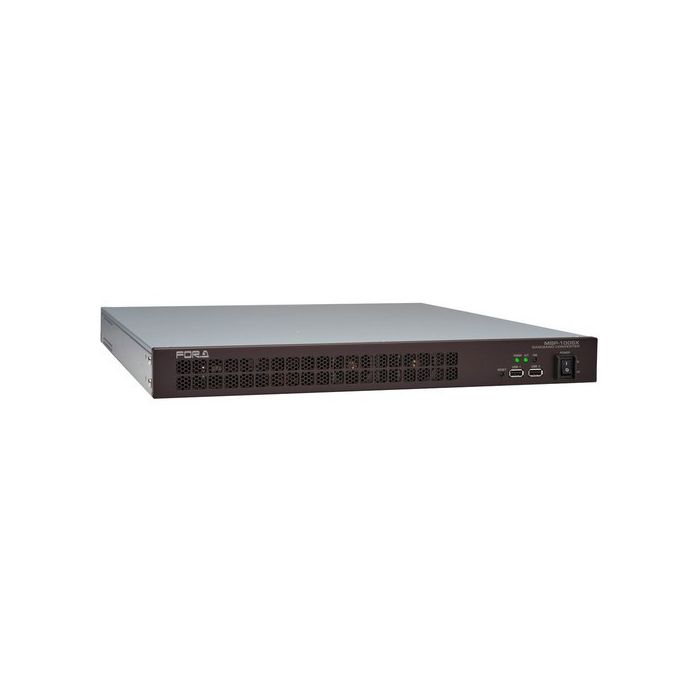

MBP-100SX128G MXF Clip Server Baseband Converter (128 GB)

The For-A MBP-100SX128G MXF Clip Server Baseband Converter (128 GB), with HD/SD-SDI inputs and outputs, and a 128 GB solid-state drive (SSD) for stable recording can record and play MXF files compatible with Sony XDCAM/XDCAM HD/XDCAM HD422 equipment. It enables clips to be transferred over gigabit ethernet providing seamless operation, and offers support for up to 8 audio channels, ingest (simultaneous multi-channel and multi-format live recording and transcoding), playback, and automatic program playout.

With the control software, the MBP-100SX128G MXF Clip Server Baseband Converter can be operated as a standalone unit when connected to a mouse and PC monitor or touch-panel interface. The control software also allows you to view recorded clips by thumbnail display. The baseband converter can be used with the MediaConcierge media management system to function as a clip server providing database-driven management of video clips and playout programs.

In addition to standalone operation, the MXF Clip Server Baseband Converter can be handled over a remote network by installation of software (optional) for remote operation on a PC. Additional optional software to handle lists indicating the playout order, or administer playouts involving multiple lists is available.

The MBP-100SX128G MXF Clip Server Baseband Converter features a 100Base-TX/1000Base-T Ethernet port, 4 USB 2.0 ports, RS-422, GPI, and a VGA port for all-round connectivity. With 1RU vibration-resistant case, it is suitable for off-site and in-vehicle applications. A single switch allows the converter to be turned on/off easily, and a solid hardware platform provides stable playback and live video recording.

• Supports MBP Standalone and multiple MBP Units playback applications
• Supports MBP as a video server and another video server playout applications
• Features HD/SD-SDI inputs and outputs and a 128 GB solid-state drive (SSD) for stable recording
• Can record and play MXF files compatible with Sony XDCAM/XDCAM HD/XDCAM HD422 equipments
• Enables clips to be transferred over gigabit ethernet providing seamless operation, and offers support for up to 8 audio channels, ingest (simultaneous multi-channel and multi-format live recording and transcoding), and playback
• Can be operated as a standalone unit when connected to a mouse and PC monitor or touch-panel interface with the control software
• Control software helps you to view recorded clips by thumbnail display
• Can be used with the MediaConcierge media management system to function as a clip server providing database-driven management of video clips and playout programs
• Can be handled over a remote network by installation of software (optional) for remote operation on a PC
• Option for an add-on software (optional) to handle lists indicating the playout order, or administer playouts involving multiple lists is available
• Features a 100Base-TX/1000Base-T Ethernet ports, 4 USB 2.0 ports, RS-422, GPI, and a VGA ports for all-round connectivity
• 1RU vibration-resistant case makes the converter is suitable for off-site and in-vehicle applications
• A single switch allows the converter to be turned on/off easily
• Solid hardware platform provides stable playback and live video recording
• Features HD/SD-SDI: 1 inputs/1 outputs
• SMPTE RP188, ANC (ancillary time code) time code
