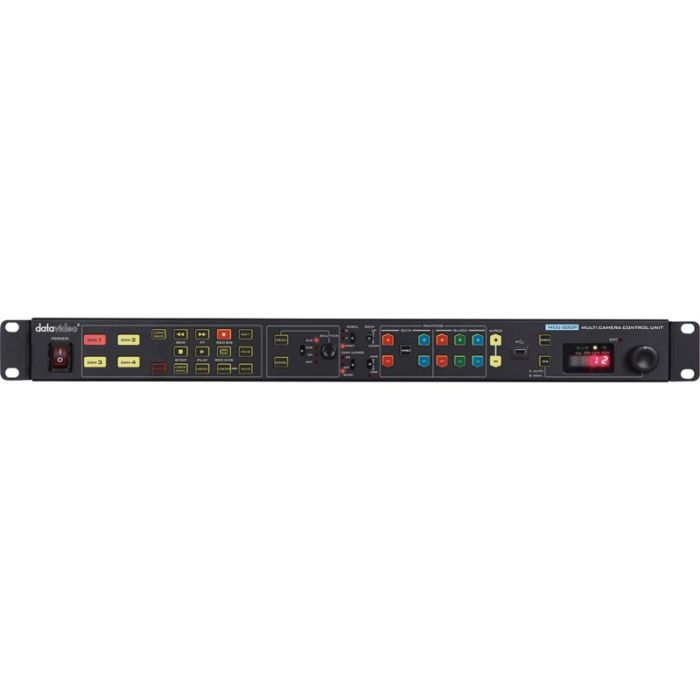

Datavideo MCU-200P Rackmount Multi-Camera Control Unit for Panasonic
- MCU-200 is a rack-mounted multiple camera controller to control Panasonic camcorders
- Provides major camcorder control functions and operations such as recording, gain, black/white balance, pedestals, shutter and iris
- Designed to control four camcorders from up to a 1000 metre distance over Ethernet cables
- Includes camera adapter boxes
- Affordable cable solution for the complete setup
- Dimensions: 440mm(W) x 49mm(H) x 140mm (D)
- Provides detail camcorder settings by CV output via adapter box
- MCU-100P handheld version available
The Datavideo MCU-200P is designed to control and configure up to four Panasonic cameras. It can control record and playback functions, user memory functions, shutter speed, iris, white balance, black level, and gain adjustments of the cameras.
Using the included four AD-1 adapters, the MCU-200P can connect up to four Panasonic cameras via individual RJ-45 connection.
Designed to be able to mount in a 19” rack, the MCU-200P is a great tool to have for outdoor productions where lighting exposure can be varied. The MCU-200P allows constant adjustment of image exposure and color balance of up to four cameras depending on the condition of the environment.
*Supported Panasonic Camcorder Models:
(dated January 4th, 2017. Models with an asterisk (*) are supported since firmware version 1.8)
- - AG-HPX255
- - AG-HPX300
- - AG-HPX301
- - AG-HPX302
- - AG-HPX304
- - AG-HPX370
- - AG-HPX370P
- - AG-HPX371
- - AG-HPX372
- - AG-HPX500
- - AG-HPX502
- - AG-HPX600
- - AG-HPX600P
- - AJ-HDX900
- - AJ-HPX2700
- - AJ-HPX2700G
- - AJ-HPX3000
- - AJ-HPX2000*
- - AG-HPX380
- - AG-HPX3100
- - AJ-PX800G
- - AJ-PX500
- - AG-HPX39
