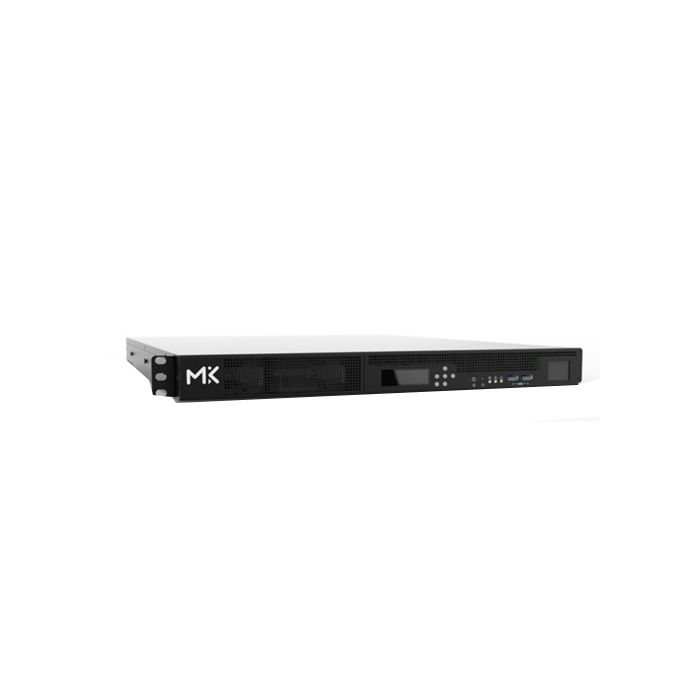

MediaKind MK RX1 Multi Codec Professional Edge processor

The MK RX1 is an edge device tailored to the specific requirements of contribution and distribution markets. As operators transition to 4K revenue-generating services, there is a growing demand for new IP infrastructure deployments. This enables the cost-effective and flexible carriage of high data rate content, while still retaining the reliability of traditional satellite connectivity.

With the MediaKind accelerator module, users can benefit from delivering high-quality, high-density, and low-latency content in a compact form-factor. The RX1 can function as a contribution decoder with 4:2:2 capability using the decoder card, or as a distribution device with 4:2:0 software decode or 4:2:0 transcode.

The RX1 offers a multitude of functions such as SRT and Zixi, which can be chained with the decode or transcode processes, providing a flexible framework to create customized flows within the RX1.

In a cloud ecosystem, the RX1 can transport content into and out of the cloud, adapting data to local networks. It is deployed in a rugged appliance with standard infrastructure including satellite input, ASI, and SDI. Additionally, it is future-proofed for the all-IP world, offering functions such as SRT input and output, Zixi Feeder/Receiver, and SMPTE ST 2110 output.

Features:

• Satellite* (DVB-S, DVB-S2/S2X), ASI* or IP input
• 4 x 3G / 12G SDI* and 1 x 3G SDI monitor port*
• SMPTE ST 2110 output** with SMPTE 2022-7*
• AMWA NMOS IS-04, IS-05
• SMPTE 2022-6 output*
• Quad 1GbE and Dual 10GbE, 25GbE IP I/O*
• MPEG-2, HEVC, MPEG-4 AVC, JPEG-XS
• SCTE 35 to SCTE 104
• 1080p compressed input converted to 1080i
output via SDI/SMPTE ST110
• Audio Lip-sync adjustment on decoded output
• Multichannel 4:2:2 or 4:2:0 decode using a
decoder accelerator card up to UHD resolution
with Low and Super Low latency
• UDH or 1080p HEVC HDR to SDR using the
decoder accelerator card (RX1 v17)
• Multichannel HD 4:2:0 channel 4:2:0 or 1 UHD
4:2:0 decode using SW (no acceleration required)
• BISS-1/E and BISS-CA*
• Director v5 and Director 6 decryption
• Dual CAM slots*
• Multiple Audio codecs
• Transport Stream passthrough
• PID filtering and remapping and Service level
Demux and Remux*
• Transcode from and to 4:2:0 codecs*
• Splicing local adverts upon SCTE-35*
• SRT Caller, listener mode*, Zixi feeder or receiver*
• Front panel control with confidence monitor
• Web based user interface, REST API
• Dual swappable power supplies
