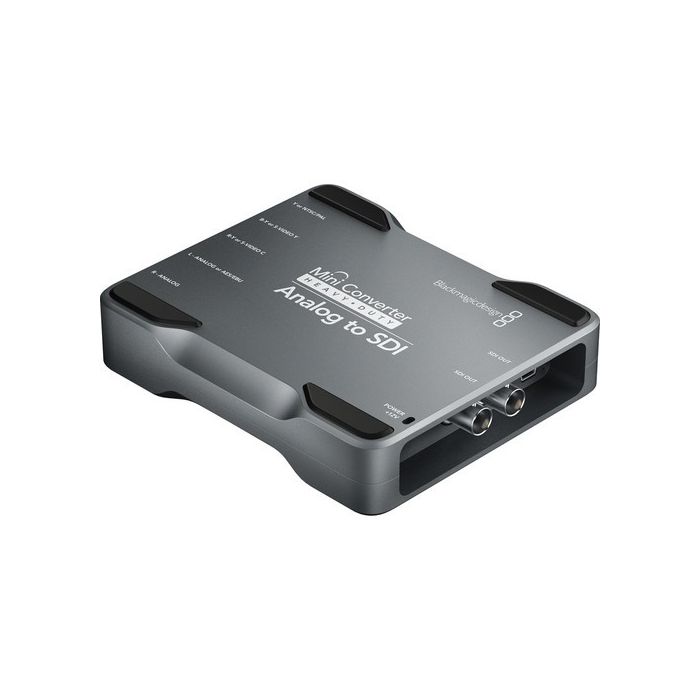

Mini Converter Heavy Duty - Analog to SDI

The Mini Converter Heavy Duty - Analog to SDI from Blackmagic Design is an extremely rugged device that accepts an HD/SD component, NTSC, PAL (composite), or S-Video signal and converts it to an SDI output (a second loop-through output is also provided). You can also choose to embed SDI audio from the balanced AES/EBU or L/R analog audio inputs. Use this device to convert video from sources such as Betacam SP, VHS, set-top boxes, HDV cameras, and other similar devices.

Converters in the Mini Converter Heavy Duty range are machined from a solid block of aircraft-grade aluminum and are generally designed to resist damage from rough use, whether outdoors or just in the course of live production. This super-strong Heavy Duty converter can withstand being run over by a truck and keep working. Its BNC and audio connections are protected by outcroppings of the aluminum body, unlike those on the standard Mini Converter line.

The converter features scratch-resistant laser-etched labeling, non-slip rubber feet, and a dust-resistant rubber boot that covers the mini configuration switches from dust and dirt.

Sophisticated Inputs

This Mini Converter features auto SD/HD switching, auto-switching AES/EBU and balanced analog audio on standard 1/4" jack connections, and advanced 3 Gb/s SDI technology

High-Quality SDI

Mini Converters are built to the highest quality standards with low SDI jitter. You get the longest SDI cable lengths combined with ultra-low-noise analog video and audio for a true broadcast-quality solution. You also get broadcast technology such as re-clocking and 3 Gb/s SDI. A loop-through SDI output is also provided for connecting to other devices

USB Upgrades

Upgrades can be loaded via the USB connection for future video format compatibility. Use Blackmagic's Converter Utility to make adjustments right from your laptop

Versatile Format Support

Mini Converters instantly switch between all SD and HD video formats whenever the video input changes. A huge range of standards are supported, including NTSC, PAL, 1080i59.94, 1080i50, 1080PsF/23.98, 720p59.94, and 720p50

Easy-to-Change Settings

With the Mini Converter's mini switches, it's as simple as using a pen to change the settings

International Power Supply

A high-quality, low-noise universal power supply is included with international socket adapters for all countries. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight and secure
