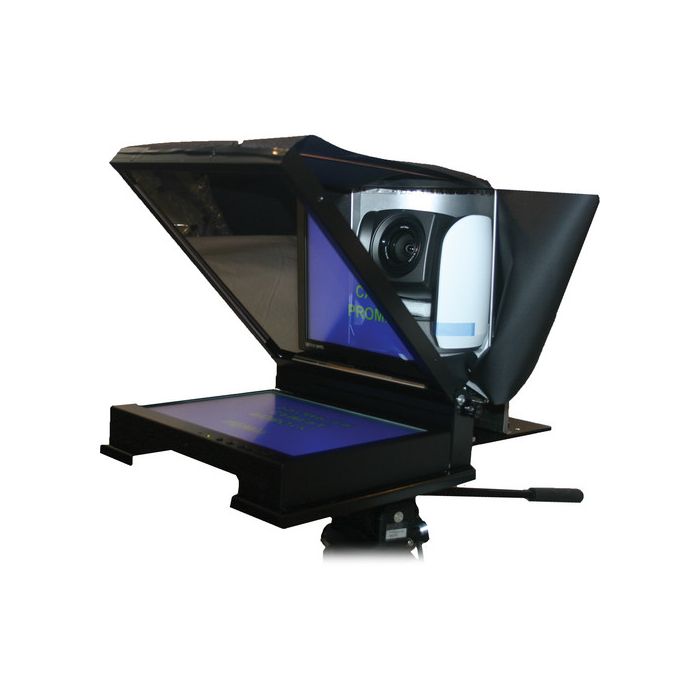

Mirror Image PT-160 Prompter for Pan/Tilt Cameras

SKU
PT-160 OS
$3,319.00

Product Highlights:

  • Use with Robotic Pan-and-Tilt Cameras
  • Screen Size: 15"
  • Inputs: VGA, Composite BNC, S-Video
  • Resolution: 640 x 480 to 1280 x 1024
  • Brightness: 450 Nits
  • Wide-Angle Trapezoid Beam Splitter
  • H & V Size and Position Scan Reverse

The PT-160 Prompter from Mirror Image comes with a 15" monitor and is designed for use with all-in-one robotic pan-and-tilt cameras, such as those from Panasonic and Sony. It's equipped with a special mount and hood that allow for select pan and capabilities. The PT-160 doesn't come with a prompting software but features an electronic reversal function that will reverse your prompting text for you with any prompting software you use.

  • VGA, Composite BNC, S-Video inputs
  • 640 x 480 to 1280 x 1024 resolution
  • 450 Nits brightness
  • Wide angle beam splitter trapezoid mirror
Write Your Own Review
You're reviewing:Mirror Image PT-160 Prompter for Pan/Tilt Cameras
Your Rating

Items Included:

  • Mirror Image PT-160 Prompter for Pan/Tilt Cameras
  • Hood & Mirror
  • Camera Mount Hardware
  • Limited 3-Year Warranty

PT-160 OS - Specification

More Information
General
Viewable Size:15" (38 cm)
Resolution:640 x 480 to 1280 x 1024
Brightness:450 Nits
Inputs:VGA, Composite BNC, S-Video
Video Input Impedance:.05 - 2.0 VP-P (Composite) 75 Ohm
Input Voltage:100 to 240 VAC, Auto 60 Hz - 12 VDC
Power Consumption:30 W Average
Mirror:16.5 x 15" (42 x 38 cm)
Packaging Info
Box Dimensions (LxWxH):24 x 24 x 18"
