Mobile Viewpoint Audio Report Live audio from a backpack

SKU
Audio Report
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • Bonds 4 LTE(4G)/fallback 3G connections
  • Remote controllable
  • Mic input
  • Uses existing Mobile Viewpoint infrastructure
  • Touchscreen with detailed network information

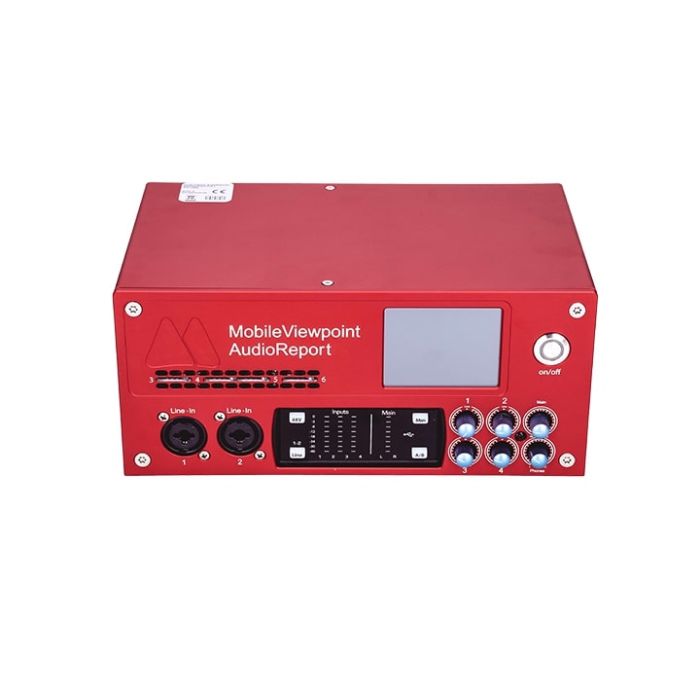

main product photo

With the WMT Audio Report, Mobile Viewpoint offers a professional IP based audio device for live radio reporting or as an ideal replacement for traditional ISDN set up.

With four balanced line and microphone inputs and 4 bonded LTE modems, the WMT AR is the best you can get for low delay audio reports using bonded 3G/4G connections.

The WMT AR is a combination of a high-quality audio amplifier and proven WMT bonding technology.

At the receiving end, the WMT playout will return the audio channel into analogue balanced audio. This is the same playout used for all other WMT devices. The playout also provides a talk backchannel (IFB) with individual volume control.

Write Your Own Review
You're reviewing:Mobile Viewpoint Audio Report Live audio from a backpack
Your Rating
Mobile Viewpoint Audio Report Brochure (Size: 710.8 KB)

Audio Report - Specification

More Information
INTERFACES:4-in or 4-out Mic/Inst/Line
2x Mic/Inst/Line with XMAX, class A preamps
2x Mic/Line with XMAX, class A preamps
2x Balanced 6.35mm jack main out
2x Balanced 6.35mm jack line out
1x stereo headphone
2x RJ-45
2x USB
6 LED level meters
Touchscreen
SUPPORTED ENCODING:AAC audio encoding
CONNECTIONS:4 Modems, LTE(4G), fallback 3G
WiFi
LAN
RECORDING:120 Gigabyte internal storage (can be more on request)
INTERNET CONNECTIVITY THROUGH DATA BONDING:WiFi hotspot
Access via ethernet interface
IP MANAGEMENT:10/100/1000 Base-T (combined with second ethernet port)
HARDWARE:Dedicated appliance 12-14 Volt
Weighs approximately 2.5 kg
24 x 11.1 x 15 cm (w x h x d)
INCLUDES:PSU 90-220 V AC to19 V DC
METERS, CONTROLS AND FEATURES:Direct monitoring
Cue mix A/B (for headphone output)
Front-panel level controls for main outputs
6 ladder-style LED level meters (4 input, 2 main output)
DIGITAL PERFORMANCE:Supported sample rates: 44.1, 48, 88.2, 96, 176.4 or 192 kHz
Converter resolution 24 bit
Converter dynamic range 114 dB
MICROPHONE INPUTS:Maximum level +16dBu (balanced, min gain)
Gain range 80 dB
Frequency response 20 Hz - 20 kHz (±0.15 dB, min gain, 48 kHz)
Dynamic range 114 dB (A-wtd, min gain)
THD + N 0.007% (1 kHz, -1 dBFS, min gain)
EIN -130 dBu (max gain, 150Ω, A-wtd)
Input impedance 1.6 kΩ
Phantom power +48 VDC (10 mA per channel
LINE INPUTS:Maximum level +22 dBu (balanced, min gain)
Gain range 40 dB
Frequency response 20 Hz - 20 kHz (±0.15 dB, min gain, 48 kHz)
Dynamic range 113.9 dB (A-wtd, min gain)
THD + N 0.007% (1 kHz, -1 dBFS, min gain)
Input impedance 10 kΩ
INSTRUMENT INPUTS:Maximum level +15 dBu (unbalanced, min gain)
Gain range 80 dB
Frequency response 20 Hz - 20 kHz (±0.1 dB, 48 kHz, min gain)• Dynamic range 114.7 dB (A-wtd, min gain)
THD + N 0.012% (1 kHz, -1 dBFS, min gain)
Input impedance 1 MΩ
LINE OUTPUTS:Type ¼” TRS Female, DC Coupled
Maximum level +18 dBu (balanced)
Frequency response 20Hz - 20kHz (±0.2 dB, unity gain, 48 kHz)
Dynamic range 109 dB (A-wtd)
THD + N 0.001% (1 kHz, -1 dBFS) (Main outputs), 0.0015% (1 kHz, -1 dBFS) (Outputs 3 and 4)
AERIALS (OPTIONAL):Dome antenna: omnidirectional antenna array 3dBi
ADDITIONAL ACCESSORIES:Custom made backpack
