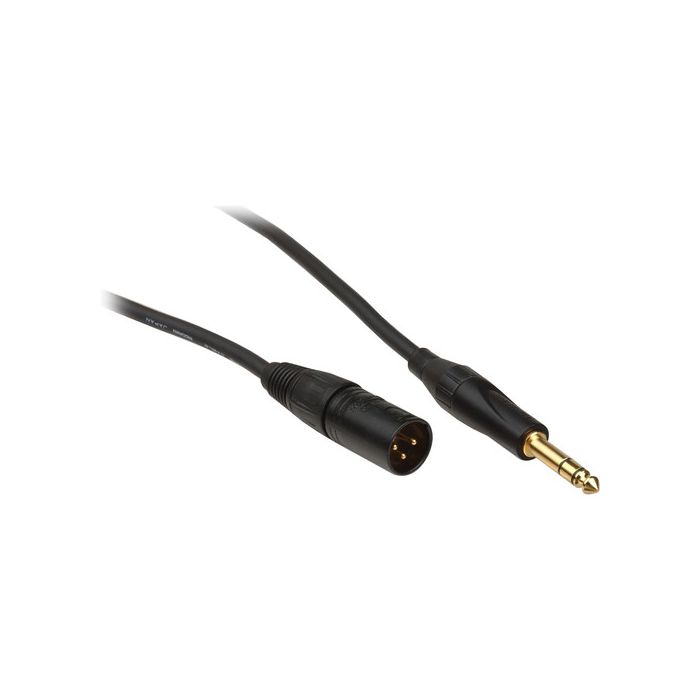

Mogami Gold 1/4" TRS Male to XLR Male Balanced Patch Cable (3')

SKU
GOLDTRSXLRM03
Request for Price

Product Highlights:

  • Preserves Quality of Audio Signal
  • Gold-Plated 1/4" TRS Male Connector
  • Gold-Plated XLR Male Connector
  • Balanced Connection

The Mogami Gold 1/4" TRS Male to XLR Male Balanced Patch Cable is a high-quality 4-conductor patch cable for studio use. Neglex Studio Quad #2534 cabling is used for improved clarity and freedom from noise and RF interference. This cable is terminated with black-body 1/4" TRS and 3-pin XLR male connectors, with gold-plated contacts.

Neglex-type Quad Cables have been developed for the highest-quality recording applications where maximum definition of recorded sound is of critical importance. Special proprietary materials & construction methods make these mic cables an excellent choice for direct-to-DISC and digital recording. Basic matters of flexibility, microphonics, and shielding effect have been engineered to meet international professional requirements.

The cable's balanced quad structure is effective for high-definition sound transmission and for canceling electromagnetic induction caused by nearby equipment such as floodlight projection, making the cable ideal for motion picture and TV studio applications.

  • XLPE (Cross-Linked Polyethylene) conductor insulation has excellent electrical characteristics and prevents shrink-back during soldering
  • Served (spiral) bare-copper shield for superior sound quality and silent background

GOLDTRSXLRM03 - Specification

More Information
General
Connector 1:1 x 1/" TRS Male Straight Black & Gold
Connector 2:1 x 3-Pin XLR Male Black & Gol
Contact Plating:Gold
Cable Length:3' / 0.91
Conductor Material:Oxygen-Free Copper (OFC)
Number of Conductors:4
Wire Gauge:24 AWG
Outer Diameter:0.236" / 5.99 m
Jacket Type:Polyvinyl Chloride (PVC)
Shielding:Bare Copper Spiral
Insulation Type:Polyethylene
Conductor Capacitance:29.6 pF/ft at 1 kHz
Packaging Info
Package Weight:0.32 lb
Box Dimensions (LxWxH):9.25 x 7.9 x 1"

Items Included:

  • Mogami Gold 1/4" TRS Male to XLR Male Balanced Patch Cable (3')
  • Limited Lifetime Warranty
