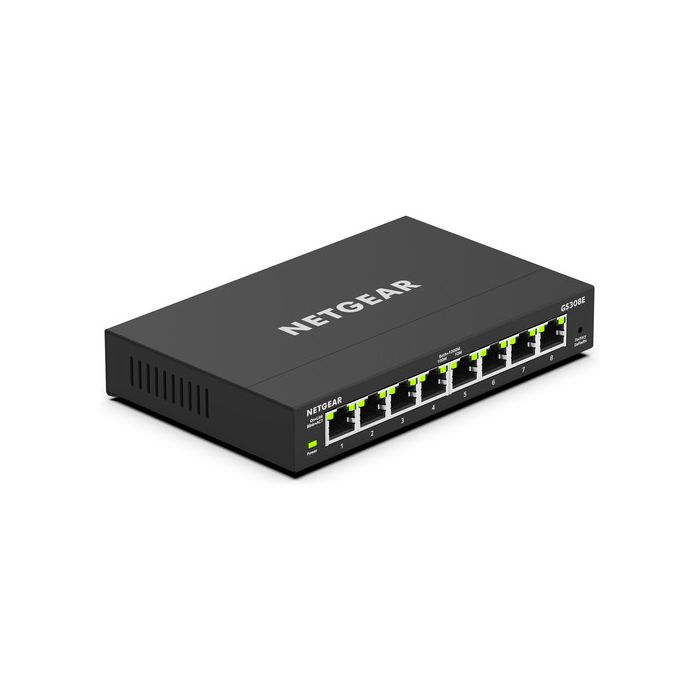

Netgear GS308E 8-Port Gigabit Managed Switch

SKU
GS308E-100NAS
Request for Price

Product Highlights:

  • 8 x Gigabit Ethernet Ports
  • 16 Gb/s Switching Capacity
  • Desktop Design
  • Web Browser-Based Management
  • QoS Traffic Prioritization
  • Auto Denial-of-Service Prevention
  • Plug-and-Play Design

Use the Netgear GS308E 8-Port Gigabit Managed Switch to expand the capacity of your home or small office network. Featuring eight Gigabit Ethernet ports with a 16 Gb/s switching capacity with a 192kB buffer, you can add devices such as computers, IP cameras, network storage, smart televisions, and video game consoles directly to the managed desktop switch using reliable wired connections. Its plug-and-play design makes it easy to grow your network using the switch. Additionally, you can manage the switch through a web browser or a PC-based application to configure up to 32 VLANS, conduct cable tests, set up port mirroring, and more. The GS308E switch has built-in automatic denial-of-service (DoS) attack prevention, storm controls, and rate limiting for optimized bandwidth management.

Management Features
  • System password
  • Web browser-based management
  • PC-based management Utility
  • Port mirroring
  • Many-to-one port mirroring with seven source ports
  • Cable test utility
  • Config download to switch through Plus utility
  • Config upload to server
Quality of Service Features
  • Rate limiting
  • IEEE 802.1p COS
  • Port-based VLAN
  • Weighted Round Robin (WRR)
  • Strict Priority queue
VLAN Support
  • Support for up to 32 VLANs
  • IEEE 802.1Q VLAN tagging
  • Support for port-based VLAN tagging
Multicast Filtering
  • Supports up to 128 multicast groups
  • IGMP snooping v1, v2, and v3
  • Blocks unknown multicasts
IEEE Standards
  • IEEE 802.3 Ethernet
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab 1000BASE-T
  • EEE 802.1p Class of Service
  • IEEE 802.1Q VLAN tagging
  • IEEE 802.3x full-duplex flow control
Write Your Own Review
You're reviewing:Netgear GS308E 8-Port Gigabit Managed Switch
Your Rating

Items Included:

  • Netgear GS308E 8-Port Gigabit Managed Switch
  • Power Cord
More Information
SPECS
Interfaces Inputs/Outputs 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console)
Protocols Layer Services Supported Layer 2 Support, Layer 3 Support
  Supported Protocols IGMP Snooping
Port Mirroring
  Queuing Strict Priority, Weighted Round Robin (WRR)
  Transmission Method Store-and-Forward
  Jumbo Frames Support 9000 Bytes
  MAC Address Table Size 4K
  Multicast Groups 128
  VLAN IDs 32
Security Security Features DoS Attack Prevention
Storm Control

Standards

Supported IEEE Standards 802.1p, 802.1q, 802.3, 802.3ab, 802.3u, 802.3x
Performance Switching Bandwidth 16 Gb/s
  Packet Buffer 192 kB
Electrical Power Supply Type Internal
Environmental Operating Temperature 32 to 104°F / 0 to 40°C
  Operating Humidity 90%
  Storage Temperature -4 to 158°F / -20 to 70°C
  Storage Humidity 95%
  Operating Altitude 10,000' / 3048 m
  Storage Altitude 10,000' / 3048 m
  Noise Level 0.0 dB
General Cooling System Fan
  Mean Time Between Failures (MTBF) 1,638,156 Hours
  Indicator Lights Link/Activity/Speed, System
  Dimensions 6.22 x 3.98 x 1.14" / 158 x 101 x 29 mm
  Weight 1.1 lb / 0.5 kg
Packaging Info Package Weight 1.635 lb
  Box Dimensions (LxWxH) 7.4 x 5.25 x 4.15"
