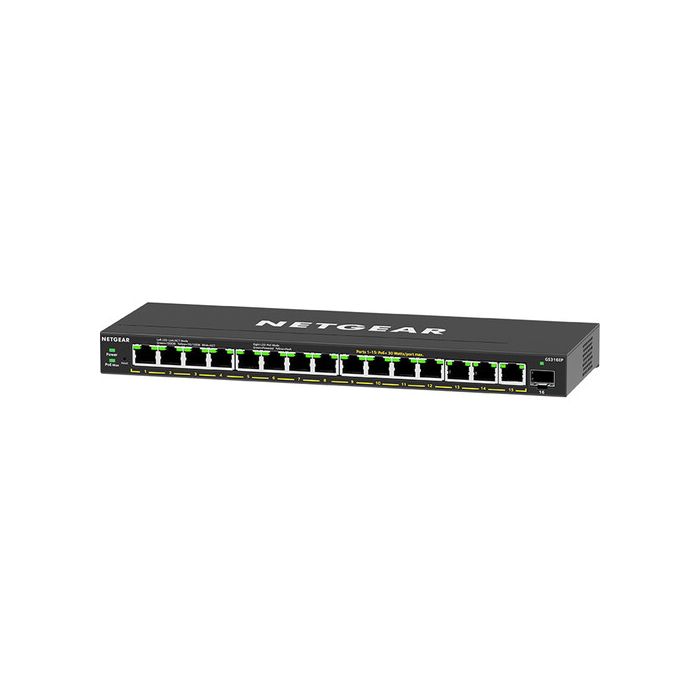

Netgear GS316EP 16-Port Gigabit PoE+ Compliant Unmanaged Switch with SFP

SKU
GS316EP-100NAS
Request for Price

Product Highlights:

  • 16 x Gigabit Ethernet Ports
  • 15 x PoE+ Compliant Ports
  • 1 x Gigabit SFP Port
  • 32 Gb/s Switching Capacity
  • Desktop Design
  • Includes Wall Installation Kit
  • Passive Cooling
  • Plug-and-Play

Quickly expand your small home or business network to support computers, storage, smart TVs, and more with the Netgear GS316EP 16-Port Gigabit PoE+ Compliant Unmanaged Switch. Featuring 15 PoE+ compliant Gigabit Ethernet ports with a 180W budget, this unmanaged switch is designed to grow your network with support for powered devices such as IP cameras, VoIP phones, and access points. There is also one Gigabit Ethernet port available in addition to a Gigabit SFP port for fiber uplinks. Its 32 Gb/s switching capacity helps to ensure smooth data transfers while support for VLAN traffic segmentation helps to secure access for connected devices. Simply connect the switch to your router and use the web-based configuration utility to get set up. No additional hardware devices or software drivers are required. Other features include QoS traffic prioritization for optimized audio and video communications and DoS attack prevention. The GS316EP has a fanless design with a metal chassis that allows it to operate silently when mounted onto a desktop or wall using the included kit so that it won't disturb your working environment.

Power over Ethernet

Featuring 15 PoE+ compliant Gigabit Ethernet ports with a 180W budget, the GS316EP can transfer both power and data with compatible devices. The integrated power management system allows you to enable or disable power for each port, limit the PoE power per port, and more. The PoE power stays on during firmware updates to provide an uninterrupted experience.

VLAN Support

Configure up to 64 VLANS to separate traffic and permissions into different groups.

Reliable Multicasts

The GS316EP supports up to 128 multicast groups, with features such as IGMP Snooping, rate limiting for bandwidth allocation, and Quality of Service (QoS) traffic prioritization to help ensure smooth video and audio traffic. Unknown multicasts can be blocked.

Security Features

Auto DoS (Denial-of-Service) attack prevention, Storm Control, Port Mirroring, and other features help to protect your network from attacks.

Diagnostics

Quickly troubleshoot connections with the cable testing utility.

Link Aggregation

Combine up to eight ports using link aggregation to enhance the bandwidth and support multi-Gig connections to compatible devices.
Write Your Own Review
You're reviewing:Netgear GS316EP 16-Port Gigabit PoE+ Compliant Unmanaged Switch with SFP
Your Rating

Items Included:

  • Netgear GS316EP 16-Port Gigabit PoE+ Compliant Unmanaged Switch with SFP
  • Power Adapter
  • Wall Installation Kit
  • Rubber Feet
  • 90-Day Technical Support
  • Limited 5-Year Manufacturer Warranty
  • Limited 90-Day Manufacturer Warranty (Technical Support)
More Information
SPECS
Interfaces Inputs/Outputs 15 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 10/100/1000 Mb/s Gigabit SFP
Protocols Layer Services Supported Layer 2 Support, Layer 3 Support
  Supported Protocols Auto-MDIX/MDI
IGMP Snooping
Link Aggregation
Port Mirroring
  Queuing Weighted Round Robin (WRR)
  Transmission Method Store-and-Forward
  Jumbo Frames Support 10,000 Bytes
  MAC Address Table Size 4K
  Multicast Groups 128
  VLAN Groups 64
Security Security Features DHCP Snooping
DoS Attack Prevention
Storm Control
Standards Supported IEEE Standards 802.1p, 802.1q, 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x
Performance Switching Bandwidth 32 Gb/s (Non-Blocking)
  Packet Buffer 192 kB
Electrical PoE Power Budget 180 W
  PoE per Port 30 W
  Power Supply Type External
Environmental Operating Temperature 32 to 72°F / 0 to 40°C
  Operating Humidity 90%
  Storage Temperature -4 to 158°F / -20 to 70°C
  Storage Humidity 95%
  Operating Altitude 10,000' / 3048 m
  Storage Altitude 10,000' / 3048 m
General Cooling System Passive
  Mean Time Between Failures (MTBF) 784,742 Hours
  Material of Construction Metal
  Indicator Lights Link/Activity/Speed, PoE, Power
  Dimensions 11.3 x 4 x 1.1" / 286 x 102 x 27 mm
  Weight 1.95 lb / 0.88 kg
Packaging Info Package Weight 5.215 lb
  Box Dimensions (LxWxH) 13.7 x 6.8 x 4.9"
