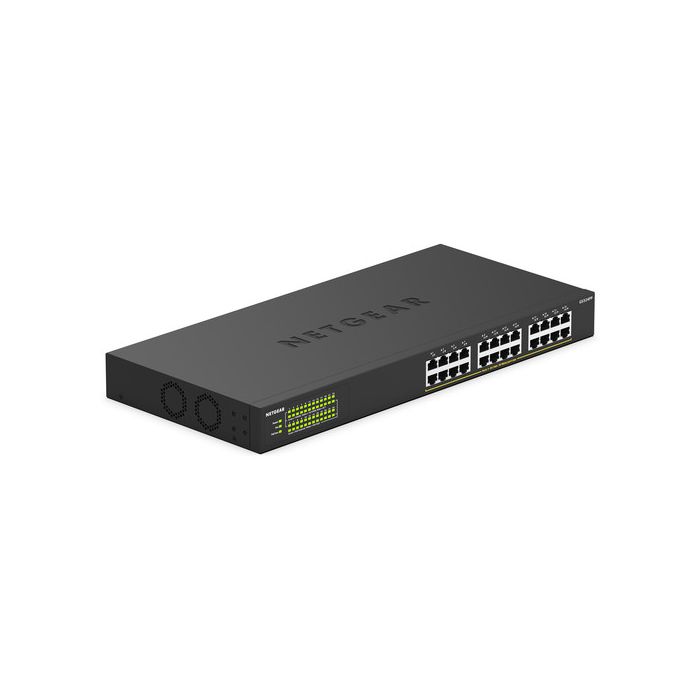

Netgear GS324PP 24-Port Gigabit PoE-Compliant Unmanaged Switch

SKU
GS324PP-100NAS
Request for Price

Product Highlights:

  • 24 x Gigabit Ethernet Ports
  • 24 x PoE-Compliant Ports
  • 48 Gb/s Switching Capacity
  • 1.44 Mpps Forwarding Capacity
  • Desk- and Wall-Mountable Design
  • Auto-MDI/MDIX Support
  • 802.1p QoS
  • Fanless Design
  • Plug-and-Play

Boost the switching capacity of your small business with the GS324PP 24-Port Gigabit PoE-Compliant Unmanaged Switch. Capable of up to 48 Gb/s of total switching bandwidth and a 1.44 Mpps forwarding rate, this desk- and wall-mountable unmanaged switch comes equipped with 24 Gigabit Ethernet ports. The ports support PoE (Power over Ethernet) with a 380W power budget, ideal for powering IP cameras, VoIP phones, wireless access points, and other PoE-capable devices.

Support for the Energy-Efficient Ethernet standard helps the plug-and-play switch to conserve power, while auto-MDI/MDIX support eliminates the need for crossover cables. The switch's 802.1p QoS capabilities allow for traffic prioritization, while its fanless design helps to ensure quiet operation.

  • LED indicators for ease of use
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Durable and rugged metal case
  • Ideal for small office and home networks
  • Standards-based technology helps to ensure interoperability with standards-based devices in the existing network
  • Auto power down
  • Short cable detection
Write Your Own Review
You're reviewing:Netgear GS324PP 24-Port Gigabit PoE-Compliant Unmanaged Switch
Your Rating

Items Included:

  • Netgear GS324PP 24-Port Gigabit PoE-Compliant Unmanaged Switch
  • Power Cable
  • Wall Mount Kit
More Information
SPECS
Interfaces Inputs/Outputs 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE
Protocols Supported Protocols Auto-MDIX/MDI
MAC Filtering
  Queuing Weighted Round Robin (WRR)
  Jumbo Frames Support 10,000 Bytes
  MAC Address Table Size 8K
Standards Supported IEEE Standards 802.3, 802.3ab, 802.3az, 802.3i, 802.3u
Performance Latency 4 µs
  Forwarding Rate 1.44 Mpps
  Switching Bandwidth 48 Gb/s (Non-Blocking)
  Packet Buffer 192 kB
Electrical Power Draw 400.00 W (Active)
10.00 W (Standby)
  AC Input Power 100 to 240 VAC, 50 / 60 Hz at 8 A
  PoE Power Budget 380 W
  PoE per Port 30 W
  Power Supply Type Internal
Environmental Operating Temperature 32 to 113°F / 0 to 45°C
  Operating Humidity 10 to 90%
  Storage Temperature -4 to 158°F / -20 to 70°C
  Storage Humidity 10 to 95%
  Operating Altitude 10,000' / 3048 m
General Cooling System Fan
  Mean Time Between Failures (MTBF) 667,762 Hours
  Material of Construction Metal
  Indicator Lights Fan, Link/Activity/Speed, PoE, Power
  Dimensions 13 x 8.1 x 1.7" / 330 x 206 x 43 mm
  Weight 5.38 lb / 2.44 kg
Packaging Info Package Weight 9.03 lb
  Box Dimensions (LxWxH) 20.7 x 11.9 x 4.1"
