Neumann KH 420 - 3-Way Active Studio Monitor

Neumann
SKU
KH 420
image-icon
$5,250.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • 10" Long Throw Woofer
  • 3" Fabric Dome Midrange
  • 1" Alloy Fabric Dome Tweeter
  • 295/130/130W Class AB Amplifiers
  • Flow-Optimized Bass Reflex Ports
  • Elliptical Math Modeled Dispersion
  • Fast-Acting Independent Thermo Limiters
  • Acoustical Controls and Parametric EQ
  • Ground Lift
  • Magnetically Shielded

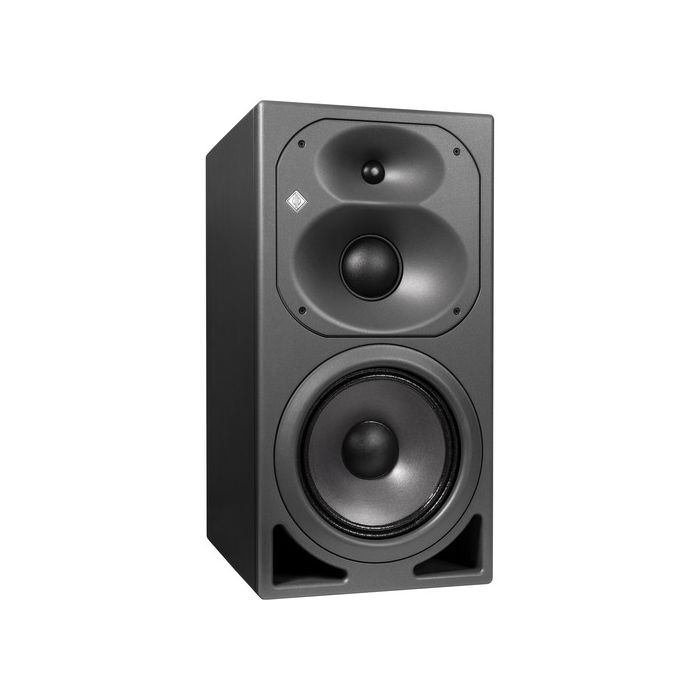

main product photo

The KH 420 from Neumann is a three-way active monitor designed for use as a mid-field or main monitor, and can be used free-standing or flush mounted into a wall. It is particularly well-suited for use in music, broadcast, and post production studios for tracking, mixing and mastering, and in multi-channel systems can be mixed freely with other loudspeakers in the range.

In-house computer optimized drivers, a waveguide featuring Mathematically Modeled Dispersion (MMD), flexible acoustical controls, various input options and an extensive mounting hardware range allow the KH 420 to be used in diverse acoustical conditions, with any source equipment, and in a wide variety of physical locations.

Computer mechanically modeled three-way cabinet design using Low Resonance Integral Molding (LRIM) materials
In-house simulated magnetically shielded drivers
Alloy fabric dome tweeter with built-in grille
Fabric dome, neodymium magnet, midrange driver
Long throw bass driver with Extremely Linear Force Factor (ELFF) and flow optimized die cast basket
High-capacity flow-optimized bass reflex ports with pipe damped
Elliptical Mathematically Modeled Dispersion (MMD) waveguide, with wide horizontal and narrow vertical dispersion
Electronics panel with dimensioned integrated Accelerated Heat Tunneling (AHT) heat sink
Analog class AB amplifiers with large headroom and overheat limiting
Fast-acting independent thermo limiters for woofer, midrange dome and tweeter to protect the voice coils
Woofer soft clip and excursion limiters
Four-position bass, low-mid and treble acoustical controls and easy to use parametric equalizer
Wide range input gain and output level controls
Ground lift
Individual hand-alignment in final test
Fully documented extensive mounting hardware options (hardware sold separately)
Write Your Own Review
You're reviewing:Neumann KH 420 - 3-Way Active Studio Monitor
Your Rating

Items Included:

  • Neumann KH 420 - 3-Way Active Studio Monitor
  • 3 x AC Power Cables
  • Limited 1-Year Manufacturer Warranty
More Information
SPECS
Key Specs
Monitor Type & Configuration
Active 3-Way
Total Power Output
555 W RMS / 610 W Peak
Tweeter
1x 1" / 25.4 mm Dome
Midrange
1x 3" / 7.6 cm Cone
Woofer
1x 10" / 26.5 cm Cone
Frequency Range
26 Hz to 22 kHz ± 3 dB
Audio I/O
1x XLR 3-Pin Balanced Input
Digital Audio I/O
No
Network I/O
No
Wireless
No
Number of Included Monitors
Single Monitor
Enclosure
Bass-Reflex/Ported, Shielded
Total Power Output
555 W RMS / 610 W Peak
Drivers
Tweeter
1x 1" / 25.4 mm Dome
Midrange
1x 3" / 7.6 cm Cone
Woofer
1x 10" / 26.5 cm Cone
Amplifiers
HF: 130 W / 140 W Peak Class-AB
MF: 130 W / 140 W Peak Class-AB
LF: 295 W / 330 W Peak Class-AB
Performance
Frequency Range
26 Hz to 22 kHz ± 3 dB
Frequency Response
28 Hz to 20 kHz ± 2 dB
Maximum Sound Pressure Level (SPL)
122.4 dB
Total Harmonic Distortion (THD)
0.5%
Analog Input Sensitivity/Gain
+4 to -12 dB (Continuously Variable)
Self-Generated Noise
Less Than 20 dBA (at 3.93" / 10 cm)
Protections and Limiting
Excursion Limiter, Peak Limiter, and Thermal Limiting
Signal Processing
EQ
1x LF Shelf: -7.5 to 0 dB (2.5 dB Increments)
1x Mid Notch/Peak: -4.5 to 0 dB (1.5 dB Increments)
1x HF Shelf: -2 to +1 dB (1 dB Increments)
Parametric EQ
-12 to +4 dB Between 25Hz and 80Hz, Q: 1 to 8
-12 to +4 dB Between 50Hz and 160Hz, Q: 1 to 8
-12 to +4 dB Between 100Hz and 320Hz, Q: 1 to 8
Crossover Frequency
Low-Pass: 570 Hz, 24 dB/Octave Slope
High-Pass: 2 kHz, 24 dB/Octave Slope
Connectivity
Audio I/O
1x XLR 3-Pin Balanced Input
Digital Audio I/O
No
Network I/O
No
USB
No
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
Power Consumption
60 W (Standby)
800 W (Maximum)
Physical
Color
Black
Monitor Orientation
Vertical
Enclosure Material
Aluminum, Metal Grille, Wood
Mounting Points
8x M5 (Rear Panel)
Operating Temperature
50 to 104°F / 10 to 40°C
Operating Humidity
90%
Storage Temperature
-13 to 158°F / -25 to 70°C
Dimensions (W x H x D)
13 x 25.4 x 17.5" / 330 x 645 x 444 mm
Weight
77.2 lb / 35.0 kg
Packaging Info
Package Weight
90 lb
Box Dimensions (LxWxH)
30.2 x 24.25 x 23.4"
