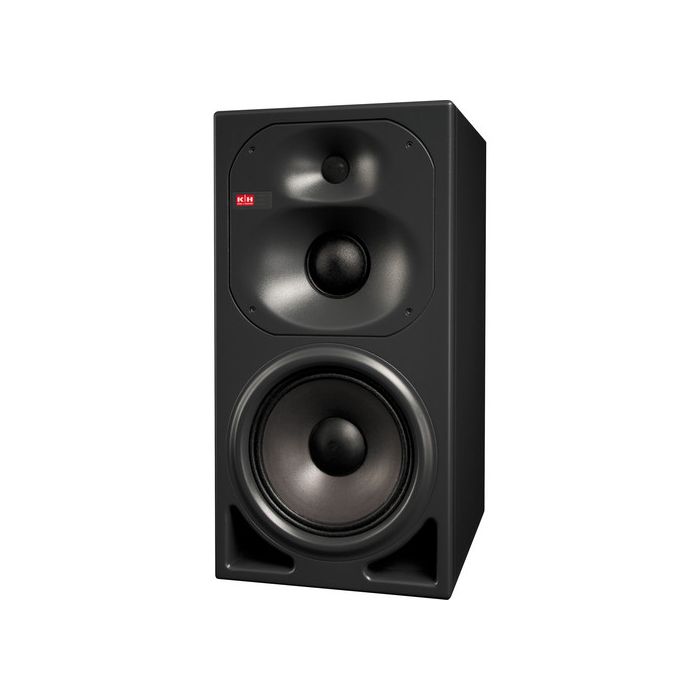

Neumann O 410 Tri-Amped Active Studio Monitor

SKU
O 410
$4,899.95

Product Highlights:

  • 3-Way Amplifier
  • Woofer, Midrange Drive, and Tweeter
  • Independent High/Mid/Low Limiters
  • Parametric EQ Acoustical Controls
  • Active 3-Way Crossover
  • Vented Enclosure Extends Bass Response
  • Free Standing or Wall Flush Mountable

The Neumann O 410 Tri-Amped Active Studio Monitor is a three-way studio monitor that features Neumann's proprietary Mathematically Modeled Dispersion, or MMD, Waveguide, which controls wave dispersion. The Waveguide was first designed mathematically, then physically built and tested under anechoic conditions to verify theoretical performance. By controlling the directivity of the waves, the O 410's Waveguard decreases early reflections and widens the useable listening area. This widens what many audio engineers refer to as the sweet spot, or place in front of your monitors where the speaker output is most optimal. The Waveguard houses both the midrange and treble drivers, and can be rotated to allow for horizontal or vertical mounting of the O 410.

Designed to be able to compensate for different environments, the O 410 features bass, mid, and treble control knobs as well as a low end parametric EQ to tweak 20Hz to 200Hz. These EQ options allow you to tune the speakers to compensate for the acoustics of your room.

The O 410 houses a one-inch titanium/fabric dome tweeter, a three-inch soft dome midrange driver, and a ten inch woofer.

Extremely low harmonic and intermodulation distortion results in clean sounding audio reproduction
Structural resonances avoided using LRIM, or Low Resonance Integral Molding
Wide horizontal directivity gives increased freedom of movement along the mixing console while narrow vertical directivity reduces the effect of early reflections off the console surface
The Mathematically Modeled Dispersion Waveguide can be rotated to accommodate horizontal or vertical mounting
Transformer balanced input stage (TIM 1) is equipped with a special distortion reduction crossover function
Electronics can be remotely accessed when the cabinet is flush mounted with accessories
Integrated electronic limiter for each driver
Active three-way crossover with 24 dB/octave slopes
Display for power on and protect is integrated into the MMD, together with a logo with a dimmer knob
Accelerated Heat Tunneling ensures effective amplifier cooling whether the cabinet is mounted vertically or horizontally
Electronics can be remotely powered on with two modes of operation (0 V and 12 V trigger)
Optional 24-bit, 192 kHz digital input stage available
Design results in low self-generated noise
Write Your Own Review
You're reviewing:Neumann O 410 Tri-Amped Active Studio Monitor
Your Rating

Items Included:

  • Neumann O 410 Tri-Amped Active Studio Monitor
  • Power Cable
  • Trimmer and Switch Screwdriver
  • Limited 1-Year Manufacturer Warranty
More Information
SPECS
Key Specs
Monitor Type & Configuration
Active 3-Way
Total Power Output
680 W RMS / 800 W Peak
Tweeter
1x 1" / 25 mm Titanium/Fabric Dome
Midrange
1x 3" / 7.6 cm Cone
Woofer
1x 10" / 26.5 cm Cone
Frequency Range
30 Hz to 24 kHz ± 3 dB (-3 dB)
Audio I/O
1x XLR 3-Pin Balanced Input (13 Kilohms)
Digital Audio I/O
No
Network I/O
No
Wireless
No
Number of Included Monitors
Single Monitor
Enclosure
Bass-Reflex/Ported, Shielded
Total Power Output
680 W RMS / 800 W Peak
Drivers
Tweeter
1x 1" / 25 mm Titanium/Fabric Dome
Midrange
1x 3" / 7.6 cm Cone
Woofer
1x 10" / 26.5 cm Cone
Amplifiers
HF: 180 W / 210 W Peak
MF: 160 W / 190 W Peak
LF: 340 W / 400 W Peak
Performance
Frequency Range
30 Hz to 24 kHz ± 3 dB (-3 dB)
Frequency Response
32 Hz to 20 kHz ± 2 dB
Maximum Sound Pressure Level (SPL)
121.8 dB
Total Harmonic Distortion (THD)
0.1%
Maximum Input Level
+19 dBu
Analog Input Sensitivity/Gain
+6 to -9 dB (Continuously Variable)
Self-Generated Noise
Less Than 25 dBA (at 3.93" / 10 cm)
Protections and Limiting
3-Way Limiter
CMRR
60 dB
Signal Processing
EQ
1x LF Shelf: -7.5 to 0 dB (2.5 dB Increments)
1x Mid Notch/Peak: -4.5 to 0 dB (1.5 dB Increments)
1x HF Shelf: -2 to +1 dB (1 dB Increments)
Filters
High-Pass at 15 Hz, 12 dB/Octave Slope
Parametric EQ
-12 to +4 dB Between 20Hz and 200Hz, Q: 1 to 8
Crossover Frequency
Low-Pass: 600 Hz, 24 dB/Octave Slope
High-Pass: 2 kHz, 24 dB/Octave Slope
Connectivity
Audio I/O
1x XLR 3-Pin Balanced Input (13 Kilohms)
Digital Audio I/O
No
Network I/O
No
USB
No
Wireless
No
Power
AC Input Power
100 VAC, 50/60 Hz
120 VAC, 60 Hz
230 VAC, 50 Hz
Power Consumption
36 W (Idle)
1300 W (Maximum)
Physical
Color
Black
Monitor Orientation
Vertical
Mounting Points
8x M5 (Rear Panel)
Operating Temperature
50 to 104°F / 10 to 40°C
Dimensions (W x H x D)
13 x 25 x 18" / 33 x 65 x 44 cm
Weight
79.0 lb / 36.0 kg
