Neumann U 67 Set Large-Diaphragm Tube Condenser Microphone

Neumann
SKU
U 67 SET
image-icon
$7,895.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • Reissue of Vintage U 67 Microphone
  • 3 Selectable Polar Patterns
  • Omnidirectional, Cardioid, and Figure-8
  • Large-Diaphragm K 67 Condenser Capsule
  • EF86 Tubes
  • 20 Hz to 20 kHz Frequency Response
  • Switchable Low-Cut Filter
  • Selectable Pad to Prevent Distortion
  • Includes Shockmount and Power Supply
  • Includes Aluminum Case

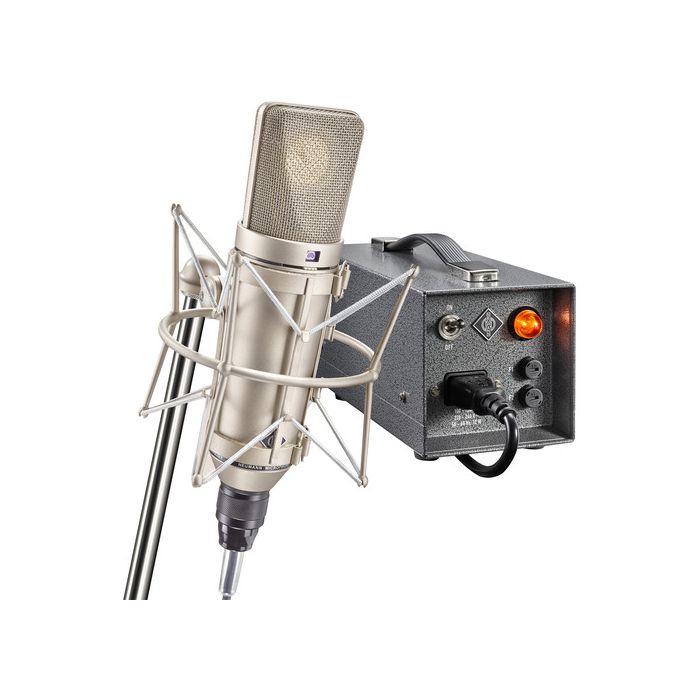

main product photo

The nickel Neumann U 67 Set is a large-diaphragm tube condenser microphone designed as a faithful reissue of the legendary vintage U 67 for vocalists, musicians, and recording engineers in home, project, and commercial studios. It features the venerable K 67 capsule, a BV 12 output transformer, and EF86 tubes that are prudently chosen for ideal sonic characteristics.

Its three selectable polar patters, omnidirectional, cardioid, and figure-8, provide versatility for both close and distant miking configurations. A -10 dB pad raises the maximum SPL from 114 dB to 124 dB, allowing you to record loud sound sources without distortion. The 20 Hz to 20 kHz frequency response can be tailored to counteract proximity effect via the switchable low-cut filter.

The U67 Set ships with a matching shockmount, proprietary XLR 7-pin cable, and redesigned power supply in a sturdy aluminum case.

True to the Original

Sonically, this reissue is identical to the U 67 made from 1960 to 1971; It uses the same capsule and electronic design. Key parts, such as the BV 12 output transformer, are meticulously reproduced according to original documentation. EF86 tubes are carefully selected for optimal characteristics and lowest noise in a dedicated measurement facility. The power supply was redesigned to meet today's strict safety requirements and to accommodate the slightly higher filament current of newer premium grade tubes. The new power supply NU 67 V is fully compatible with older U 67 microphones.

Quality Engineering

The U 67 was the first microphone equipped with the famous K 67 capsule, which has since become associated with the Neumann sound, and continues to be used in its successor, the U 87 A. No less important is the U 67's masterful tube circuit featuring a clever pre-emphasis/de-emphasis scheme to minimize tube hiss. The U 67 was also the first microphone to address modern recording techniques such as close miking. Its switchable low-cut filter compensates for the proximity effect occurring at short recording distances. Using its -10 dB pad, the U 67 can handle high sound pressure levels of up to 124 dB without distortion (and much more if you don't mind a bit of "tube grit").

Ready for the Studio

The U67 Set includes a matching shockmount, power supply, and proprietary 7-pin XLR cable. The mic and its accessories fit snugly in the supplied aluminum carry case.

Write Your Own Review
You're reviewing:Neumann U 67 Set Large-Diaphragm Tube Condenser Microphone
Your Rating

Items Included:

  • Neumann U 67 Set Large-Diaphragm Tube Condenser Microphone
  • Neumann Z48 - Microphone Clamp
  • Neumann NU 67 V Power Supply for U67 Microphone
  • Neumann UC 5 Microphone Connection Cable for U 67 Microphone (Black, 32.8')
  • Aluminum Case
  • Limited 2-Year Manufacturer Warranty
More Information
SPECS
Key Specs
Polar Pattern
Cardioid / Figure-8 / Omnidirectional
Element Type
Condenser
Controls
Polar Pattern, Pad, Low Cut/HPF
Frequency Response
20 Hz to 20 kHz
Maximum SPL
124 dB (with Pad)
Analog Output
1x XLR 7-Pin (on Mic)
1x XLR 3-Pin (on Power Supply)
Power Sources
External PSU
Microphone
Polar Pattern
Cardioid / Figure-8 / Omnidirectional
Element Type
Condenser
Sound Field
Mono
Orientation
Side Address
Controls
Polar Pattern, Pad, Low Cut/HPF
Pad
-10 dB
Circuitry
Tube (EF86)
Performance
Frequency Response
20 Hz to 20 kHz
Maximum SPL
124 dB (with Pad)
Sensitivity
15 mV/Pa (Omni)
24 mV/Pa (Cardioid)
16 mV/Pa (Figure-8)
Equivalent Noise Level
32 dB (Omnidirectional, CCIR)
21 dB (Omnidirectional, A-Weighted)
28 dB (Cardioid, CCIR)
17 dB (Cardioid, A-Weighted)
31 dB (Figure-8, CCIR)
20 dB (Figure-8, A-Weighted)
Connectivity
Analog Output
1x XLR 7-Pin (on Mic)
1x XLR 3-Pin (on Power Supply)
Cable Length
32.8' / 10 m
Power
Power Sources
External PSU
Physical
Color
Nickel
Dimensions
ø: 2.2 x L: 7.87" / ø: 55.88 x L: 199.9 mm
Weight
1.23 lb / 560 g
Packaging Info
Package Weight
16.8 lb
Box Dimensions (LxWxH)
21.8 x 14.8 x 7.6"
