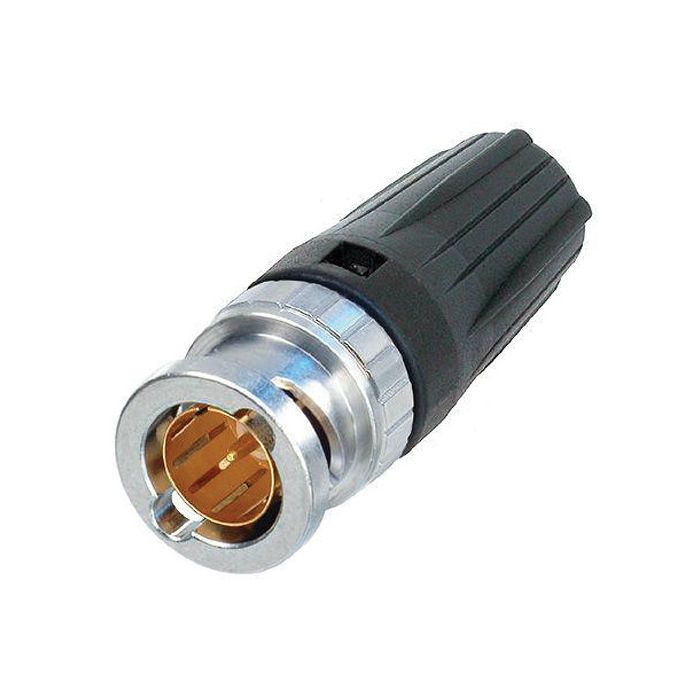

Neutrik NBNC75BLP9 rearTWIST BNC Cable Connector
SKU
NBNC75BLP9
Key Features
- Easy rearTWIST Locking/Unlocking
- Ideal for Recessed Bulkheads
- Swiss-Machined Brass Plating
- 6.3mm Cable Outside Diameter
- Optional Color-Coding in 10 x Hues
- Tactile, Snug-Fit Center Pin
The Neutrik NBNC75BLP9 rearTWIST BNC Cable Connector uses a patented rear locking system that is ideal for recessed bulkheads and other setups where it might be difficult to access the front end of the connector. This 75-ohm connector resists side-to-side warping and features a sturdy design with a lifetime of 1000 mating-cycles. The rearTWIST boot can be color-coded with separately available boots in 10 hues.
Compatible Cables
- Argosy Image 720
- Belden 1505A (ANH), 4505R, 8241F
- CAE HD08370LSZH
- Canare L-4CFB
- Clark Wire CD7559-0, CD7559F-0
- CommScope 5565
- Draka 0.8/3.7 AF, 755-801, 755-803
- Draka 755-804
- Gepco VPM2000
- Proel HPC 810
- Suhner S0426
- Sommer 600-0451, 600-162(F)
- Percon VK6
Crimp Size
- Pin: 1.6mm, Square
- Shield: 6.47mm, Hex
Locking rearTWIST Connector
The patented rearTWIST lock turns from the back, enabling easier access to recessed bulkheads and similar setups
Resists Warping
Durable design avoids tilting side-to-side, protecting the contacts from deformation
Prevents Exposed Grounding
Shield and jacket crimp technology prevents exposed grounding problems on cable assemblies
Precision Machined
Precise Swiss-machined brass parts for high durability
Color Coding
Optional accessories include a crimp tool, color-coded boots in 10 standard colors, and dies
