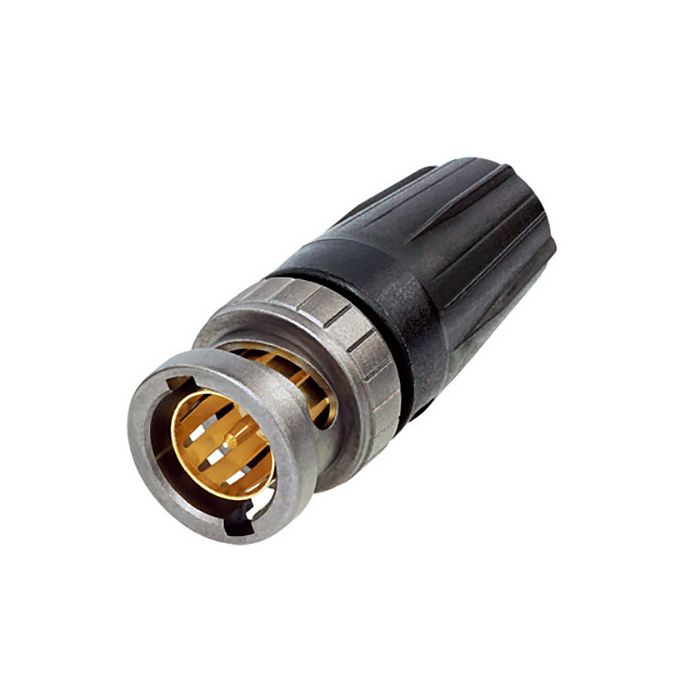

Neutrik NBNC75BLP9X rearTWIST BNC Cable Connector

SKU

NBNC75BLP9X

Request for Price

Key Features

For High-Resolution Video Transmission
Optimized Insulator & Contact Pin Design
Low Return Loss at High Frequencies
Compatible with Standard BNC Connectors

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The NBNC75BLP9X rearTWIST BNC Cable Connector from Neutrik is designed specifically for high-resolution video transmission. It features a unique, optimized insulator and contact pin design that offers low return loss values at high frequencies, which is ideal for UHD data transmission and is compatible with standard BNC connectors.

Reviews

Write Your Own Review

You're reviewing:Neutrik NBNC75BLP9X rearTWIST BNC Cable Connector

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

items Included

Neutrik NBNC75BLP9X rearTWIST BNC Cable Connector

Specification

More Information

SPECS

Connection	Male BNC 75 Ohms
Electrical	Contact Resistance: ≤ 3 mΩ (Inner) Contact Resistance: ≤ 2 mΩ (Outer) Dialectric Strength: 1.5 kVdc Insulation Resistance: > 5 GΩ Rated Voltage: < 50 V VSWR: ≤1.06 / >30 dB up to 6 GHz ≤1.13 / >24 dB up to 12 GHz ≤1.22 / >20 dB up to 18 Ghz
Diameter	0.24" / 6.3 mm
Connector	Cable Retention: > 30 N (Center) Crimp Size: 6.47 Hex Crimp (Shield) Crimp Size (Pin): 1.07 Crimp Insertion Force: < 25 N Lifetime: > 1000 Mating Cycles Locking Device: Bayonet Cable Anchoring: Jacket Crimping Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center Contact) Shell: Brass (CuZn39Pb3) Shell Plating: Antraloy
Operating Temperature	-22 to 185°F / -30 to 85°C
Color	Black
Dimensions	Not Specified by Manufacturer
Weight	Not Specified by Manufacturer
