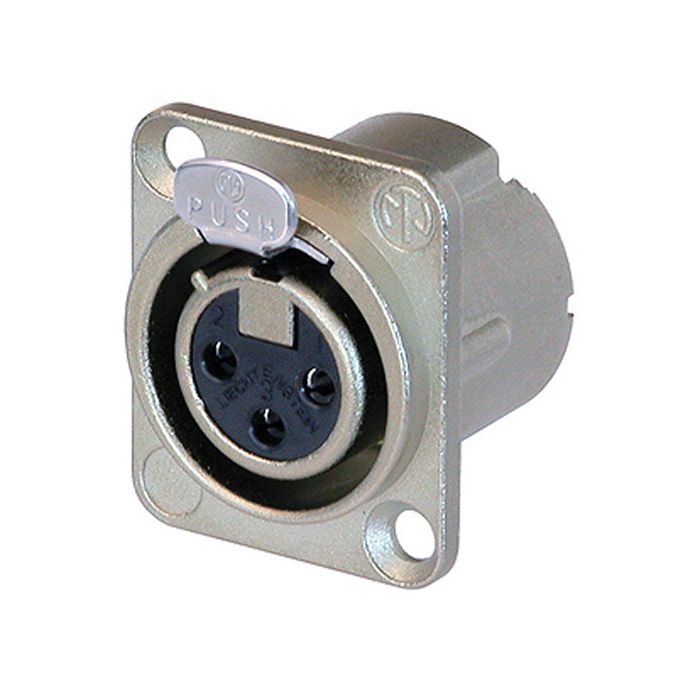

Neutrik NC3FD-LX 3-Pole Female XLR Receptacle

SKU
NC3FDLX
Request for Price



Key Features
  • 3-Pole XLR Female Receptacle
  • Designed to Mate with EMC XLR Connector
  • Nickel Housing
  • Silver Contacts
  • Provides RF Protection & Shielding
  • Solder Barrier

Designed to mate with the Neutrik EMC XLR cable connector, this NC3FD-LX 3-Pole Female Receptacle from the DLX series is a D-style, 3-pole XLR-female receptacle sporting a nickel housing and silver contacts. Its all-metal housing and duplex ground contact offers RF protection and electromagnetic shielding, while its cage-type female contact facilitates conductivity without causing excess wear on any mated male contact. An incorporated solder barrier ensures that solder won't run into the contact mating area. With its D-style housing, it's compatible with industry-standard D-mounting dimensions.

Write Your Own Review
You're reviewing:Neutrik NC3FD-LX 3-Pole Female XLR Receptacle
Your Rating
  • Neutrik NC3FD-LX 3-Pole Female XLR Receptacle
More Information
SPECS
Electrical

Capacitance
Between Contacts: ≤4 pF
Contact Resistance
Inner: ≤5 MOhms
Dielectric Strength
1.5 kVDC
Insulation Resistance
Initial: >10 GOhms
Rated Current Per Contact
16 A
Rated Voltage
50 V
Mechanical

Insertion Force
≤20 N
Withdrawal Force
≤20 N
Lifetime
>1,000 mating cycles
Wire Size
0.1 in² / 2.5 mm²
14 AWG
Wiring
Solder contacts
Locking Device
Latch lock
Chassis Shape
D
Material

Contact Plating
2 µm Ag over 2 µm Ni
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking Element
Steel Ck67
Shell
Zinc die-cast (ZnAl4Cu1)
Shell Plating
Nickel
Environmental

Flammability
UL 94 HB
Standard Compliance
IEC 61076-2-103
Protection Class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature Range
-22 to 176°F / -30 to 80°C
Diameter
0.9" / 23.6 mm
Dimensions
1.2 x 1.4 x 1.3" / 31 x 26 x 32.7 mm
