Neutrik NJ3FC6-BAG Locking 1/4" 3-Pole Female Phone-Cable Jack

SKU

NJ3FC6

Request for Price

Key Features

3-Pole 1/4" Female Connection Point
For Use with Mono & Stereo Cables
Lock Prevents Accidental Disconnection
Black Metal Housing
Silver Contacts

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

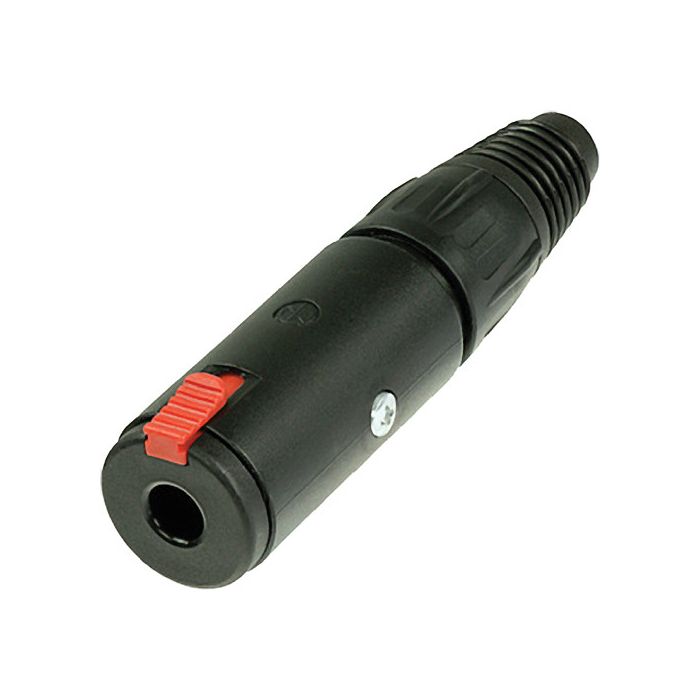

The NJ3FC6-BAG from Neutrik is a 3-pole locking 1/4" cable jack useful in effecting secure, in-line connections—particularly in situations where intermittent shocks or vibrations could cause a chance of accidental disconnections. Any plug will lock in automatically to this jack when connected, and will only unlock once you press the on-board red release tab. The jack features silver contacts with a black metal housing, and it can mate with all compatible mono and stereo plugs.

Secure locking cable jack

Mates with all mono and stereo plugs specified per the EIA RS-453 standard (A-gauge)

Robust metal shell for durability

Neutrik cable retention and boot

Solder terminals

Black metal housing

Silver contacts

Reviews

Write Your Own Review

You're reviewing:Neutrik NJ3FC6-BAG Locking 1/4" 3-Pole Female Phone-Cable Jack

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

items Included

Neutrik NJ3FC6-BAG Locking 1/4" 3-Pole Female Phone-Cable Jack

Specification

More Information

SPECS

Connection Type	Jack, female
Contact Resistance	Initial: <6 MOhms (inner)
Dielectric Strength	1 kVDC
Insulation Resistance	≥1 GOhm @ 500 VDC
Rated Current Per Contact	10 A
Cable O.D.	0.14 to 0.32" (3.5 to 8 mm)
Insertion Force	≤20 N
Withdrawal Force	≤20 N
Lifetime	>10,000 mating cycles
Lock	Locking Force: >80 N
Wire Size	1 mm², 18 AWG
Wiring	Solder contacts
Locking Device	Latch lock
Boot	Polyurethane
Contact Plating	2 µm Ag
Contacts	Brass (CuZn37) (ground)
Insert	Polyamide (PA 6.6 30 % GR)
Shell	Zinc die-cast (ZnAl4Cu1)
Shell Plating	Black
Strain Relief	Polyacetal (POM)
Standard Compliance	EIA RS 453, IEC 60603-11
Solderability	Complies with IEC 68-2-20
Temperature Range	-13 to 158°F / -25 to 70°C
Dimensions	Length: 3.1 to 3.2" / 79 to 81 mm Diameter: 0.8" / 19 mm
