Neutrik NL2FX - 2-Pole Female speakON Connector

Neutrik
SKU
NL2FX
image-icon
Request for Price
Add to Compare
Email



Key Features
  • Easy to Assemble
  • For Cables 6 to 10mm Diameter
  • Quick Locking System
  • Built for Durability
  • Integrated Chuck Type Strain Relief
main product photo

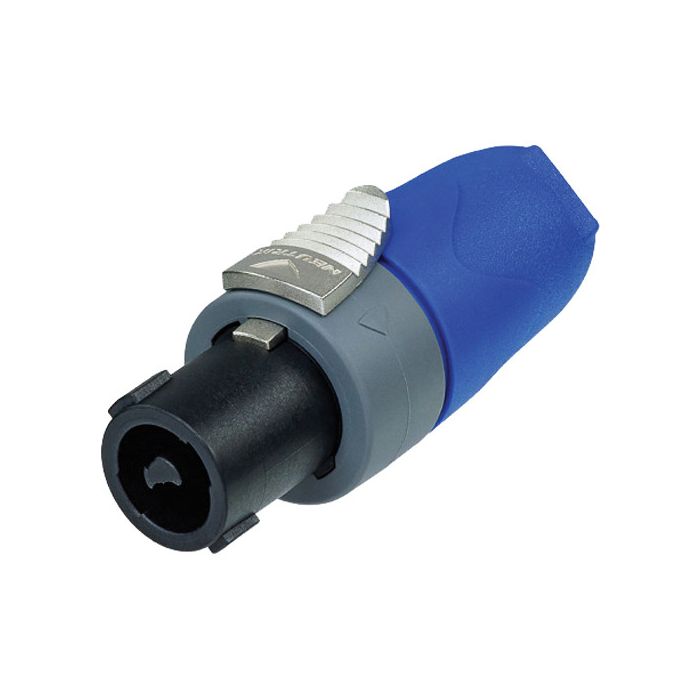

The NL2FX from Neutrik is a two pole female speakON loudspeaker connector for cables that are 6 to 10mm in diameter. This industry-standard loudspeaker connector offers robust cable connection with a reliable locking system.

It features solid contacts with screw-type terminals and includes stranded wire protection which also offers solder termination. The connector has been designed to operate in the high current, inductive load environment of commercial loudspeakers.

Current rating 40A continuous, 50A audio signal with 50% duty cycle
Consists only of three parts, easy to assemble
High impact materials - long-lasting and reliable
Easy and extremely precise locking system "Quick Lock"
One piece strain relief, chuck for 6 to 10mm cable OD
Improved grip on latch
Mates with 4-pole chassis connector as well and makes contact with +1/-1
Write Your Own Review
You're reviewing:Neutrik NL2FX - 2-Pole Female speakON Connector
Your Rating
  • Neutrik NL2FX - 2-Pole Female speakON Connector
More Information
SPECS
Type
Female speakON
Electrical
Contact Resistance: <2mΩ (inner) (after lifetime)
Dielectric Strength: 4 kVDC (peak)
Insulation Resistance: >1GΩ (after damp heat)
Rated Current per Contact: 40 A RMS continuous
Rated Current per Contact: 50 A audio signal, duty cycle 50%
Rated Voltage: 250 V (insulation)
Mechanical
Cable OD: 6 to 10 mm
Cable Retention: >220 N (subject to cable OD and material)
Lifetime: >5,000 mating cycles
Wire Size: 1.5 to 4 mm²
Wire Size: 16 to 12 AWG
Wiring: Screw type terminals or soldering
Locking Device: Quick Lock (latch)
Material
Contact Plating: 4 µm Ag
Contacts: Brass (CuZn39Pb3)
Insert: PBTP 20% GR
Locking Element: Zinc die cast (ZnAl4Cu1)
Shell: PBTP 20% GR
Strain Relief: Polyacetal (POM)
Environmental
Flammability: UL 94 HB
Soldering: Complies with IEC 68-2-20
Temperature Range: -22 to 176°F (-30 to +80°C)
