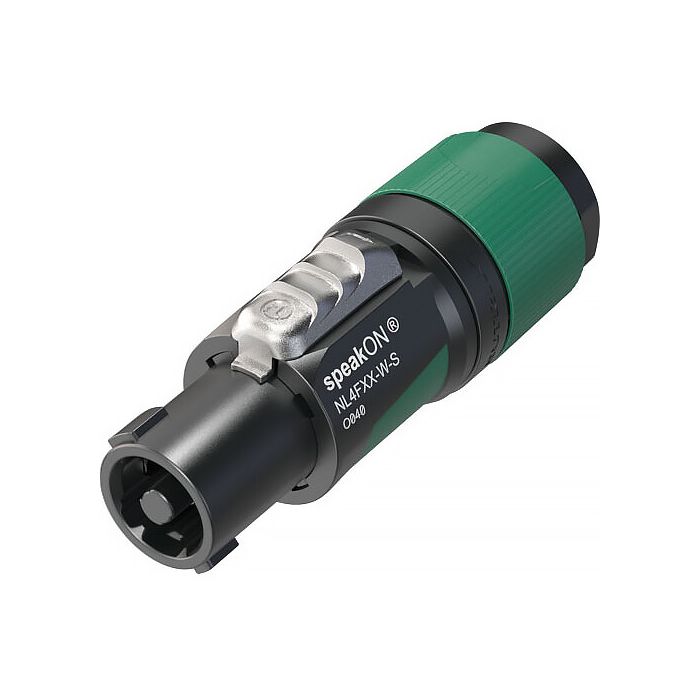

Neutrik NL4FXX-W-S Four-Pole speakON Connector (Green)

SKU
NL4FXX-W-S
Request for Price



Key Features
  • NL4 speakON Connector
  • Easy Assembly
  • Screw Terminal Assembly
  • Chuck-Type Strain Relief
  • Cable Diameter: 0.2 to 0.5"
  • Current Rating 37A RMS Continuous

Save money by making your own pro-audio speaker cables with the green Neutrik NL4FXX-W-S, a four-pole speakON connector for professional audio applications. The connector is extremely robust and features a reliable locking system. Each pole utilizes a screw-type terminal including stranded wire protection.

Benefits
  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 0.2 to 0.5"
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Improved kink protection by two-component bushing
Write Your Own Review
You're reviewing:Neutrik NL4FXX-W-S Four-Pole speakON Connector (Green)
Your Rating
  • Neutrik NL4FXX-W-S Four-Pole speakON Connector (Green)
More Information
SPECS
Compatibility
Not Specified by Manufacturer
Electrical
Contact Resistance: ≤ 2 Megaohm
Dielectric Strength: 2.8 kVac
Insulation Resistance: > 10 Gigohm (Initially)
Electrical Contacts: 4
Rating Europe: IEC 61984: 37 A 250 VAC
Rating USA: UL1977: 35 A 250 VAC
Rating Canada: CSA C22.2 No.182.3: 24 A 250 VAC
Specifications
Mechanical

Cable Diameter: 0.2 to 0.5" / 6 to 12 mm
Lifetime: Typically 5000 Mating Cycles
Wire Size (mm²): 1.5 - 4 mm²
Wire Size (AWG): 17 - 11 AWG
Locking Device:Twist Lock
Termination: Screw Type Terminals
IP 20
Environmental Protection
No
Operating Temperature
-27 to 176°F / -33 to 80°C
Color
Green / Black
Material of Construction
Copper Alloy Contacts, Zinc Diecast Lock, Polyamide Shell and Insert, Polypropylene Bushing, Polyketone Strain Relief
Dimensions
Not Specified by Manufacturer
Weight
Not Specified by Manufacturer
