| Video Input: | 32 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to UHD at frame rates up to 60fps (2160p 59.94) |
| Network Video Input: | 32 x IP inputs via NDI®, resolution-independent, with support for key and fill |
| SDI Video Input1: | 8 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates2
1080p: 59.94, 50, 29.97, 25
1080i: 59.94, 50
720p: 59.94, 29.97, 25
576i 50
480i 59.94
1 Optionally supports up to 32 simultaneous 3G/HD/SD-SDI video inputs or quad-link 3G-SDI video inputs (4K UHD) via network integration with NewTek NC1 conversion modules 2 Available frame rates determined by session video standard (NTSC or PAL) |
| PTZ: | Support for up to 32 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system |
| Conference Calling: | Support for multiple simultaneous video call inputs with Microsoft Skype™, Microsoft Teams™, Zoom Meetings™, GoToMeeting™, Discord™, and Tencent™ software integration using the Live Call Connect feature, |
| Video Output: | Configurable for up to 8 independent HD or 2 UHD video mix outputs, with simultaneous delivery via IP and SDI |
| Network Video Output: | 48 x IP outputs via NDI® (HD and SD sessions only)
8 x video mix outputs in resolutions up to 1080p at frame rates up to 60fps (1080p 59.94) or 2 x UHD video mix outputs at up to 60 frames per second (2160p 59.94)
8 x direct IP source outputs via NDI® translation of local SDI inputs or 2 x upconverted UHD outputs at up to 60 frames per second (2160p 59.94)
4 x direct IP source outputs via NDI® translation of media players, with support for embedded alpha channel
15 x direct IP source outputs via NDI® translation of media buffers, with support for embedded alpha channel
3 x Multiviewer outputs (if 3 monitors are connected).
4K support on 2x Multiviewer outputs while the 3rd outputs in HD
1 x User Interface with dedicated multiviewer
1 x teleprompter output (LiveStory™ Creator)
8 x selectable IP outputs via internal NDI® matrix router |
| SDI Video Output: | 8 x 3G/HD/SD-SDI connections, optionally configurable for:
8 x independent 3G/HD/SD video mix outputs supporting standard NTSC and PAL formats, resolutions, and frame rates3
2 x UHD video mix output via 3G-SDI quad-link grouping, supporting frame rates up to 60fps (2160p 59.94)
3 Available frame rates determined by session video standard (NTSC or PAL) |
| Stream Output: | 2 x resolution-independent streaming video outputs, independently configurable, with simultaneous stream recording. Support for SRT streaming has been enabled. |
| Multiviewer Output: | 4 x multiviewer outputs supporting standard display resolutions, using any combination of available connections. Support for 4K on 2x DisplayPorts
1 x HDMI
3 x DisplayPort |
| Mix/Effect Buses (M/E): | 8 x M/E buses supporting video re-entry
1 x Mix/Effect channel per bus with support for up to 4 sources
4 x KEY layers per bus
9 x memory slots per bus
1 x PREVIZ configuration and preview bus |
| DSK Channels: | 4 x DSK channels |
| Media: | 5 x media players
4 x DDR
1 x Sound
15 x media buffers
10 x animation buffers with GIF support
5 x graphic buffers |
| Keyers: | Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
32 x input keyers
4 x media player keyers
8 x M/E keyers
1 x PREVIZ keyer
15 x buffer keyers |
| COMPs: | Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
16 x configurable COMP presets per bus |
| Virtual Sets: | Integrated LiveSet™ technology with 30+ live virtual sets and box effects included |
| DataLink: | Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
| Macros: | Record, store, edit and automate commands and user-configured operation sequences
Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
Supports control via web-based interface |
| Recording: | 32 x total video recording channels
8 x configurable M/E channels for HD or 2 x for UHD
8 x physical SDI inputs
4 x DDR’s
2 x streaming encoders
Support for growing file playback from DDR’s
Instant Replay capability on each input
32 x total configurable inputs |
| Storage: | 1 x 4TB SSD internal storage
Quantity varies by format, resolution and file specification
Supports recording to external storage via 7 USB 3.2 type A, and 1 USB 3.2 type C, 1 USB 2.0 2(Gen2, Type A)
Supports shared storage integration and third-party partner solutions |
| Grab: | Grab full resolution, deinterlaced still images from external video sources and outputs |
| Export: | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
| Audio: | 16 channels of audio passthrough
Integrated multi-channel audio mixer with support for 8-channel audio, DSPs and
4x8x8 audio input routing |
| Local Audio Input: | 8 x SDI embedded
1 x Balanced XLR stereo pair (Line)
3 x Balanced 1/4” stereo pairs (Line) |
| Local Audio Output: | 8 x SDI Embedded
1 x Balanced XLR stereo pair
1 x Balanced 1/4” stereo pair
1 x Stereo 1/4" (phones) |
| Network Audio: | Native support for network audio input and output via NDI®
Embedded audio supported for all NDI®input and output video signals
Integrated support5 for Dante™ networking protocol from Audinate®
Support for AES67 protocol via compatible WDM audio drivers6
5 Requires Dante Virtual Soundcard license from Audinate (sold separately)
6 Requires third-party virtual sound card license (sold separately) |
| Supported Media File Formats: | Import, store, and play back multimedia files, with optional transcoding, including:
Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
Audio: AIFF, MP3, WAV, and more |
| Monitoring: | Support for up to 4 multiviewer displays with configurable workspaces and viewports. Support for 4K on 2 multiviewers while the other 2 multiviewers output in HD. |
| Signal Monitoring: | Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709 |
| Processing: | Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz |
| Throughput Latency: | ~1.0-1.5 frames |
| A/V Standards: | UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split)
3G-SDI video conforms to SMPTE 424M (Level A)
HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155 |
| Tally: | Support for hardware tally via HD15 GPI connector, network tally via NDI®, and Blackmagic Design® SDI tally standard |
| Genlock: | Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals |
| GPI: | Supports GPI signals via JLCooper Electronics eBox GPI interface |
| MIDI: | Support for standard MIDI protocol enabling third-party device control |
| System Drive: | 250GB SSD |
| NIC: | 1 x 10 Gigabit SFP NIC 7 Intel® Ethernet Converged Network Adapter X520 10Gbps PCI Express
1 x 1 Gigabit NIC
7 Requires customer-supplied copper or optical SFP’s |

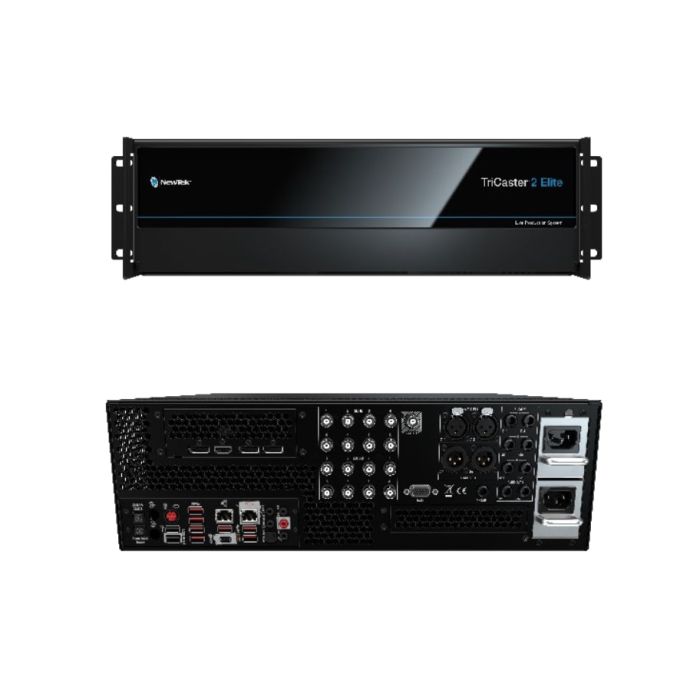

| System Physical: | 3RU chassis with 650W redundant PSU and multi-tiered hardware and software fail-safe
19.0 x 5.25 x 19.57 in (48.3 x 13.34 x 49.7 cm) with rack ears attached
34 lbs (15 kg)
7 Requires customer-supplied copper or optical SFP’s |
