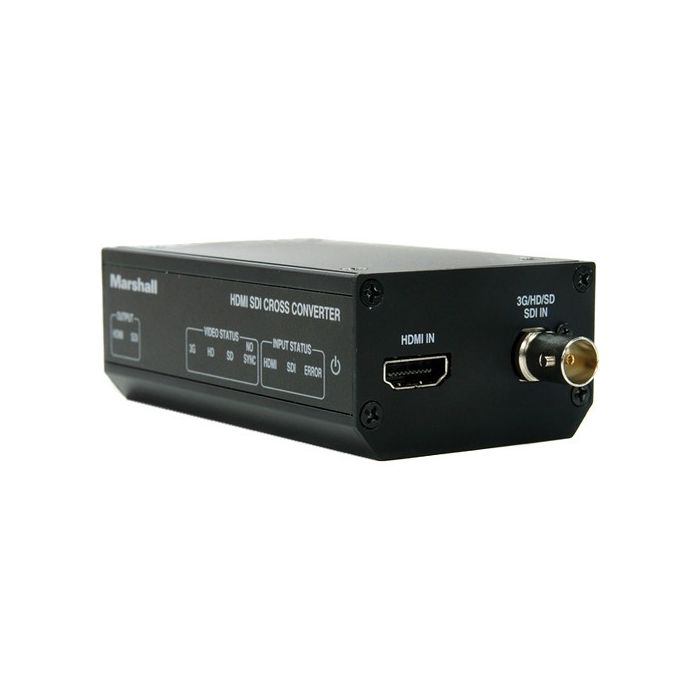

Orchid Battery-Powered 3G-SDI / HDMI Cross Converter (4-Pin XLR)

The Marshall Electronics Orchid Battery-Powered 3G-SDI / HDMI Cross Converter (4-Pin XLR) is used to convert input signals between an HDMI and a 3G-SDI source with audio for distribution over 2 output ports. Accepting input from a 3G-SDI source, the Cross Converter can be used to provide signals to an HDMI source while simultaneously supplying the same input through the 3G-SDI output port. Automatic input video format detection allows automatic input port switching of the signals to the respective output ports.

With a built-in SD format interlacer, the Battery-Powered 3G-SDI / HDMI Cross Converter supports 480p to 480i conversion required for DSLR while recording. A small battery plate allows you to use the cross converter with a 7.2V or a 14.4V battery for operation. In addition, it includes an EIA 12V jack and a 4-pin XLR connector that is used to power the unit.

The Battery-Powered 3G-SDI / HDMI Cross Converter with 4-Pin XLR Connector comes with an 8-position piano switch for input port selection and power save, and features LED indicators which indicate speed and health of the connection. A USB service port is also included for future upgrade of the device. The converter is housed in a rugged metal alloy case, and includes a 1/4-20 dual size mounting holes.

• Used to convert input signals between an HDMI and a 3G-SDI source with audio for distribution over 2 output ports
• Accepts input from 3G-SDI / HDMI source
• Simultaneous output on both output ports
• Automatic input video format detection
• Automatic input port switching
• Built-in SD format interlacer
• Supports 480p to 480i conversion required while recording using a DSLR
• Includes a small battery plate
• Can be used with a 7.2V or a 14.4V battery for operation
• EIA 12V jack / 4-pin XLR connector used to power the unit via a power adaptor
• 8-position piano switch for input port selection and power save
• LED indicators display speed and health of the connection
• USB service port for future upgrade of the converter
• Housed in a rugged metal alloy case
• Includes 1/4-20 dual size mounting holes
• Suitable for video production
