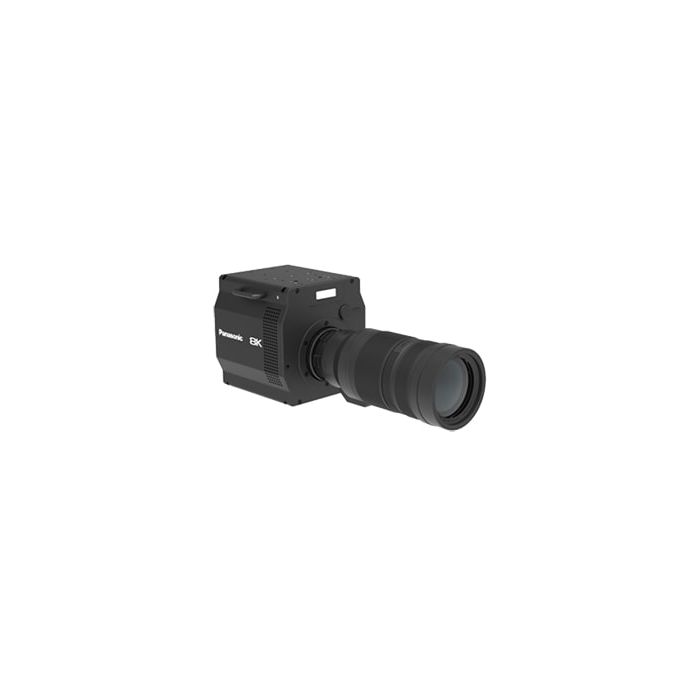

Panasonic 8K ROI (Region of Interest) Multi-Purpose Camera System

Request for Price

Product Highlights:

  • Features an 8K full-size CMOS image sensor
  • Up to four separate HD videos can be cropped from a high-resolution, wide-angle 8K image, and each cropped image can be panned, tilted and zoomed individually
  • Automatic wide-angle distortion correction function removes, in real time, distortion of images cropped from the periphery, thus realizing natural-looking images
  • Cropping frames position can be preset
  • Up to eight 8K Multi-Purpose Camera units can be linked for cropping a maximum of 32 different HD videos

The 8K ROI (Region Of Interest) system allows a single operator to produce up to 5 independent HD footage with a single 8K camera. Pan, tilt and zoom operations can be used on each crop area, so a single 8K ROI camera serves as four HD cameras. It improves acquisition efficiency in live and sports application, by contributing to the reduction of camera setup, relocation and transport costs. It also eliminates the need to take up audience seats for the setup of multiple cameras.

Linked operation of multiple-frames/multiple-cameras

Several 8K Multi-Purpose Camera units (maximum of 8) can be connected and operated as one integrated system. By setting one crop area in the main frame and linking it to other crop areas, pan, tilt and zoom on the multiple crop images operate in link with the panning, tilting and zooming on the main frame. This allows improving operational efficiency in multi-camera/multi-angle recording or broadcasting. Multiple frames can be controlled using Framing Control Software*

Natural cropped image from anywhere within a whole image

Automatic Real-Time correction of wide-angle lens distortion cropped from the image periphery away from the center image. This results in natural-looking videos as if the camera images were individually panned or tilted.

Continuous evolution of software to enhance functionality is planned for the future

Future release* of Framing Control Software for longer distance shooting and Auto Framing Software for automatic object recognition


Thanks to Newly-Developed 35mm Full-Frame Image Sensor Effective pixels: Approx. 33M), 8K realizes wider-angle image compared to 4K with the same picture quality.
Even more realistic and exciting image thanks to HDR(HLG) & BT.2020 Support
EF lens-mount opens up a wide range of lens choices for each shooting environment


A single camera can produce footage corresponding to 4 traditional cameras, resulting in increased productivity with limited resources and reduced number of cameras installed in a venue

Write Your Own Review
You're reviewing:Panasonic 8K ROI (Region of Interest) Multi-Purpose Camera System
Your Rating

8K ROI - Specification

More Information
ND Filter:CLEAR, 1/4, 1/16, 1/64
Weight::Approx. 4.0 kg (8.82 lbs)
Lens Mount:EF
Function:ROI, HDR (HLG), BT.2020 supported
Dimensions::180 mm x 190 mm x 177 mm (7-1/8 inches x 7-1/2 inches x 7 inches) (excluding protrusions)
Power Supply:DC12v (DC11 V - 17 V)
Sensor:Full size, MOS x 1
