Panasonic AG-CX10 4K Camcorder

Panasonic
SKU
AG-CX10
image-icon
$2,595.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • Up to UHD 4K60 Video, 3G-SDI, HDMI Out
  • NDI|HX Compatible with Optional License
  • 1/2.5" 8.29M MOS Sensor, Venus Engine
  • 24x Optical Zoom, 48x Digital iZoom
  • 120 fps Slow Motion, Live RTP Streaming
  • Handle with 2 XLR Inputs, LED Light
  • Manual Lens Rings and Dial, ND Filter
  • 5-Axis O.I.S., 3.5" LCD Touchscreen
  • Records MP4, MOV, AVCHD to Dual SD Cards
  • Face Detection AF Feature

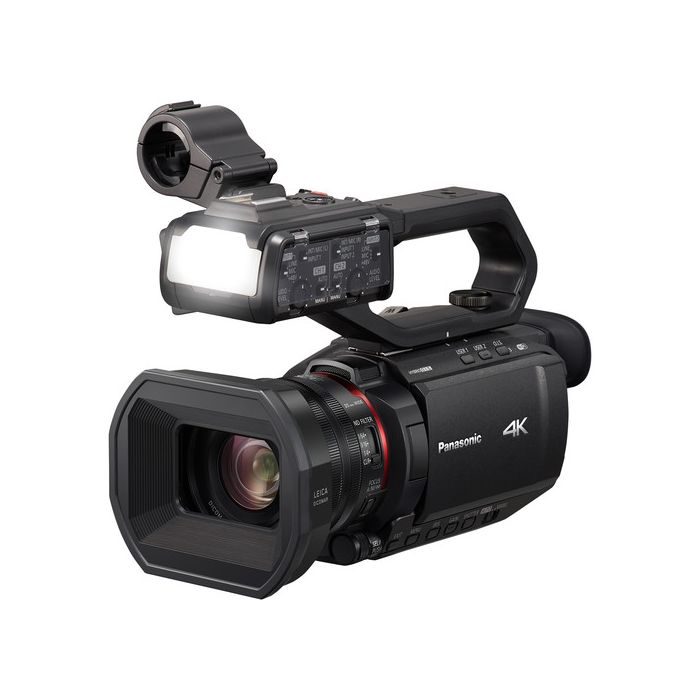

main product photo

Whether you're shooting for broadcast, behind the scenes (BTS), documentary, narrative, or live streaming in HD and would like to add 4K to your repertoire, the Panasonic AG-CX10 4K Camcorder can help balance your needs or allow you to jump straight to 4K. Compact and lightweight, the AG-CX10 shoots and records UHD 4K at broadcast-compatible frame rates, so it fits smoothly into your existing broadcast workflow. The AG-CX10 features a 1/2.5" 8.29M MOS sensor that is always shooting at 4K resolution, the Venus processing engine to scale the 4K image for Full HD delivery, and both 3G-SDI and HDMI outputs. Audio is recorded in up to 24-bit PCM via the built-in microphone. Additionally, with an optional NDI|HX license, it supports a full IP workflow including streaming via its Ethernet port.

The built-in Leica Dicomar lens features a 24x zoom with its widest angle at 25mm, and it uses the digital iZoom feature to zoom up to 48x. The Face Detection AF feature allows you to track faces and automatically adjusts focus on your subject. It also features manual control rings, a control dial, and a 5-axis optical image stabilization to keep your shots steady. The 3.5" fold-out LCD features a high-resolution touchscreen. The camera records in .mp4, .mov, and AVCHD codecs and features HEVC compression. The camera incorporates two SD card slots, allowing you to use both relay and simultaneous recording. The camera also supports live streaming over 2.4 GHz Wi-Fi via RTP/RTSP/RTMP/RTMPS streams.

The VW-HU1 removable top handle unit is included, which provides two 3-pin XLR inputs that can be switched between mic, line, and +48V phantom power, and feature individual volume control knobs. A built-in LED light on the front of the unit allows you to illuminate your subject with a soft, diffused light and it also features dimming. A microphone holder is also attached to hold a standard shotgun mic, and the handle also features a shoe mount and mounting thread for additional accessories.

IP Workflow

The AG-CX10 includes advanced IP networking features, such as built-in Wi-Fi support for HD live streaming to YouTube, Facebook, and other social sites via RTMP/RTMPS/RTSP protocols. In addition, the AG-CX10 includes an Ethernet connection for streaming and an NDI|HX connectivity for use in live production, as well as ROP tablet-based control. Please note that NDI|HX functionality requires an optional license.

Recording Options

The camera supports a variety of high-quality recording options using the Venus engine, including 4:2:2 10-bit internal recording with a maximum 29.97p in UHD, and a maximum 59.94p in FHD. When recording in 10-bit, the camcorder delivers 4K 60p 4:2:2 10-bit HDMI output. It also supports HEVC recording (LongGOP/10-bit 4:2:0/MOV) at 59.94p with a bit rate of 200 Mb/s. In addition to MOV, MP4, and AVCHD, the AG-CX10 also supports P2 MXF for broadcast stations, with AVC-LongG support, plus AVC-Intra100/50 support planned via a future firmware update. Dual SD card slots support relay recording for virtually limitless record times.

Please note that P2 recording requires microP2 cards.

Lens

The wide-angle 24x optical lens offers a zoom range of 25 to 600mm (35mm-equivalent), and it features 32x iZoom in 4K and 48x iZoom in HD. Panasonic's exclusive high-precision AF also provides high-speed, accurate focusing for both 4K and Full HD shooting.

Manual Features

The AG-CX10 features two manual lens control rings, one for focus and the second switchable between zoom and iris. The two rings are different sizes, allowing you to identify each ring by feel so you don't have to look away from the shot to confirm you are using the correct ring. An integrated ND wheel enables rapidly, switching between clear, 2-stop, 4-stop, and 6-stop NDs. The removable top handle incorporates two 3-pin XLR audio inputs and a built-in LED video light.

Audio Recording

The top handle supports +48V phantom power/mic/line selectable XLR audio input with manual volume control for each of the two channels. Also supported is a 24-bit linear PCM system (MOV/P2 MXF), 16-bit AAC (MP4), or Dolby Audio system (AVCHD) high-quality 2-channel audio recording.

Super Slow Motion

FHD mode enables slow-motion recording at up to 120 fps (for 59.94 Hz)/100 fps (for 50 Hz). And 10-bit recording is supported, for full-frame images with no crop and autofocus active.

Image Stabilization

For both UHD and FHD modes, in addition to Optical Image Stabilization (O.I.S.), the camera also features Electronic Image Stabilization which operates to detect and correct handshake in five axes, including rotational blurring. The Ball O.I.S. System reduces friction on the drive section, achieving delicate correction even for small-amplitude handshake at all focal lengths.

High-Speed AF and Face Detection AF/AE

Face Detection AF/AE provides precise focusing while compensating the exposure for subjects, and together with the camera's precise focus lens drive achieves rapid focusing speed, stability, and tracking performance in both 4K and Full HD. In addition, subject tracking with color recognition can be activated on the LCD panel.
Write Your Own Review
You're reviewing:Panasonic AG-CX10 4K Camcorder
Your Rating

Items Included:

  • Panasonic AG-CX10 4K Camcorder
  • Detachable Handle Unit
  • AC Adapter
  • AC Power Cord
  • Panasonic 7.28V 43Wh Lithium-Ion Battery for DVX200 and CX10 (5900mAh)
  • USB Micro-AB to Host Cable
  • USB Ethernet Adapter
  • Microphone Holder
  • Set Microphone Holder Screw
  • Eye Cup
  • Lens Hood
  • Limited 1-Year Warranty
Panasonic AG-CX10 Brochure (Size: 9.7 MB)

AG-CX10 - Specification

More Information
General Specification
Effective Pixels:8.29 megapixels
Filter Diameter:62 mm
Focal Length:4.12-98.9mm
F Value:F1.8-4.0
Optical Zoom:24x
Lens Brand:Leica Dicomar Lens
Image Sensor:1/2.5-type (inch) MOS Sensor
35mm Film Camera Equivalent:25.0-600.0 mm
Weight:Body: approx. 0.9kg (1.98 lb) (body only, excluding handle, lens hood, battery, and accessories) Shooting: approx. 1.5kg (3.31 lb) (including handle, lens hood, battery, and eyecup)
Dimensions (W x H x D):Approx. 129 x 159 x 257 mm (5.08 x 6.26 x 10.1 inch)
AC Adapter:Yes
Footnote:*Only images cut from video in video playback mode are supported. Note: Specifications are subject to change without notice.
Frequency:2.4GHz band
Power Consumption:15.5W (LCD Monitor)
LCD Monitor:3.5-inch Wide LCD monitor (About 2,760,000 dots)
ND Filter:1/4, 1/16, 1/64, OFF
Shutter Speed:59.94 Hz mode _59.94i/59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec _29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec _23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec 50.00 Hz mode _50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec _25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
Slow Shutter Speed:59.94 Hz mode 59.94i/59.94p: 1/8, 1/15, 1/30 sec 29.97p: 1/8, 1/15 sec 23.98p: 1/6, 1/12 sec 50.00 Hz mode 50i/50p: 1/6, 1/12, 1/25 sec 25p: 1/6, 1/12 sec Super Slow Recording Frame Rate 59.94 Hz mode FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p) 50.00 Hz mode FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)
Recording Media:SDHC/SDXC Memory Card, microP2 card (A series, B series)
Recording Format:JPEG (DCF/Exif2.2)
Frame Rate:System frequency = 59.94 Hz: 30 fps, 60 fps 50.00 Hz: 25 fps, 50 fps
Minimum Illumination:1.5 lx (F1.8, Super Gain +, 1/30)
Audio Output:SDI: 2 ch (LPCM 24bit) Gain: 0dB/-6dB/-8dB
Zoom:Intelligent Zoom OFF: 24x Intelligent Zoom ON: Max. 48x (UHD 32x) Digital Zoom: 2x / 5x / 10x
Video:SDI OUT: BNC x 1, 0.8V[p-p], 75Ω, 3G/1.5G HD-SDI supported Output format: 1080/59.94p LEVEL-A/50.00p LEVEL-A, 1080/29.97PsF/25.00PsF/23.98PsF, 1080/59.94i/50.00i, 720/59.94p/50.00p HDMI: Type A x 1 (VIERA Link not supported) Output format: 2160/59.94p/50.00p/29.97p/25.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p
White Balance:Auto / ATW LOCK / 3200K / 5600K / VAR (2000K-15000K) / Ach Fixed / Bch Fixed
Lens Hood:Yes
Bit Rate:24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps
Focus:Auto / Manual
Iris:Auto / Manual
Video Resolution:1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180
Image Stabilizer:Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD)
AC Cable:Yes
Rechargeable Battery Pack:Yes (5,900mAh)
Manual Ring:Focus / Zoom or Iris
Microphone Unit:Microphone Holder & Holder Screws: Yes
Audio Input:Built-in Microphone: Stereo microphone Microphone Input: 3.5mm stereo mini jack x 1 XLR Input: XLR (3 pins) x 2 Input high impedance, LINE/MIC/MIC+48 V (switchable SW) LINE: +4dBu/0dBu (switchable menu) MIC: -40dBu/-50dBu/-60dBu (switchable menu)
Network Protocol:RTSP/RTP/RTMP/RTMPS
System Frequency:59.94Hz / 50.00Hz
Video Compression Format:H.264/MPEG-4 AVC Main Profile, High Profile
Audio Compression Format:AAC-LC, 48 kHz/16 bit, 2ch
Other Input/Output:Camera Remote: 2.5mm super mini jack x 1 USB 2.0 HOST: Micro-AB connector, 5-pin, only USB LAN conversion supported USB 2.0 DEVICE: Micro-AB connector, 5-pin, mass storage function (read only) DC IN: DC 12V (11.4V - 12.6V) EIAJ Type4
Power Supply:7.28V (Battery) / 12V (AC Adaptor)
Camera Section:---
Standard:IEEE 802.11b/g/n
Video Compression Method:MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile AVCHD: H.264/MPEG-4 AVC High Profile P2: AVC-LongG 50/AVC-LongG25: MPEG-4 AVC/H.264 High Profile
IR Filter:Incorporates the ON/OFF control function
Recording Image Size | Still Picture:Video Playback Mode*: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9)
Recording/Playback Mode:MOV (HEVC) [4:2:0 10bit] UHD 3840 x 2160 59.94p/50.00p HEVC 200M: Average 200 Mbps (VBR) UHD 3840 x 2160 29.97p/25.00p/23.98p HEVC 150M: Average 150 Mbps (VBR) MOV [4:2:0 8bit] UHD 3840 x 2160 59.94p/50.00p 150M: Average 150 Mbps (VBR) UHD 3840 x 2160 29.97p/25.00p/23.98p 100M: Average 100 Mbps (VBR) [4:2:2 10bit] UHD 3840 x 2160 29.97p/25.00p/23.98p 150M: Average 150 Mbps (VBR) FHD 1920 x 1080 59.94p/50.00p 200M (ALL-Intra): Average 200 Mbps (VBR) FHD 1920 x 1080 29.97p/25.00p/23.98p 100M (ALL-Intra): Average 100 Mbps (VBR) FHD 1920 x 1080 59.94i/50i 100M (ALL-Intra): Average 100 Mbps (VBR) FHD 1920 x 1080 59.94p/50.00p 100M: Average 100 Mbps (VBR) FHD 1920 x 1080 29.97p/25.00p/23.98p/59.94i/50.00i 50M: Average 50 Mbps (VBR) MP4 (HEVC) [4:2:0 10bit] UHD 3840 x 2160 59.94p/50.00p HEVC 100M: Average 100 Mbps (VBR) UHD 3840 x 2160 29.97p/25.00p/23.98p HEVC 72M: Average 72 Mbps (VBR) MP4 [4:2:0 8bit] UHD 3840 x 2160 29.97p/25.00p/23.98p 72M: Average 72 Mbps (VBR) FHD 1920 x 1080 59.94p/50.00p/23.98p 50M: Average 50 Mbps (VBR) AVCHD [4:2:0 8bit] PS 1920 x 1080 59.94p/50.00p: Average 25 Mbps (VBR) PH 1920 x 1080 59.94i/50.00i/23.98p: Average 21 Mbps (VBR) HA 1920 x 1080 59.94i/50.00i: Average 17 Mbps (VBR) PM 1280 x 720 59.94p/50.00p: Average 8 Mbps (VBR) P2 [4:2:2 10bit] FHD 1920 x 1080 59.94p/50.00p/59.94i/50.00i: Average 50 Mbps (VBR) FHD 1920 x 1080 59.94i/50i: Average 25 Mbps (VBR) HD 1280 x 720 59.94p/50.00p: Average 50 Mbps (VBR) HD 1280 x 720 59.94p/50.00p: Average 25 Mbps (VBR)
Audio Compression Method:MOV / P2: LPCM (24bit 2ch) MP4: AAC (16bit 2ch) AVCHD: Dolby Audio (16bit 2ch)
Interface | USB:USB LAN Conversion Adaptor: Yes (VW-UEA1)
LED Video Light | Average Illumination:Approx. 70 lx (1.0m)
LED Video Light | Irradiation Angle:Approx. 30°
LED Video Light | Color Temperature:Approx. 4600K
Accessory Shoe:Yes
Hand Grip:Yes (detachable)
IP Streaming:Unicast, Multicast
Live Streaming:Yes
Viewfinder:0.24-inch Wide EVF (About 1,560,000 dots)
Wi-Fi:Yes - integrated
Effective Pixels:8.29 megapixels
Filter Diameter:62 mm
Focal Length:4.12-98.9mm
F Value:F1.8-4.0
Optical Zoom:24x
Lens Brand:Leica Dicomar Lens
Image Sensor:1/2.5-type (inch) MOS Sensor
35mm Film Camera Equivalent:25.0-600.0 mm
Weight:Body: approx. 0.9kg (1.98 lb) (body only, excluding handle, lens hood, battery, and accessories) Shooting: approx. 1.5kg (3.31 lb) (including handle, lens hood, battery, and eyecup)
Dimensions (W x H x D):Approx. 129 x 159 x 257 mm (5.08 x 6.26 x 10.1 inch)
AC Adapter:Yes
Footnote:*Only images cut from video in video playback mode are supported. Note: Specifications are subject to change without notice.
Frequency:2.4GHz band
Power Consumption:15.5W (LCD Monitor)
LCD Monitor:3.5-inch Wide LCD monitor (About 2,760,000 dots)
ND Filter:1/4, 1/16, 1/64, OFF
Shutter Speed:59.94 Hz mode _59.94i/59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec _29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec _23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec 50.00 Hz mode _50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec _25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
Slow Shutter Speed:59.94 Hz mode 59.94i/59.94p: 1/8, 1/15, 1/30 sec 29.97p: 1/8, 1/15 sec 23.98p: 1/6, 1/12 sec 50.00 Hz mode 50i/50p: 1/6, 1/12, 1/25 sec 25p: 1/6, 1/12 sec Super Slow Recording Frame Rate 59.94 Hz mode FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p) 50.00 Hz mode FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)
Recording Media:SDHC/SDXC Memory Card, microP2 card (A series, B series)
Recording Format:JPEG (DCF/Exif2.2)
Frame Rate:System frequency = 59.94 Hz: 30 fps, 60 fps 50.00 Hz: 25 fps, 50 fps
Minimum Illumination:1.5 lx (F1.8, Super Gain +, 1/30)
Audio Output:SDI: 2 ch (LPCM 24bit) Gain: 0dB/-6dB/-8dB
Zoom:Intelligent Zoom OFF: 24x Intelligent Zoom ON: Max. 48x (UHD 32x) Digital Zoom: 2x / 5x / 10x
Video:SDI OUT: BNC x 1, 0.8V[p-p], 75Ω, 3G/1.5G HD-SDI supported Output format: 1080/59.94p LEVEL-A/50.00p LEVEL-A, 1080/29.97PsF/25.00PsF/23.98PsF, 1080/59.94i/50.00i, 720/59.94p/50.00p HDMI: Type A x 1 (VIERA Link not supported) Output format: 2160/59.94p/50.00p/29.97p/25.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p
White Balance:Auto / ATW LOCK / 3200K / 5600K / VAR (2000K-15000K) / Ach Fixed / Bch Fixed
Lens Hood:Yes
Bit Rate:24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps
Focus:Auto / Manual
Iris:Auto / Manual
Video Resolution:1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180
Image Stabilizer:Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD)
AC Cable:Yes
Rechargeable Battery Pack:Yes (5,900mAh)
Manual Ring:Focus / Zoom or Iris
Microphone Unit:Microphone Holder & Holder Screws: Yes
Audio Input:Built-in Microphone: Stereo microphone Microphone Input: 3.5mm stereo mini jack x 1 XLR Input: XLR (3 pins) x 2 Input high impedance, LINE/MIC/MIC+48 V (switchable SW) LINE: +4dBu/0dBu (switchable menu) MIC: -40dBu/-50dBu/-60dBu (switchable menu)
Network Protocol:RTSP/RTP/RTMP/RTMPS
System Frequency:59.94Hz / 50.00Hz
Video Compression Format:H.264/MPEG-4 AVC Main Profile, High Profile
Audio Compression Format:AAC-LC, 48 kHz/16 bit, 2ch
Other Input/Output:Camera Remote: 2.5mm super mini jack x 1 USB 2.0 HOST: Micro-AB connector, 5-pin, only USB LAN conversion supported USB 2.0 DEVICE: Micro-AB connector, 5-pin, mass storage function (read only) DC IN: DC 12V (11.4V - 12.6V) EIAJ Type4
Power Supply:7.28V (Battery) / 12V (AC Adaptor)
Camera Section:---
Standard:IEEE 802.11b/g/n
Video Compression Method:MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile AVCHD: H.264/MPEG-4 AVC High Profile P2: AVC-LongG 50/AVC-LongG25: MPEG-4 AVC/H.264 High Profile
IR Filter:Incorporates the ON/OFF control function
Recording Image Size | Still Picture:Video Playback Mode*: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9)
Recording/Playback Mode:MOV (HEVC) [4:2:0 10bit] UHD 3840 x 2160 59.94p/50.00p HEVC 200M: Average 200 Mbps (VBR) UHD 3840 x 2160 29.97p/25.00p/23.98p HEVC 150M: Average 150 Mbps (VBR) MOV [4:2:0 8bit] UHD 3840 x 2160 59.94p/50.00p 150M: Average 150 Mbps (VBR) UHD 3840 x 2160 29.97p/25.00p/23.98p 100M: Average 100 Mbps (VBR) [4:2:2 10bit] UHD 3840 x 2160 29.97p/25.00p/23.98p 150M: Average 150 Mbps (VBR) FHD 1920 x 1080 59.94p/50.00p 200M (ALL-Intra): Average 200 Mbps (VBR) FHD 1920 x 1080 29.97p/25.00p/23.98p 100M (ALL-Intra): Average 100 Mbps (VBR) FHD 1920 x 1080 59.94i/50i 100M (ALL-Intra): Average 100 Mbps (VBR) FHD 1920 x 1080 59.94p/50.00p 100M: Average 100 Mbps (VBR) FHD 1920 x 1080 29.97p/25.00p/23.98p/59.94i/50.00i 50M: Average 50 Mbps (VBR) MP4 (HEVC) [4:2:0 10bit] UHD 3840 x 2160 59.94p/50.00p HEVC 100M: Average 100 Mbps (VBR) UHD 3840 x 2160 29.97p/25.00p/23.98p HEVC 72M: Average 72 Mbps (VBR) MP4 [4:2:0 8bit] UHD 3840 x 2160 29.97p/25.00p/23.98p 72M: Average 72 Mbps (VBR) FHD 1920 x 1080 59.94p/50.00p/23.98p 50M: Average 50 Mbps (VBR) AVCHD [4:2:0 8bit] PS 1920 x 1080 59.94p/50.00p: Average 25 Mbps (VBR) PH 1920 x 1080 59.94i/50.00i/23.98p: Average 21 Mbps (VBR) HA 1920 x 1080 59.94i/50.00i: Average 17 Mbps (VBR) PM 1280 x 720 59.94p/50.00p: Average 8 Mbps (VBR) P2 [4:2:2 10bit] FHD 1920 x 1080 59.94p/50.00p/59.94i/50.00i: Average 50 Mbps (VBR) FHD 1920 x 1080 59.94i/50i: Average 25 Mbps (VBR) HD 1280 x 720 59.94p/50.00p: Average 50 Mbps (VBR) HD 1280 x 720 59.94p/50.00p: Average 25 Mbps (VBR)
Audio Compression Method:MOV / P2: LPCM (24bit 2ch) MP4: AAC (16bit 2ch) AVCHD: Dolby Audio (16bit 2ch)
Interface | USB:USB LAN Conversion Adaptor: Yes (VW-UEA1)
LED Video Light | Average Illumination:Approx. 70 lx (1.0m)
LED Video Light | Irradiation Angle:Approx. 30°
LED Video Light | Color Temperature:Approx. 4600K
Accessory Shoe:Yes
Hand Grip:Yes (detachable)
IP Streaming:Unicast, Multicast
Live Streaming:Yes
Viewfinder:0.24-inch Wide EVF (About 1,560,000 dots)
Wi-Fi:Yes - integrated
Imaging
Image Sensor:1-Chip 1/2.5" MOS Sensor
Effective Sensor Resolution:8.29 MP
Gain:0 to 30 dB
Minimum Illumination:1.5 Lux at 1/30 Shutter Speed
White Balance Range:2000 to 15,000K
Lens
Focal Length:4.1 to 98.9mm
35mm Equivalent Focal Length:25 to 600mm
Optical Zoom Ratio:24x
Max Digital Zoom:32x ( in UHD 4K)
48x ( in 1080p)
Maximum Aperture:f/1.8 to 4
Optical Design:14 Elements in 11 Groups
Minimum Focusing Distance:Not Specified by Manufacturer
Filter Size:62 mm
Control Rings:Focus
Zoom
Image Stabilization:Optical
Digital
Focus Control:Autofocus
Manual Focus
Camera
Shutter Speed:1/6 to 1/8000 sec
Built-In ND Filter:Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Built-In Microphone Type:Stereo
Recording Media:2 x SDXC Card Slo
Recording
Recording Modes:H.265/MOV 4:2:0 10-Bit:
3840 x 2160p at 50/59.94 fps (200 Mb/s VBR)
3840 x 2160p at 23.98/25/29.97 fps (150 Mb/s VBR)
MOV 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97 fps (150 Mb/s VBR)
1920 x 1080p at 25/29.97 fps (200 Mb/s VBR)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (100 Mb/s VBR)
1920 x 1080i at 50/59.94 fps (100 Mb/s VBR)
1920 x 1080i at 50/59.94 fps (50 Mb/s VBR)
1920 x 1080p at 23.98/29.97 fps (50 Mb/s VBR)
H.265/MP4 4:2:0 10-Bit:
3840 x 2160p at 50/59.94 fps (100 Mb/s VBR)
3840 x 2160p at 50/59.94 fps (72 Mb/s VBR)
MP4 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97 fps (72 Mb/s VBR)
1920 x 1080p at 23.98/50/59.94 fps (50 Mb/s VBR)
AVCHD 4:2:0 8-Bit:
1920 x 1080p at 50/59.94 fps (25 Mb/s VBR)
1920 x 1080i at 23.98/50/59.94 fps (21 Mb/s VBR)
1920 x 1080i at 50/59.94 fps (17 Mb/s VBR)
1280 x 720p at 50/59.94 fps (8 Mb/s VBR)
P2 4:2:2 10-Bit:
1920 x 1080p at 50/59.94 fps (50 Mb/s VBR)
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s VBR)
1280 x 720p at 50/59.94 fps (25 to 50 Mb/s VBR)
Audio Recording:MOV: 2-Channel 24-Bit LPCM Audio
MP4: 2-Channel 24-Bit AAC Audio
AVCHD: 2-Channel 24-Bit AC-3 Audio
IP Streaming:RTMP, RTP, RTSP: 320 x 180 to 1920 x 1080
Interfaces
Video Connectors:1 x BNC (3G-SDI) Output
1 x HDMI Output
Audio Connectors:1 x 1/8" / 3.5 mm Stereo Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
Other I/O:1 x USB Micro-B Input
1 x 2.5 mm Output
1 x RJ45 Camera Interface Data, Control Input/Output
Wireless Interfaces:Wi-Fi Video Output, Audio Output
Display
Display Type:Articulating Touchscreen LCD
Size:3.5"
Resolution:2,760,000 Dot
EVF
EVF Display Type:LCD
Screen Size:.24"
Power
Power Consumption:7.9 W
General
Accessory Mount:1 x Cold Shoe Moun
Tripod Mount:1/4"-20 Female
Built-In Light:Yes
Dimensions:10.12 x 6.26 x 5.08" / 25.7 x 15.9 x 12.9 c
Weight:3.31 lb / 1.5
Warranty Length:Limited 1-Year Warranty
Packaging Info
Package Weight:5.955 lb
Box Dimensions (LxWxH):12.9 x 11 x 8.6"
