Pro field mixer 4 XLR in/ 4 Output with audio return, 6 AA batteries or DC12V
-
4 balanced XLR line/mic inputs and pan controls
-
Switchable 48V phantom power and limiting
-
Professional quality VU meters
-
2 balanced XLR outputs (line/mic switchable)
-
Stereo mini-jack output for DV cameras
-
10-pin & mini-jack Camera Return & headphone out with level control
-
6x AA battery powered
-
Optional A/C adapter

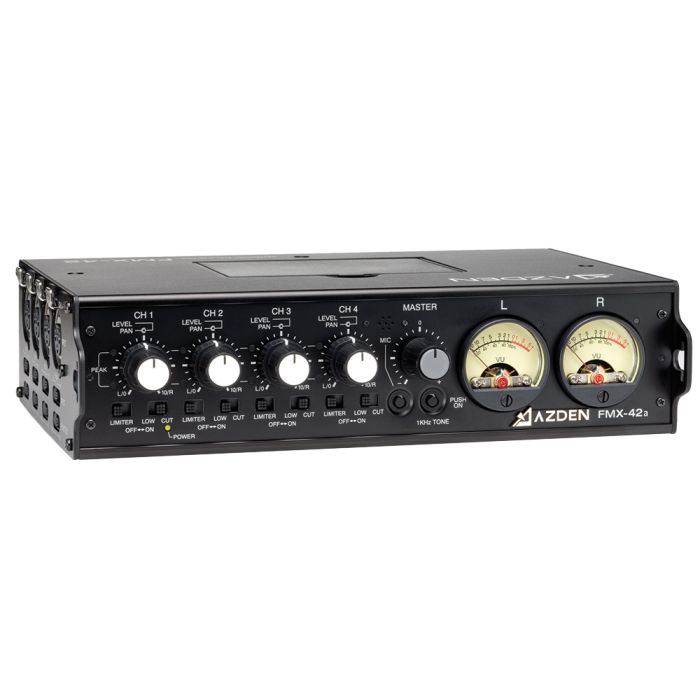

Having 4 balanced XLR line/mic inputs with individual level and pan controls, the FMX-42a provides switchable (per channel) 48V phantom power and limiting, professional quality VU meters for accurate level setting, master level control, 1k tone generator, 2 balanced XLR outputs (line/mic switchable), stereo mini-jack output for DV cameras, 10-pin Camera Return, mini-jack Camera Return and a headphone monitor with level control.
The 10-pin camera return may also be used as a secondary stereo output, independent from the mixer's main XLR outputs, using Azden's MX-10 Cable.
The FMX-42a can be powered by either 6 internal “AA” batteries or an optional 12V DC external supply (Locking 4-Pin Hirose connector). A ballistic nylon carrying case is included.
