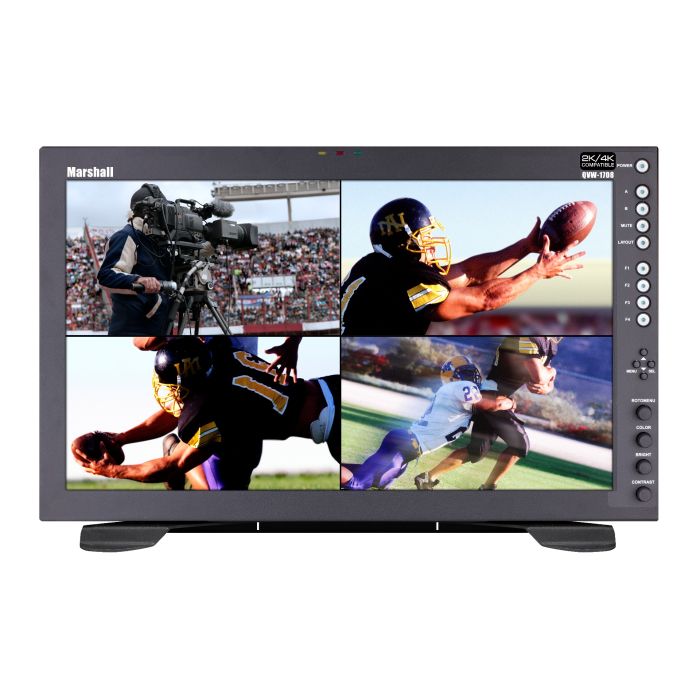

Marshall Electronics Desk Top Quad View 17" Native Resolution. 4K Quad HDMI (IMD)"

The Marshall Electronics QVW-1708-HDI, part of their Quad Viewer series of rack mount monitors, is a 6RU 17" Full Resolution Rack-mountable Desktop Monitor with Quad Input, 2K/4K compatibility, and advanced IMD features. It can function as a single display supporting inputs up to 4K, or in Quad View display mode, supporting (4) inputs, with each quadrant displaying up to 1920 x 1080.

You can mount the QVW-17083-HDI in any standard EIA 19-inch equipment rack. Its attached rack ears can be adjusted, providing user control over the viewing angle. A VESA standard 75mm hole pattern also allows for custom mounting installations.

Quad-Viewer Feature - Allows viewing of 4 inputs on the screen at once. Each input source is scaled and positioned in real-time so that all 4 inputs can be seen. Besides the standard Quad layout, there are 3 other layouts (including Full Screen) to choose from.

Features:

• Convenient, intuitive front panel controls in addition to control via network
• Quad 3GSDI inputs with active loop-through and auto format detection
• 1920 x 1080 Native Display (16 x 9)
• Accepts Input Resolutions Up to 4096 x 2160
• IMD - In Monitor Display Functions
• Area Markers
• Hard Tally + Soft Tally
• Network Control via Ethernet
• Presence indicators for TC, CC (608/708), Audio
• Bar Display for Embedded Audio, also Timecode Display
• RS-485 in/out/host ports allow daisy-chaining IMD and display functions
• Pixel-to-Pixel Mode
• Compatible with CalMAN 5 Calibration Technology
• IMD Control via Ethernet or RS-485 serial data
• Status Display Shows True Format / Frame Rate
• Rack Ears Included
• In-field firmware update
