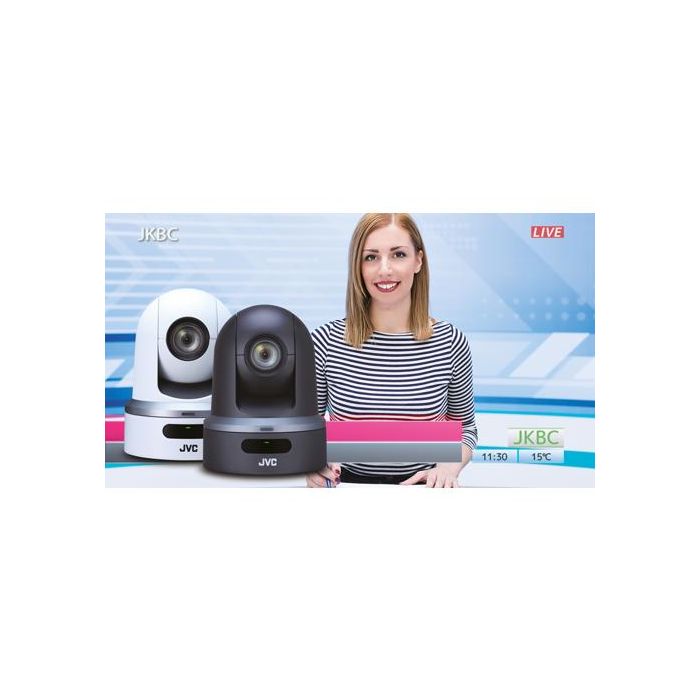

JVC KY-PZ100WEBC Robotic PTZ IP Production Camera (White) with Graphic Overlay

Request for Price
SKU
KY-PZ100WEBC

Product Highlights :

  • 1/2.8" CMOS Sensor, 1080i/p, 720p
  • Remote Pan, Tilt, and Zoom
  • 30x Optical Zoom
  • 0.01 Lux in LoLux Mode
  • Built-in graphics overlay capability




JVC’s first robotic pan, tilt and zoom video production camera, the KY-PZ100, features JVC’s unique IP communications engine, providing network connection via Wi-Fi, 4G/LTE or LAN. Ideal for studio or field use, the PTZ camera offers all the IP connectivity from JVC’s range of live-streaming camcorders, plus a unique built-in graphics overlay capability, with full-screen graphics ideal for robotic applications.


Advanced IP network communication and live HD streaming

The camcorder features JVC's latest IP communications engine, giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or SD resolutions, depending on available bandwidth. Connect your camera to an optional Wi-Fi or 4G/LTE modem and share your program with an audience anywhere in the world via content delivery networks such as YouTube, Facebook Live, and other cloud services.

KY-PZ100WEBC - Specification

Specs
Camera Front-End Specifications
Image Sensor (inch):1/2.8 Inch CMOS
Mega Pixels:13
Shutter speed:1/8 to 1/10000
Image Sensor (inch):1/2.8 Inch CMOS
Number of Sensors:1
Mega Pixels:13
Gain in dB:0 to 48
Shutter speed:1/8 to 1/10000
White Balance modes:FAW, AWA, 3200K, 5600K, Manual
Optical Specifications
Lens mount:Internal
Dynamic Zoom x times:12
Lens ratio from / to:4.3mm to 129mm
Auto Focus:Yes
Build in ND Filters:
Lens mount:Internal
Optical Zoom X times:30
Dynamic Zoom x times:12
Lens F Number:1.6 to 4.7
Lens ratio from / to:4.3mm to 129mm
Lens ratio equivalent to 35mm:31mm to 915mm
Auto Focus:Yes
Optical Image stabilization:Yes
Build in ND Filters:
PTZ Head Features
PAN Angle in degree +/-:175
PAN Speed with POE+ max degree/sec.:400
TILT Speed with AC Adapter max degree/sec.:300
Preset Positions:100
PAN Angle in degree +/-:175
PAN Speed with AC Adapter max degree/sec.:480
PAN Speed with POE+ max degree/sec.:400
TILT Angle in degree:-30 to 90
TILT Speed with AC Adapter max degree/sec.:300
TILT Speed with POE+ max degree/sec.:200
Preset Positions:100
Recording Formats
Media:mircoSDHC/microSDXC
Recording slots:1
Recording Resolution Formats:
Resolution 1440 x 1080:Yes, 60i/50i
Recording Data rate 1:5, 18, 28Mbps
Recording Data rate 3:50Mbps (XHq/YUV422)
Audio Recording modes:LPCM 2ch, 48 kHz/16 bit (HD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy)
Media:mircoSDHC/microSDXC
Media Class:Class 10
Recording slots:1
Encoder:H.264
IP Section of the Product
IP Main Connection:USB A Host, Ethernet LAN RJ45 1000Base-T with POE+
IP Features Live-Streaming:Yes
IP Features FTP:Yes
Live-Streaming Protocols:RTMPS,RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI
Live-Streaming Multicast:Yes
Live-Streaming and simultaneous REC:Yes
FTP Protocol formats:FTP / SFTP / FTPS
Note for all kind of USB Adapters:The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!
WIFI Dongle 1:Sitecom WLA.1001
WIFI Dongle 3:ASUS USB1200AC /Realtek RTL8812AU
WIFI Dongle 5:EDIMAX EW-781UTC /Realtek RTL8811AU
WIFI Dongle 7:TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
Recommendation for Ethernet adapters:
Ethernet Dongle 2:Sitecom LN-030 V2 not Sitecom LN-030 V3
Ethernet Dongle 4:D-LINK DUB-E100 (rev C1)
Recommendation for 3G/4G (LTE) Adapters:Dear Customer, for the most countries we have a recommendation of adapters, please download of info sheet for LTE support, below you find a special recommendation, which should work in the most countries.
LAN Terminal:Yes, RJ45 1000Base-T with POE+ /48V support
IP Main Connection:USB A Host, Ethernet LAN RJ45 1000Base-T with POE+
IP Connection supports:Ethernet, WIFI - and LTE USB Adapters
IP Features Live-Streaming:Yes
IP Features Remote:Yes, via RM-LP100 or Web-Browser no apps needed
IP Features FTP:Yes
Live-Streaming Bitrates:0.3,0.8,1.5, 2.5, 3,5,8,12,16, 20Mbps
Live-Streaming Protocols:RTMPS,RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI
Live-Streaming Single cast:Yes
Live-Streaming Multicast:Yes
Live-Streaming reconnect:Yes
Live-Streaming and simultaneous REC:Yes
Live-Streaming Pre-sets of destinations:4
FTP Protocol formats:FTP / SFTP / FTPS
FTP servers presets:4
Note for all kind of USB Adapters:The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!
Recommendation for WIFI USB Adapters (EU only):Please Note: Sometimes the Manufacturers change the Revision of the Chip-sets, but product name not changed, we can´t track such issues so may its possible that such a dongles even its mentioned here, may not work. The Adapters below are work able in the 2,4 GHz and 5 GHz infrastructure.
WIFI Dongle 1:Sitecom WLA.1001
WIFI Dongle 2:EnGenius EUB1200AC /Realtek RTL8812AU
WIFI Dongle 3:ASUS USB1200AC /Realtek RTL8812AU
WIFI Dongle 4:D-LINK DWA-172 (revA1) /Realtek RTL8811AU
WIFI Dongle 5:EDIMAX EW-781UTC /Realtek RTL8811AU
WIFI Dongle 6:D-LINK DWA-171(revA1) /Realtek 8811AU
WIFI Dongle 7:TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
WIFI Dongle 8:Wideland (over Amazon) ACWIFI DEWIFIC001A
IN-OUT´s Connections
OUT HDSDI:Yes, 3G
OUT HDMI:Yes
IN Audio AUX:Yes, 3.5mm mini jack x1 (MIC balanced mono/ unbalanced Stereo with Power or LINE Balanced Mono/ Unbalanced Stereo
Wired remote IN:Yes, RS232C IN/OUT 8 PIN Mini DIN
PTZ Serial Interface RS-422:Yes, Serial over RJ-45 connector
PTZ Supported Protocols:Serial, PelcoD, IP JVC, IP others
OUT HDSDI:Yes, 3G
OUT HDSDI Format max.:1080/60p,50p 8 Bit 4:2:2 EE
OUT HDMI:Yes
OUT HDMI Format max.:1920x1080 60/50p 8 Bit 4:2:2
IN Audio AUX:Yes, 3.5mm mini jack x1 (MIC balanced mono/ unbalanced Stereo with Power or LINE Balanced Mono/ Unbalanced Stereo
Wired remote IN:Yes, RS422 Serial Control (RJ-45)
Wired remote IN:Yes, RS232C IN/OUT 8 PIN Mini DIN
USB HOST:Yes
PTZ Serial Interface RS-422:Yes, Serial over RJ-45 connector
PTZ Serial Interface RS-232C in/out:Yes, over 8 PIN mini DIN
PTZ Supported Protocols:Serial, PelcoD, IP JVC, IP others
Power and Enviroment Spec´s
Power AC:Yes, via AC/DC Adapter
Battery types:
Operation Temperature in Celsius degrees:0 to 40
Operation Humidity in %:30 to 80
Power AC:Yes, via AC/DC Adapter
Power DC:Yes, 12 Volt or DC42V to 57V POE+ over Network LAN
Mechanical Informations
Weight in kg:2
Measurements (WxHxD) in mm:W 154 x H 200.7 x D 191
Weight in kg:2
Measurements (WxHxD) in mm:W 154 x H 200.7 x D 191
Include Package
AC/DC adapter:Yes
Cable 1:Yes, Power cord
Instructions:Yes
Remote Control unit:Yes, IR controller
Fall Prevention wire:Yes
Ceiling mount bracket:Yes
Additional s:Yes, Mounting screws, for Fall Prevention´s
AC/DC adapter:Yes
Cable 1:Yes, Power cord
Instructions:Yes
Additional s:Yes, Mounting screws, for Fall Prevention´s
Remote Control unit:Yes, IR controller
Ceiling mount bracket:Yes
Fall Prevention wire:Yes
Template:Yes
Recording Resolution Formats
Resolution 1920 x 1080:Yes, 60p/50p/30p/25p/60i/50i
Resolution 1440 x 1080:Yes, 60i/50i
Resolution 1280 x720:Yes, 60p/50p/30p/25p
Recording Data rate 1:5, 18, 28Mbps
Recording Data rate 2:35Mbps (UHQ)
Recording Data rate 3:50Mbps (XHq/YUV422)
Audio Channels:2
Audio Recording modes:LPCM 2ch, 48 kHz/16 bit (HD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy)
Audio Filters:Yes, Wind Cut, Gains
Recommendation for Ethernet adapters
Ethernet Dongle 1:EDIMAX EU-4208
Ethernet Dongle 2:Sitecom LN-030 V2 not Sitecom LN-030 V3
Ethernet Dongle 3:Hamlet HNU2GTX
Ethernet Dongle 4:D-LINK DUB-E100 (rev C1)
Ethernet Dongle 5:
Recommendation for 3G/4G (LTE) Adapters:Dear Customer, for the most countries we have a recommendation of adapters, please download of info sheet for LTE support, below you find a special recommendation, which should work in the most countries.
LTE Specials 1:Universal LTE dongle Huawei E8372LTE Wingle so far works with Telekom/O2/Vodafon , others not tested yet.
LAN Terminal:Yes, RJ45 1000Base-T with POE+ /48V support
Battery types
Power consumption:1.6 Ampere (AC-Adapter), 04 Ampere (POE+)
Operation Temperature in Celsius degrees:0 to 40
Storage Temperature in Celsius degrees:-20 to 50
Operation Humidity in %:30 to 80
Storage Humidity under %:85
General Editing Note
NOTE::Simulated pictures.The values for weight and dimensions are approximate .E.&O.E. Design and specifications subject to change without notice.
  • JVC KY-PZ100BE Robotic PTZ  Camera (Black)
  • AC/DC adapter
  • Power cord
  • Mounting screws
  • IR controller
  • Ceiling mount bracket
  • Fall Prevention wire
  • Template
