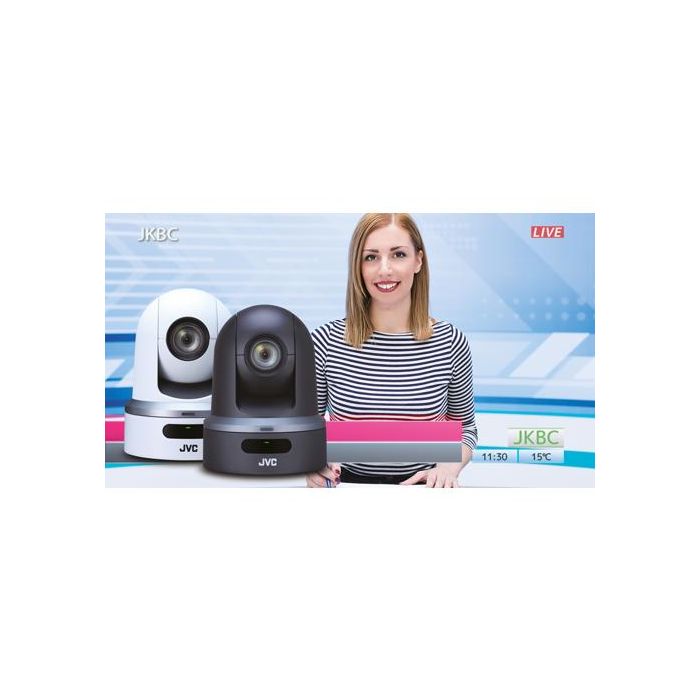

JVC KY-PZ100BEBC Robotic PTZ IP Production Camera (black) with Graphic Overlay


Product Highlights :

  • 1/2.8" CMOS Sensor, 1080i/p, 720p
  • Remote Pan, Tilt, and Zoom
  • 30x Optical Zoom
  • 0.01 Lux in LoLux Mode
  • Built-in graphics overlay capability

JVC’s first robotic pan, tilt and zoom video production camera, the KY-PZ100, features JVC’s unique IP communications engine, providing network connection via Wi-Fi, 4G/LTE or LAN. Ideal for studio or field use, the PTZ camera offers all the IP connectivity from JVC’s range of live streaming camcorders, plus a unique built-in graphics overlay capability, with full screen graphics ideal for robotic applications.

Advanced IP network communication and live HD streaming

The camcorder features JVC's latest IP communications engine, giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or SD resolutions, depending on available bandwidth. Connect your camera to an optional Wi-Fi or 4G/LTE modem and share your programme with an audience anywhere in the world via content delivery networks such as YouTube, Facebook Live, and other cloud services.


  • Broadcast Info Overlay
  • Saves overlay info at every preset position (up to 10)
  • Broadcaster logos, “Live” mark, watermark, time and temperature can be overlaid.
  • Full-Screen Graphics Overlay and Slide Show
  • Up to 50 full-screen (max. 23MB) custom graphics
  • Various language characters supported with provided software SDP Generator.
  • Selectable pre-loaded logos.
  • 3G-SDI and HDMI digital outputs
  • Optical zoom lens with 30x zoom ratio (4.3-129mm, f/1.6~4.7)
  • Robotic pan, tilt and zoom
  • Full HD 1080p, 1080i, 720p video
  • 1/2.8-inch CMOS sensor (2.2 million pixels)
  • 2 channels audio (or 1 channel balanced audio w/phantom power)
  • USB host connection for WiFi or 4G LTE adapter
  • Can memorize 100 preset settings and positions
  • IR controller
  • Can be mounted upside-down or right-side-up
  • Remote control via RS-232C / RS-422, or via IP controller
  • Micro SDHC/SDXC memory card recording
  • LAN connector supports Power over Ethernet
  • Advanced IP communications capability:Streaming with SMPTE 2022 forward error correction. Advanced Zixi reliable communication with ARQ, FEC and adaptive bitrate control. Low latency streaming. RTMP /RTMPS streaming directly to content delivery network (YouTube, Ustream, etc.)

KY-PZ100BEBC - Specification

Camera Front-End Specifications
Image Sensor (inch):1/2.8 Inch CMOS
Mega Pixels:13
Shutter speed:1/8 to 1/10000
Optical Specifications
Lens mount:Internal
Dynamic Zoom x times:12
Lens ratio from / to:4.3mm to 129mm
Auto Focus:Yes
Build in ND Filters:
PTZ Head Features
PAN Angle in degree +/-:175
PAN Speed with POE+ max degree/sec.:400
TILT Speed with AC Adapter max degree/sec.:300
Preset Positions:100
Recording Formats
Recording slots:1
Recording Resolution Formats:
Resolution 1440 x 1080:Yes, 60i/50i
Recording Data rate 1:5, 18, 28Mbps
Recording Data rate 3:50Mbps (XHq/YUV422)
Audio Recording modes:LPCM 2ch, 48 kHz/16 bit (HD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy)
IP Section of the Product
IP Main Connection:USB A Host, Ethernet LAN RJ45 1000Base-T with POE+
IP Features Live-Streaming:Yes
IP Features FTP:Yes
Live-Streaming Multicast:Yes
Live-Streaming and simultaneous REC:Yes
FTP Protocol formats:FTP / SFTP / FTPS
Note for all kind of USB Adapters:The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!
WIFI Dongle 1:Sitecom WLA.1001
WIFI Dongle 3:ASUS USB1200AC /Realtek RTL8812AU
WIFI Dongle 5:EDIMAX EW-781UTC /Realtek RTL8811AU
WIFI Dongle 7:TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
Recommendation for Ethernet adapters:
Ethernet Dongle 2:Sitecom LN-030 V2 not Sitecom LN-030 V3
Ethernet Dongle 4:D-LINK DUB-E100 (rev C1)
Recommendation for 3G/4G (LTE) Adapters:Dear Customer, for the most countries we have a recommendation of adapters, please download of info sheet for LTE support, below you find a special recommendation, which should work in the most countries.
LAN Terminal:Yes, RJ45 1000Base-T with POE+ /48V support
IN-OUT´s Connections
IN Audio AUX:Yes, 3.5mm mini jack x1 (MIC balanced mono/ unbalanced Stereo with Power or LINE Balanced Mono/ Unbalanced Stereo
Wired remote IN:Yes, RS232C IN/OUT 8 PIN Mini DIN
PTZ Serial Interface RS-422:Yes, Serial over RJ-45 connector
PTZ Supported Protocols:Serial, PelcoD, IP JVC, IP others
Power and Enviroment Spec´s
Power AC:Yes, via AC/DC Adapter
Battery types:
Operation Temperature in Celsius degrees:0 to 40
Operation Humidity in %:30 to 80
Mechanical Informations
Weight in kg:2
Measurements (WxHxD) in mm:W 154 x H 200.7 x D 191
Include Package
AC/DC adapter:Yes
Cable 1:Yes, Power cord
Remote Control unit:Yes, IR controller
Fall Prevention wire:Yes
Ceiling mount bracket:Yes
Additional s:Yes, Mounting screws, for Fall Prevention´s
Items Included:
  • JVC KY-PZ100BE Robotic PTZ  Camera (Black)
  • AC/DC adapter
  • Power cord
  • Mounting screws
  • IR controller
  • Ceiling mount bracket
  • Fall Prevention wire
  • Template
