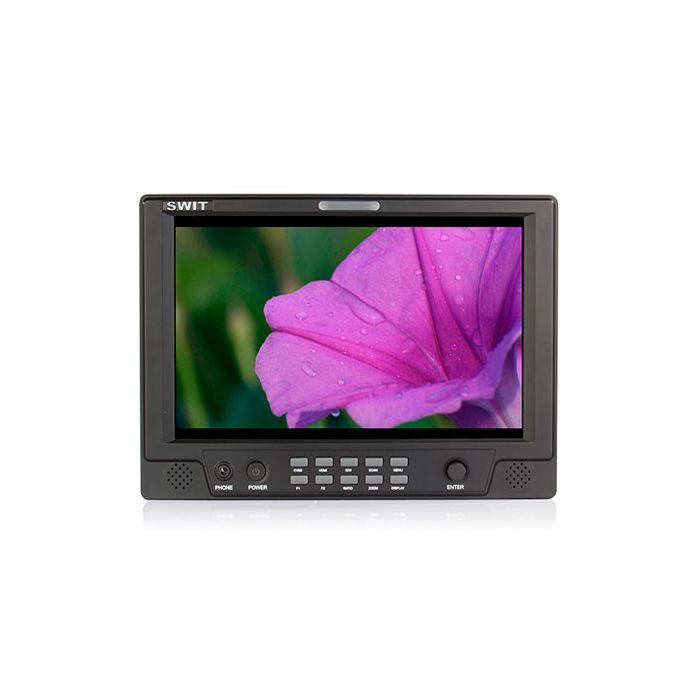

SWIT S-1090C 9-inch HDMI On-camera LCD Monitor

SKU
S-1090C
Request for Price

Discontinued

The S-1090C adopts a 9-inch FFS (Fringe field switching) LCD panel, with 1280×800 resolution and LED backlight, 700:1 contrast.

The LCD of S-1090C is overlaid with a glass, protects the screen against scratch or broken.

The monitor supports HDMI embedded audio (ch-1 and ch-2), and L&R analog audio output via 3.5mm headphone socket or speaker

You can select the scale of safe area frame from 80%, 85%, 90% and 95% in the menu system. And under HD input, the monitor can display a center 4:3 marker, to help composition the image when using HD recording while SD broadcasting.

The monitor provides a 4-pin XLR socket of DC 6.5-17V power input, and can be fixed on V-mount, Gold mount or DV battery plate.

Various types of DV battery plates are provided for optional, with snap-on designed, quick released and interchangeable with each other.

There is front and rear TALLY lights with 3 colors display, and controlled via DB-9 port on the rear panel.

The monitor provides 1/4”-20 screw threads on bottom, left and right side, for installing on camera handle or rigs. By S-7390 dual monitor stand, the 2 S-1090C monitors can be fixed on cranes.

For outdoor using, you can apply a sun hood on the monitor. The sun hood can be easily installed via the left and right screw threads, or directly by Velcro tapes.

S-1090C offers the simple package and luxury package for option.

Simple package includes:
1x Battery plate (V-mount or Gold mount or snap-on DV mount optional)
1x Cold shoe / Screw ball head (S-7301)
1x Sun hood (A-SH09)
1x LCD protective film (A-PF09)
1x 4-pin XLR power adaptor (A-PA02)

Luxury package includes additional:
1x Articulating arm 1/4" to 1/4" (S-7380)
1x HDMI cable with mini HDMI adaptor (S-7107)
1x D-tap to 4-pin XLR DC cable (S-7101)
1x Carrying case (A-CC09)
