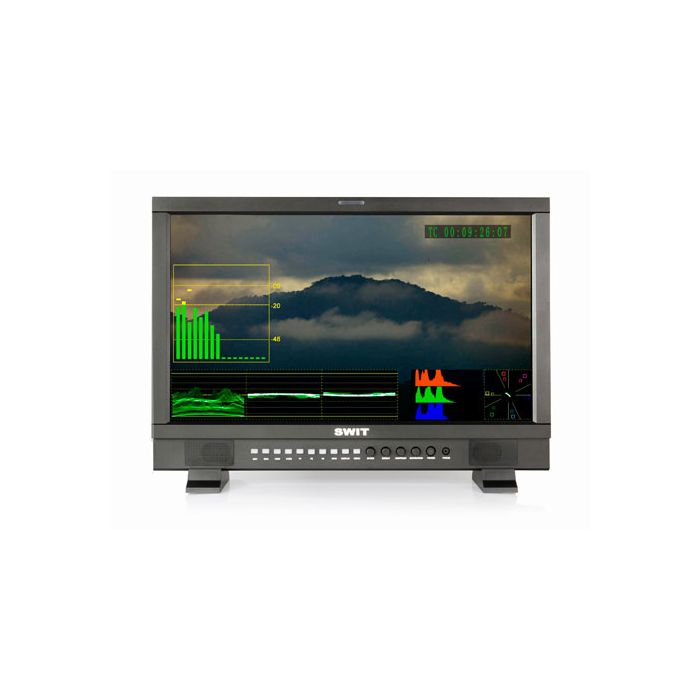

S-1221F 21.5-inch Full HD SDI/HDMI Waveform Studio LCD Monitor

The S-1221F adopts a 21.5-inch LCD panel, with Full HD 1920×1080 resolution and LED backlight, 1000:1 contrast. The viewing angle is Horizontal: 178° / Vertical: 178°

S-1221F can be used on site camera monitoring and broadcast studio technical monitoring. The LCD monitor offers accurate color reproduction for broadcast application.

The color temperature might get changed after years, and users can enter the menu to adjust the RGB Gain and Bias to calibrate the colors at any time.

SDI / HDMI / CVBS / HDMI→SDI

S-1221F studio/field monitor supports:
HD/SD-SDI input × 2
HD/SD-SDI loop output × 2
HDMI input × 1
HDMI loop output × 1
HDMI input converted to SDI output × 1
CVBS input × 1

The build-in conversion is used to broadcast and deliver the HDMI camera video. It’s same format conversion and supports the following HDMI formats:
480p, 576p, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)

S-1221F supports Waveforms display under both SDI and HDMI, including Y, Cb, Cr, R, G, B channels, and full scale display of each channel. The Vector scope and R/G/B histogram can be switched on/off independently to the waveforms.

The monitor displays SDI and HDMI embedded audio level meters, and supports full 16-ch meters under HDSDI input; 8-ch meters under SDSDI and HDMI input. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.
The ch-1 and ch-2 embedded audio can be output via 3.5mm headphone socket and speaker.

Under focus assist mode, the in-focused subject will be sketched out by red or blue lines. The focus assist is also available during the image zoom-in.

You can select the scale of safe area frame from 80%, 85%, 90% and 95% in the menu system. And under HD input, the monitor can display a center 4:3 marker, to help composition the image when using HD recording while SD broadcasting.

The organic glass A-PG22 is a specially designed accessory to protect the 21.5-inch LCD screen during transportation or stock.
It’s attached on the monitor housing frame by magnet, easy to uninstall.The monitor provides a 4-pin XLR socket of DC 11-17V power input, and can be fixed on V-mount or Gold mount battery plates for field using.
The battery mounts are optional purchase and easy to fix on by plug in and screw mount.

There are front TALLY lights for each screen, with 3 colors display, and controlled via DB-9 ports on the rear panel.

S-1221F monitor provides the standard 10×10cm VESA bracket installation, and you can mount the monitor onto 19-inch rack by the optional rack brackets A-RK22, 9U height occupied.
For desktop using, the monitor provides the stand feet, and a rotatable desktop VESA bracket A-VS00 is available for option.

S-1221F offers the following accessories as standard package:
1x 4-pin XLR power adaptor (A-PA03)
2x Desktop stand feet (A-DS00)
1x Magnetic LCD protective glass (A-PG22)

And the optional accessories:
V-mount Battery plate (S-7005S)
Gold mount Battery plate (S-7005A)
Rotatable VESA desktop bracket (A-VS00)
Rack mount bracket (A-RK22)
Dedicated Fly Case (A-FC22)
