The S-1242F adopts a 23.8-inch IPS LCD panel, with Full HD 1920×1080 resolution and LED backlight, 1000:1 contrast. The viewing angle is Horizontal: 178° / Vertical: 178°.
S-1242F can be used on site camera monitoring and broadcast studio technical monitoring. The LCD monitor offers accurate color reproduction for broadcast application.
The color temperature might get changed after years, and users can enter the menu to adjust the RGB Gain and Bias to calibrate the colors at any time.
S-1242F studio/field monitor supports:
HD/SD-SDI input × 2
HD/SD-SDI loop output × 2
HDMI input × 1
HDMI loop output × 1
HDMI input converted to SDI output × 1
CVBS input × 1
The build-in conversion is used to broadcast and deliver the HDMI camera video. It’s same format conversion and supports the following HDMI formats:
480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
S-1242F supports Waveforms display under both SDI and HDMI, including Y, Cb, Cr, R, G, B channels, and full scale display of each channel. The Vector scope and R/G/B histogram can be switched on/off independently to the waveforms.
The monitor displays SDI and HDMI embedded audio level meters, and supports full 16-ch meters under HDSDI input; 8-ch meters under SDSDI and HDMI input. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.The ch-1 and ch-2 embedded audio can be output via 3.5mm headphone socket and speaker.
Under focus assist mode, the in-focused subject will be sketched out by red or blue lines. The focus assist is also available during the image zoom-in.
S-1242F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed.

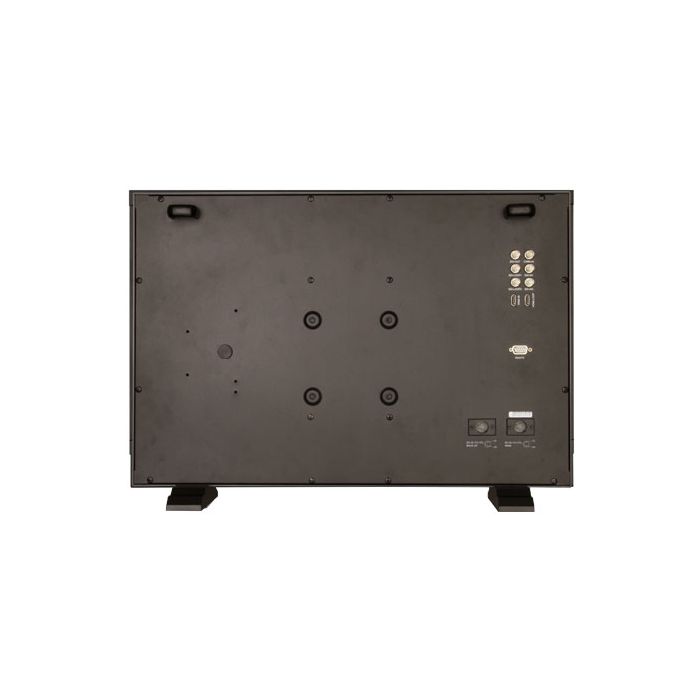

The UMD/TALLY signal inputs via DB9(RS485) port on the rear panel of the monitor.
You can select the scale of safe area frame from 80%, 85%, 90% and 95% in the menu system. And under HD input, the monitor can display multiple scale markers from 4:3, 13:9, 14:9, 15:9, 1.85:1 and 2.35:1, to help the composition the image of multi-purpose production.
The monitor provides 2x 4-pin XLR sockets of DC 11-17V power input, for main and backup DC input, and can be fixed on V-mount or Gold mount battery plates for field using.
There are front TALLY lights for each screen, with 3 colors display, and controlled via DB9 ports on the rear panel.
S-1242F monitor provides the standard 10×10cm VESA bracket installation;
For desktop using, the monitor provides the stand feet, and a rotatable desktop VESA bracket A-VS22 is available for option.
S-1242F offers the following accessories as standard package:
1x 4-pin XLR power adaptor
2x Desktop stand feet
1x Gold mount/V-mount Battery plate (S-7004A/S)
And the optional accessories:
Rack mount bracket (A-RK22)
