S-2060 Chip Array LED On-camera Light
- Chip Array LED technology
- Single shadow, glareless
- Super high CRI =97
- 30W, 1300Lux @ 1 meter, dimmable
- 60° wide beam angle, equally spread
- Fresnel lens, raise to 4000Lux@1m
- 2700K-5600K continuously adjustable
- 6-17V wide input voltage
- D-tap power lead
- Glass Fiber strong and durable housing
- Screw and cold shoe mount
S-2060 is a new light of SWIT Chip Array LED family, of flagship design and features.
Chip Array LED is the SWIT unique new generation LED technology, which integrates the LEDs into a chip with high brightness output but in smaller size, and the most remarkable, it offers a equally spread, soft, non-glaring light. It is called “the halogen bulb feeling LED technology”, and will be more suitable for ENG on-camera lighting.
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. Max value Ra=100.
The normal LED light has Ra 80-85 CRI, while S-2060 offers the super high CRI value of Ra 97, comparable to the traditional halogen bulb light, and will not lost the object original colors.
S-2060 generate 1300Lux center illuminance at 1 meter distance, equivalent to a 110W halogen bulb.
And the Chip Array LED generate a area light source, more equal and soft than the LED bulb array, and people will not feel glaring when being close interviewed.
The traditional LED lights can get a high brightness center light, but will dropped down quickly around, which will generate a visible lighting border in the image. In comparison, the S-2060 Chip Array LED generates a 60° wider beam angle, equally spread from the center to edge, and suitable for HD shooting.
S-2060 offers a Fresnel focus lens, to increase the center illuminance to 4000Lux, and the beam angle will be contracted to 23°.

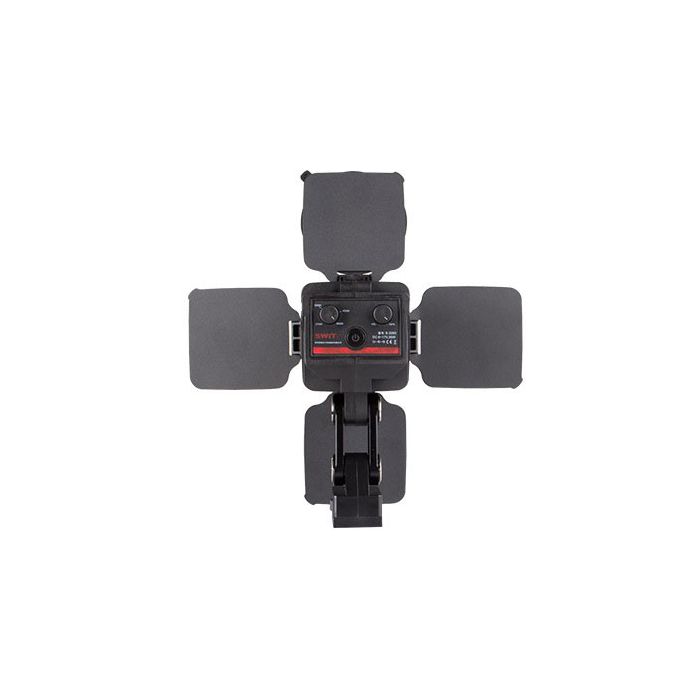

The dimmer knob is on the rear panel of the light, and can be adjust from 10% to 100% illuminance.
The light output is flick free when dimming, and color temperature stays stable. The S-2060 has bi-color Chip Array LEDs, and the color temperature can be continuously adjusted from 2700K to 5600K, by revolving the knob on the rear panel of the light.
The S-2060 accepts 6-17V wide voltage input, so you can get power from 14.4V V-mount/Gold Mount batteries or 7.2V DV batteries.The light package goes with a D-tap to pole-tap cable (S-7104), to plug into the DC-IN port of S-2060 and get power from D-tap power output sockets, such as batteries, battery plates, or camera handle. You can also select SWIT pole-tap to pole-tap DC cable (S-7108) to get power from pole-tap DC adaptors.
S-2060 can be fixed on camera via 1/4” screw head, and the package also goes with a spare cold shoe part for users to change the screw connector to cold shoe. When installed on ENG cameras, the light head angle can be adjusted forward and backward, up and down, by the connection rod base.
S-2060 has 4 leaf all metal barn doors, strong and durable.
The barn doors are bayonet mount design, can be revolve and take down like camera lens. S-2060 will provide color filter and diffuser cover accessories to be installed on.
- S-2060 chip array LED on-camera light
- 1x D-tap to Pole DC power cable (S-7104)
- 1x Spare cold-shoe base
- 1x Portable bag
