SWIT S-8260A 172Wh High Load Gold Mount Battery Pack

SKU
S-8260A
Request for Price

PRODUCT HIGHLIGHTS

  • Rechargeable Li-ion battery pack
  • 14.4 V, 172 Wh capacity
  • Maximum output of 180 W, 15 A
  • D-tap DC output and charging socket
  • 4-level LED power indicator
  • Gold Mount plate
  • Built-in multiple protective circuit design

Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely.
Using S-8260A high-load battery, you can get MAX 180W/15A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.

Consists of 24pcs 18650 battery cells, and reaches 172Wh / 12Ah high capacity. Can run approx 6 hours for normal 30W ENG cameras; and approx 2 hours for ARRI Alexa camera

S-8260A is compatible with AntonBauer Gold mount type power system and we adopt the high quality connection bolts that ensure the reliable mounting.

A D-tap DC output socket is equipped on the top side of S-8260A battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc. The Max Power from D-tap is 180W, 15A.

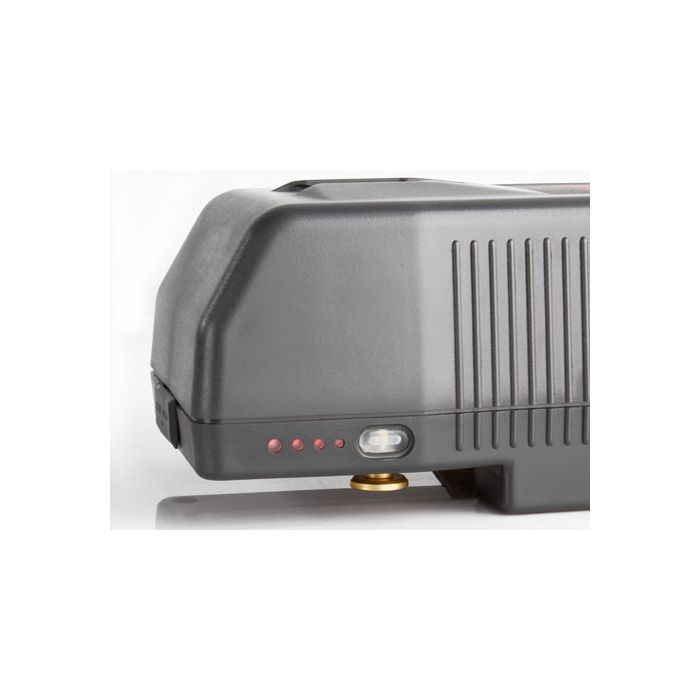

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
