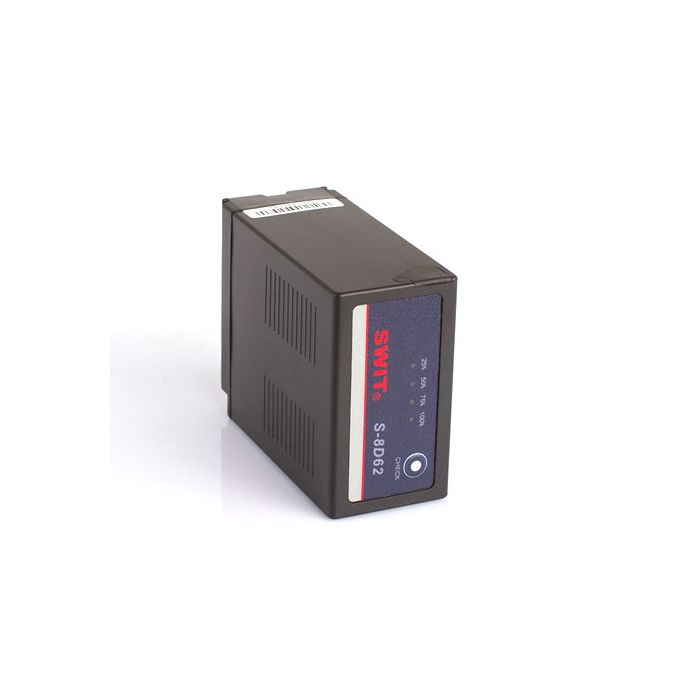

SWIT S-8D62 Panasonic CGA Series DV Camcorder Battery Pack

S-8D62 is the replacement battery for Panasonic CGAD54S, compatible with Panasonic AG-HVX200, AG-HPX250, AG-DVX100, etc.

With 7.2V nominal voltage, the S-8D62 has 47Wh / 6.6Ah capacity, and can run approx 3 hours on AG-HPX250, and 6.5 hours on AG-DVX100 camcorder when LCD monitor is on.

A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8D62 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 30W, 4A.
The Pole-tap socket can also be used as charging input, by SWIT portable charger S-3010D.

The S-8D62 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

The S-8D62 can be charged on SWIT Dual channel charger S-3602P. It takes about 4 hours and 30 minutes to charge from empty to 100%.

And you can also use SWIT S-3010D Portable Pole-tap Charger for S-8D62. It will take 7 hours to fully charge.
