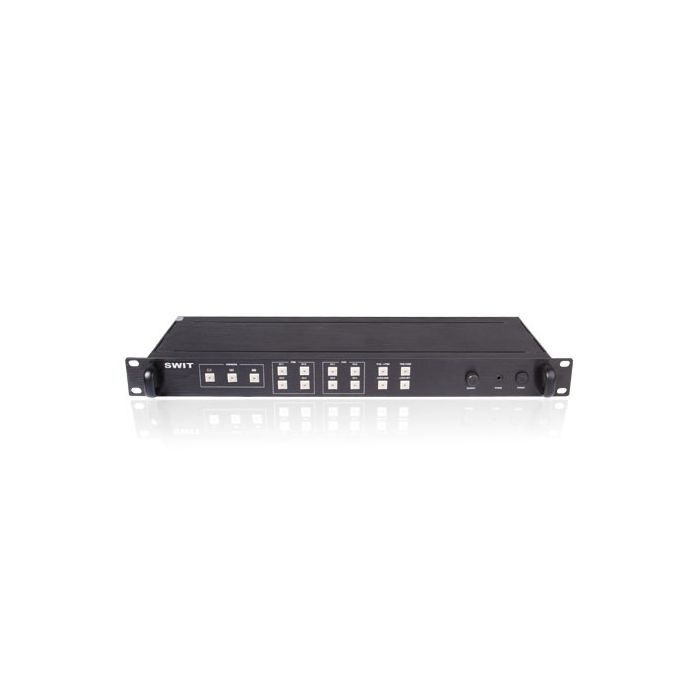

SWIT S-9204 4 SDI Multiviewer and Switcher

S-9204 is a solution of monitoring 4-ch SDI by a single HDMI monitor or television. There’re 3 display modes: Quad-split display, one channel full screen switching display, and PGM/PVW switcher mode display.It’s 19-inch 1U designed, and can be installed in standard broadcast racks.

Now you can use S-9204 as a basic SDI switcher in the field producing. It support PGM channel output via SDI, direct switching by pressing the channel buttons on the front panel, and supports PVW to PGM switching under the PGM/PVW display mode.

The HDMI multiview output supports 2 channels of SDI embedded audio meters display for each input channel. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB. And you can select the input channel to output SDI embedded audio via 3.5mm headphone socket.

The SDI timecodes of each input channel can be displayed under HDMI multiview output. And you can also edit the channel title for each input video easily by pressing the keys on the front panel of S-9204.The S-9204 can be powered via the 4-pin XLR socket of DC 12V input on the rear panel.
