Sachtler 1910 Cine 7+7 HD Fluid Head

SKU
1910
$6,954.00

Product Highlights:

  • 100mm Ball
  • Payload Boost Button
  • Sideload Quick Release & Camera Plate
  • 48.5 lbs Maximum Payload Capacity
  • 16 Step Counterbalance
  • Built-In Illuminated Bubble Level

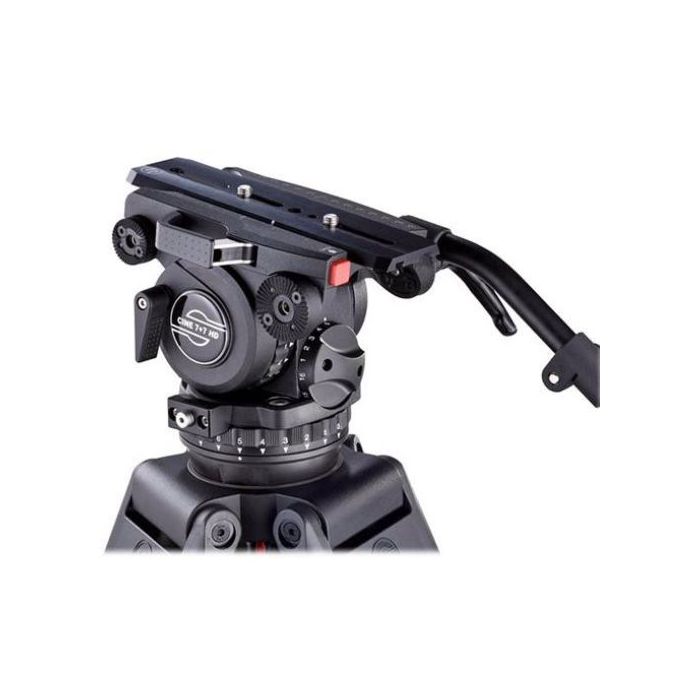

The Sachtler Cine 7+7 HD 1910 is a fluid head for film and video camcorders that features a 100mm ball for fast leveling without having to adjust the legs, and supports up to 48 lbs. This head provides two support ranges, 4.4 to 33 pounds for shooting with small and compact sized cameras, and 20 to 48.5 pounds for shooting with a medium sized cameras. The payload range is selected by using the payload boost button. The fluid head features 5.9" of balance adjustment with the sliding balance plate, and it incorporates a sideload QR mechanism.

The head also features independent horizontal and vertical drag adjustment, with each axis having seven levels of drag, plus a zero setting for no drag. The fluid head also provides 16 counterbalance settings. The counterbalance and drag settings are stepped and not variable, which makes them accurate and repeateable. The built-in illuminated bubble level confirms that your fluid head is level, and features a replaceable battery.

Sideload Clamp

The sideload clamping system combines the features of a quick release plate and a sliding balance plate. This makes it easier to mount and dismount the camera from the tripod than with just a sliding baseplate system, while still being able to balance the camera on the head using the 5.9 inches of adjustment the sliding baseplate allows.

Counterbalance

A 16-Step counterbalance ensures accurate and fast balancing of many camera systems 4 to 48 lbs.

Boost Button

There is a payload high and low adjustment called the boost button. This boost will offer a top heavy system a little extra control on radical pans and tilts.

7+7

This head offers very specific levels of 7 horizontal and 7 vertical drag for silky smooth pans and tilts.
Write Your Own Review
You're reviewing:Sachtler 1910 Cine 7+7 HD Fluid Head
Your Rating

Items Included :

  • Sachtler 1910 Cine 7+7 HD Fluid Head
  • Sachtler 1164 Sideload Plate M
  • Pan Bar
  • CR 2032 Battery
  • Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
More Information
SPECS



Sachtler Cine HD Series Video Head Specs

Camera Plate
Camera Plate Features Sliding Balance Plate
Camera Plate Type Sideload Plate M
Balance Plate Sliding Range 5.9" / 150 mm
Tripod Platform
Base Mount 100 mm Half Ball
Pan & Tilt
Drag Control Tilt: 7-Step Plus 0
Pan: 7-Step Plus 0
Vertical Tilt +90° to -80°
Panning Range 360°
Independent Pan Lock Yes
Independent Tilt Lock Yes
Physical
Load Capacity 20 to 48.5 lb / 9.1 to 22 kg
Counter Balance Incremental 16-Step
Bubble Level 1 x Illuminated
Operating Temperature -40 to 140°F / -40 to 60°C
Weight 7.3 lb / 3.3 kg
Packaging Info
Package Weight 12 lb
Box Dimensions (LxWxH) 16 x 14 x 13"
