Sachtler Ace Follow Focus

SKU
S2153-0001
$541.50

Product Highlights :

  • 15mm Rod-Mount; Double-Sided
  • Backlash-Free
  • 0.8 Mod Drive Gear & 35mm Friction Wheel
  • Reversible Gear Mechanism
  • Horizontally Adjustable Bridge
  • Includes 2 Interchangeable Marking Discs
  • Hard Stop Slider Button
  • Standard Focus Whip Socket

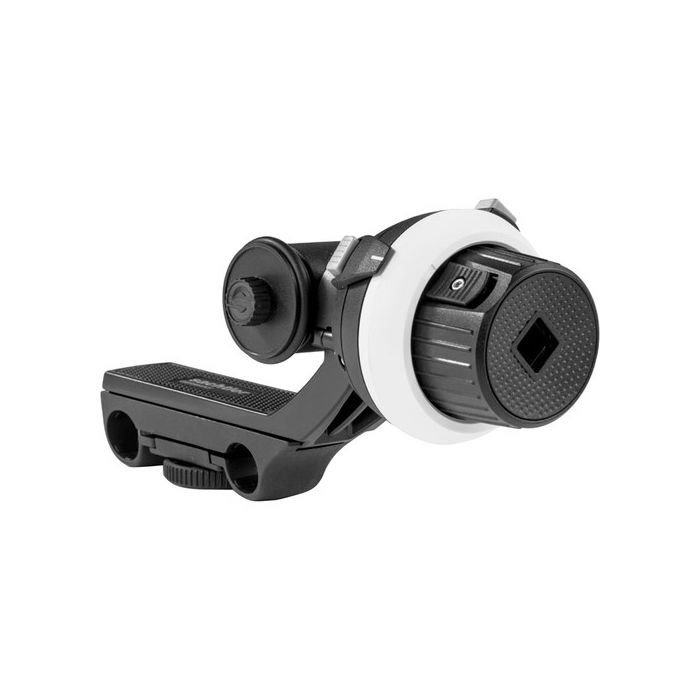

The Sachtler Ace Follow Focus is a backlash-free follow focus that's adjustable to support photo and video lenses of different makes and sizes. It features both a 0.8 Mod drive gear and a 35mm diameter friction wheel to accommodate lenses with and without gear rings. The drive gear and friction wheel are positioned on opposite sides of each other and can be swapped as necessary using an included Allen key. The direction of the gear mechanism is also reversible to support lenses with clockwise- and counterclockwise-moving focus rings.

The Ace Follow Focus features a 15mm rod clamp and can be mounted on either side of the lens. The follow focus bridge is adjustable horizontally so you can adjust to different size lenses. Two interchangeable marking discs are included that simply click into place when properly aligned on the handwheel, and they can easily be removed and replaced. Hard stops can be set using an easy to use hard stop slider button, especially useful for some modern photo lenses. The handwheel features a socket for an industry standard focus whip.

Key Features

  • 15mm rod-mount, double-sided, backlash-free follow focus
  • Features a 0.8 Mod drive gear and a 35mm diameter friction wheel
  • Reversible gear mechanism
  • Horizontally adjustable follow focus bridge
  • Includes two interchangeable marking discs
  • Hard stop slider button
  • Standard focus whip socket
Write Your Own Review
You're reviewing:Sachtler Ace Follow Focus
Your Rating

Items Included :

  • Sachtler Ace Follow Focus
  • 2 x Marking Discs
  • 0.8 Mod / 50 Tooth Drive Gear
  • Friction Wheel (35mm Diameter)
  • 3mm Allen Key
  • 1-Year Limited Warranty
  • Additional 1-Year Limited Warranty with Product Registration
More Information
SPECS
Included Drive Gear 0.8 MOD
Rod Standard 15 mm LWS / 60 mm Spacing
Number of Sides Single-Sided
Built-In Hardstops None
Witness/Index Mark Yes
Marking Disk Yes
Maximum Lens Diameter 5.03937007874016" / 128 mm
Switchable Handwheel Speed No
Handwheel Accessory Port Industry Standard
Weight 1 lb / 0.45 kg
Packaging Info
Package Weight 2.25 lb
Box Dimensions (LxWxH) 9.3 x 7.4 x 3.9"
