Sachtler Video 18 S2 Fluid Head

SKU
1811
$5,785.50

Product Highlights :

  • Supports 4 to 48.5 lb
  • Bowl Mount: 100mm
  • Counterbalance: 16-Step
  • Seven Steps of Drag
  • Sliding Balance Platform
  • L/R Pan Handle Rosettes
  • Illuminated Bubble Level
  • Touch & Go Quick Release Plate

Sachtler Video S Series Video Head Overview

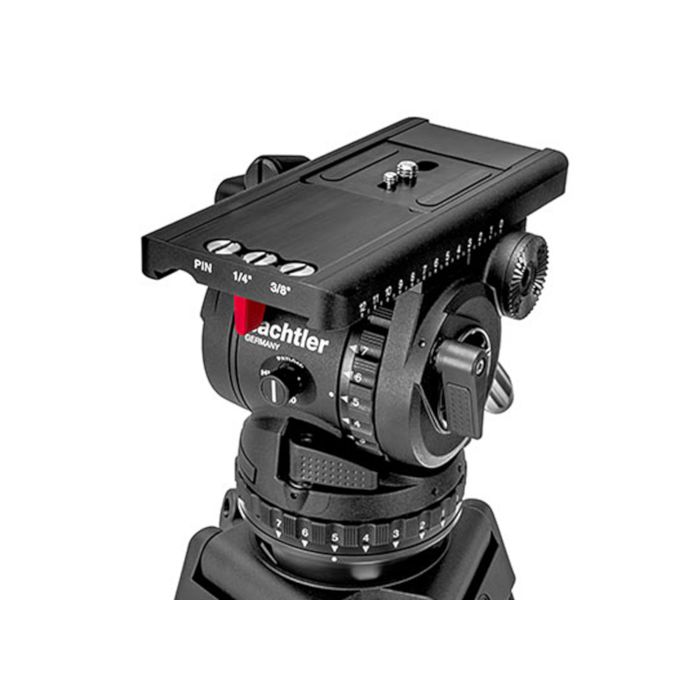

Able to handle DSLR setups weighing four pounds up to ENG and digital cinema cameras weighing 48.5 pounds, the Sachtler Video 18 S2 Fluid Head can fit into a wide range of video productions. Sixteen steps of counterbalance and seven steps of pan and tilt drag, along with locks for each axis, let you easily customize the response of the Video 18 S2 to fit your application, be it studio or field production.

The top of the Video 18 S2 head is dominated by a sliding balance platform that accepts Sachtler's convenient Touch & Go quick release camera plate. Once the plate is secured, the entire platform adjusts to balance your camera setup. At the front of the platform, parking spaces for 1/4"-20, 3/8"-16, and registration pin screws are available for when they are not being used. Both sides of the head feature rosette mounts for pan handles. A right-side pan handle is included with the Video 18 S2. The base of the head terminates in a 100mm bowl mount for coupling with industry-standard tripods, jibs, sliders, or other grip equipment that feature 100mm bowls.

Write Your Own Review
You're reviewing:Sachtler Video 18 S2 Fluid Head
Your Rating

Items Included :

  • Sachtler Video 18 S2 Fluid Head
  • Telescoping Pan Handle
  • Limited 1-Year Warranty
More Information
SPECS

Sachtler Video S Series Video Head Specs

Camera Plate
Camera Plate Features Sliding Balance Plate, Quick Release
Camera Plate Type Touch & Go Plate 16
Balance Plate Sliding Range 4.7" / 120 mm
Tripod Platform
Base Mount 100 mm Half Ball
Pan & Tilt
Drag Control Tilt: 7-Step Plus 0
Vertical Tilt +90° to -70°
Panning Range 360°
Independent Pan Lock Yes
Independent Tilt Lock Yes
Physical
Load Capacity 4.41 to 48.5 lb / 2 to 22 kg
Counter Balance Incremental 16-Step
Bubble Level 1 x Illuminated
Operating Temperature -40 to 140°F / -40 to 60°C
Weight 9 lb / 4.1 kg
Packaging Info
Package Weight 11.15 lb
Box Dimensions (LxWxH) 18 x 10.3 x 7.9"
