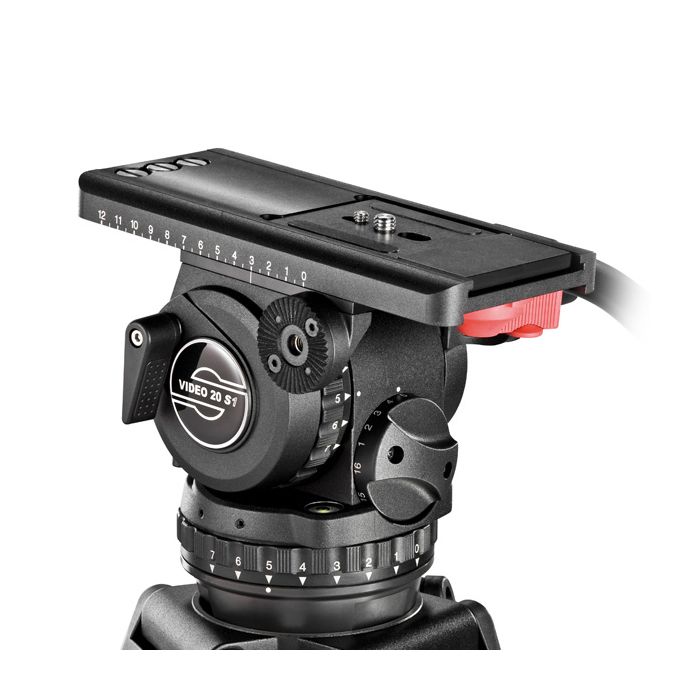

Sachtler Video 20 S1 Fluid Head

SKU
2010
$8,730.50

Product Highlights :

  • Supports 4-55 lbs (2-25kg)
  • Balances DSLR to ENG/EFP Cameras
  • 100mm Bowl Mount
  • 16-step Counterbalance
  • Boost Button
  • 7 Steps of Drag
  • Touch & Go Plate

As a relaunch of the legendary Video 20 head, the Sachtler Video 20 S1 Fluid Head incorporates a wider payload range and a faster, simpler balancing system. The increased range means that even lightweight cameras--such as video DSLRs--can be used effectively on this head, aided by a 16-step counterbalance system that allows for fine degrees of tuning. Like its predecessor, the Video 20 S1 can also easily handle heavier ENG and EFP camcorders, with a Boost Button now included for sudden shifts in payload range (for example, when switching out a shoulder-mount camera for a handheld HDV camcorder or DSLR).

Along with the enhanced counterbalance come those features that made the original Video 18 so popular, including 7 levels of drag, a self-illuminating bubble level, a Touch and Go plate for speedy mounting and removal, and Sachtler's already proven Speedbalance technology. The Video 20 S1 not only embraces the Video 20's reputation in the field of newsgathering, it aims to surpass it.

Boost Button for payload range shift
Parking positions for spare camera screws (Pin, 1/4", 3/8")
Tap holes for adapter viewfinder extension
Sachtler Speedbalance technology
Write Your Own Review
You're reviewing:Sachtler Video 20 S1 Fluid Head
Your Rating

Items Included :

  • Sachtler Video 20 S1 Fluid Head
  • Telescoping Pan Bar
  • Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
More Information
SPECS



Sachtler Video S Series Video Head Specs

Camera Plate
Camera Plate Features Sliding Balance Plate, Quick Release
Camera Plate Type Touch & Go Plate 16
Balance Plate Sliding Range 4.7" / 120 mm
Tripod Platform
Base Mount 100 mm Half Ball
Pan & Tilt
Drag Control Tilt: 7-Step Plus 0
Vertical Tilt +90° to -70°
Panning Range 360°
Independent Pan Lock Yes
Independent Tilt Lock Yes
Physical
Load Capacity 4 to 55 lb / 2 to 25 kg
Counter Balance Incremental 16-Step
Bubble Level 1 x Illuminated
Operating Temperature -40 to 140°F / -40 to 60°C
Weight 7.5 lb / 3.4 kg
Packaging Info
Package Weight 11.45 lb
Box Dimensions (LxWxH) 18 x 10.65 x 7.95"
