SDI Interface and Level Magic™ processor
- SDI (3G/HD/SD) embedder and deembedder for 16 audio channels
- Level Magic ™ 16ch loudness management: ITU-BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
- Stressless processing of unlocked SDI streams
- Setup and configuration via web interface

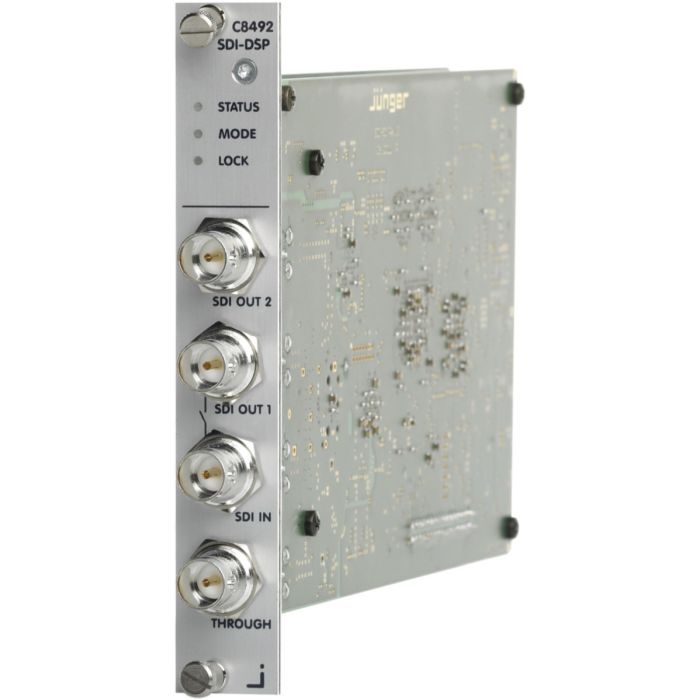

Designed for use in C8000 modular systems, the C8492B offers de-embedding/re-embedding of 3G/HD/SD SDI streams and powerful DSP functions. Access to the C8000 frame’s system bus is also provided allowing the transfer and exchange of audio and metadata with other cards in the frame.
Based on a unique multi-loop control principle, the Level Magic™ algorithm provides adaptive wideband loudness control with exceptionally high audio quality that is free of coloration, pumping, distortion or modulation effects. Level Magic™ combines three major gain changing elements:
• Adaptive AGC
• Transient Processor
• Distortion-free true peak limiter
The adaptive dynamic section includes an expander and upward compressor.
With the optional Upmix license, the unit can be set to detect stereo only content and automatically upmix to 5.1 in order to maintain a constant surround experience. Existing 5.1 content will pass untouched.
More Features:
- Optional 5.1 Upmix
- Dynamics with compressor and expander/gate
- Power-fail bypass relays for SDI signal
- Automatic fail-over
