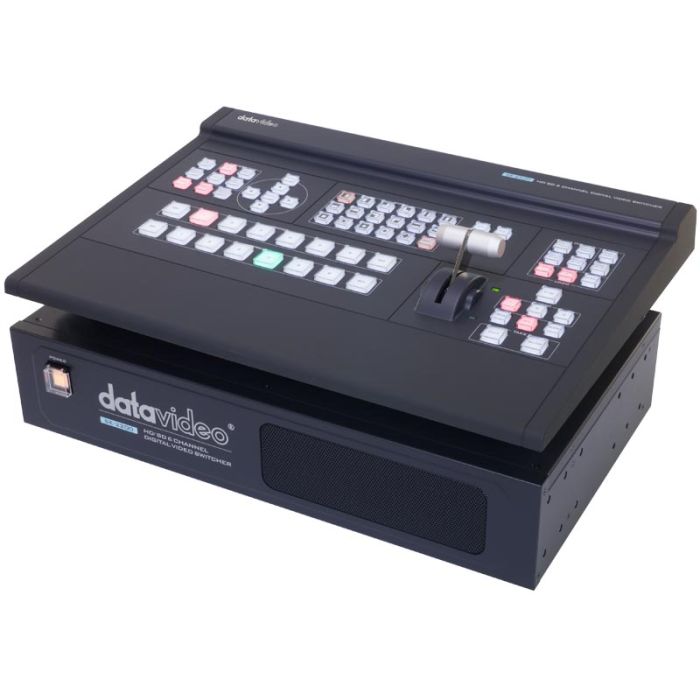

Datavideo SE-2200 6 Input HD broadcast quality switcher

SKU
SE-2200
Request for Price

Product Highlights :

  • 6-Input Multi-Definition Switcher
  • Control Panel / Rackmount Processor Unit
  • 6x HD-SDI & 2x HDMI Inputs
  • 6x Assignable HD-SDI Outputs


Datavideo SE-2200 HD-SDI and HDMI Video Switcher is a 6-input switcher consisting of control panel and separate rack-mountable processing unit. It accepts resolutions up to 1080i60 from a combination of six HD-SDI and two HDMI inputs. The HDMI inputs work with DVI computer signals, while the SDI inputs are useful for long capable runs and connecting professional video equipment. All of the inputs are re-assignable.


The SE-2200 has six assignable HD-SDI outputs and two HDMI multi-view outputs. The SDI outputs can be Program, Program with Logo, Program with Logo and Titles, or Preview. Dual Picture-in-Picture support lets you display up to two other video sources in smaller screens over the main program output. In terms of audio, there are four XLR mono inputs (two stereo pairs) and two XLR mono outputs (one stereo pair). The switcher also supports audio embedding to the HD-SDI outputs.


SE-2200 is a solution that comes with great features such as 6x6 SDI genlocked Matrix, Dual PIP and built-in title overlay system that works with entry-level Datavideo CG systems, or other graphics programs.

SE-2200 consists of 6 HD-SDI video inputs or with a combination of 4 HD-SDI and 2 HDMI inputs; all of the inputs are reassignable, thus it is able to adapt to your needs. One of the HDMI inputs can be used to accept video from a PC/Laptop computer to work with built-in title overlay system such as Datavideo's CG solutions, including CG-200.

Cost-effective support for productions using multiple IMAG screens

The SE-2200 comes with 6 configurable SDI video outputs. Ideal for live production venues, religious worship, meetings or conference purposes. It's perfect for sending video to multiple IMAG screens or display monitors.

6 inputs, 6 outputs. Support for medium to large productions.

With 6 HDMI and SDI inputs, the SE-2200 has convenient support for most cameras and video input devices, like computers. Coupled with 6 outputs, the SE-2200 is an affordable choice for supporting large productions.

Dual PIP and a built-in title creator system

Works with Datavideo CG systems, PowerPoint and other graphics programs perfectly.

Professional 10-bit processing switcher

Providing you the best and professional quality of video processing.

Real-time clock featuring HH:MM:SS on the multi-screen

Count down counter MM:SS.




SE-2200 - Specification

More Information
Video Standard:HD & SD
Video Format:1080p 25/29/30/50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz
Video Processing:SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB 4:4:4
Input Routable / Crosspoint:All 12, repeatable
Video Input:Standard: 8x SDI, 2x HDMI Max: 12x SDI, 3x HDMI
Mix HD & SD Source:Yes
Computer Graphic Interface:Max 3 via HDMI
Video Output:4x SDI assignable:
PGM, PVW, AUX & Clean Out 2x HDMI assignable:
PGM & multi-view
Down-converted Output:4x SDI
Built-in Multi-view Monitoring Out:2x HDMI
Analogue Audio Input:4x Balanced XLR
Analogue Audio Output:2x Balanced XLR
Digital Embedded Audio Support:Input up to 16 channels, Output 4 channels
Audio Delay Calibration:Up to 8 frames per channel (*SDI input audio only)
A+V Switching:Yes
Title Creator:Yes, CG-200 software free download
DSK:2x DSK support Lumakey/ Linear key (Key / Fill)
Picture in Picture:2
Logo Insertion:2 (or 1 logo + 1 clock)
Still Store:12
Effects:FTB, Cut, 8 Wipe with border
Transition Preview:PiP & DSK
Sync / Reference In/Out:Built-in Genlock
Support external sync with loop thru
Tally Output:1x D-sub 25pin, dual color
PC Remote Control:Ethernet (free Window software) RS-422/ RS-232
Special Features:4-CH SD downconvert output Built in TC-200 CG system Selectable SMPTE/EBU Audio level
Chassis:2 units, 2RU rack-mount mainframe
Dimension (LxWxH):433 x 312 x 76 mm (switcher)
432 x 252 x 88 mm (main unit)
Weight:4.7 kg
Power:DC 12V, 44W
Operating Temp. Range:0~40 °C
Options:CB-46/47/60/61/62
What's in the box:1 x SE-2850 Main Unit
1 x SE-2850 Control Board
1 x AD Switch DC 12V with AC Cord 1 x DB9P TO DB9P Cable
1 x CB-41 / XLR to XLR Cable 2 x Extra button cap for wipe 12 x Screw
2 x 2U Ear Rack
1 x Thank You Card
Audio Input 4 x XLR (2 stereo pair)
Video O/P 6 x HD-SDI (assignable)
2 x HDMI (Multi-View PVW)
Video i/p 4 x HD-SDI
2 x HD-SDI or HDMI (selectable)
Audio Output 2 x XLR (1 stereo pair)
  • 1 x SE-2200 Main Unit
  • 1 x SE-2200 Key Board
  • 1 x AD Switch DC 12V with AC Cord
  • 1 x DB9P TO DB9P Cable
  • 1 x CB-41 / XLR to XLR Cable
  • 12 x Screw
  • 2 x 2U Ear Rack
  • 1 x Thank You Card
