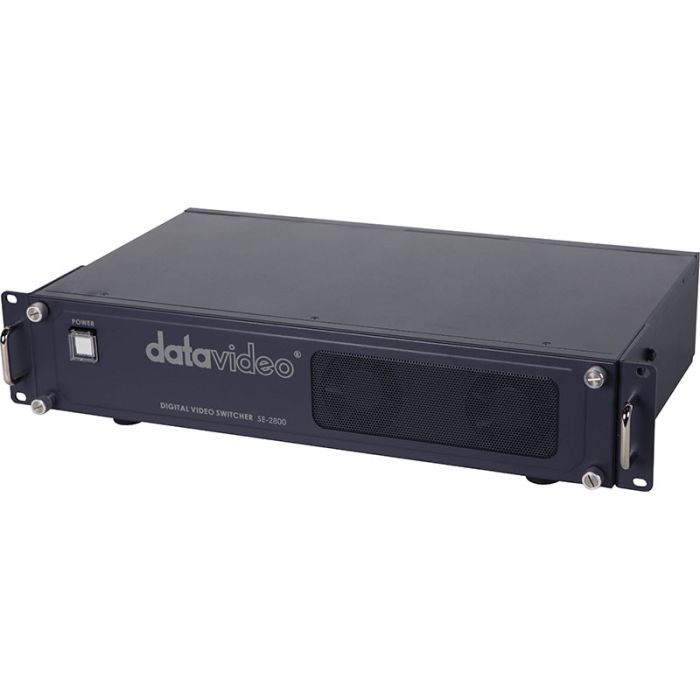

Datavideo SE-2800 HD/SD 12-Channel Digital Video Switcher

The Datavideo SE-2800 is a cost-effective,broadcast-quality switcher. Featuring 12 digital and analogue inputs, it is designed for live events and TV programmes that need to blend a variety of video and audio sources. Thanks to its small form factor, the SE-2800 is ideal for use in a portable rack unit or in outside broadcast vehicles.

Producing superb 4:2:2 10 bit broadcast quality pictures with versatile input/output configurations, the SE-2800 also has powerful, easy to use effects, such as dual picture in picture (PIP), downstream keyer (DSK) and logo insertion.

Dual-Screen Multiscreen Viewer As Standard

Multiscreen monitoring is available on two HDMI monitors (not supplied). They can be used to monitor video and audio in a number of different configurations. For each set up, embedded audio level indication is available on all inputs and the Program window.

Configuration 1:
 - On screen 1: 9 live inputs
 - On screen 2: 3 live inputs with additional Preview and Program windows

Configuration 2:
 - On screen 1: 12 live inputs with additional Preview and Program windows
 - On screen 2: Program window

Configuration 3:
 - On screen 1: 8 live inputs with additional Preview and Program windows
 - On screen 2: Program window
