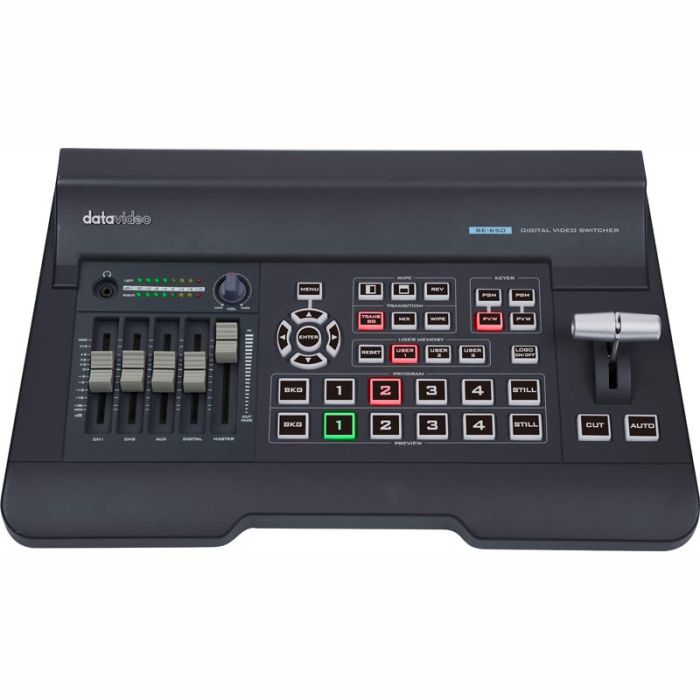

Datavideo SE-650 4 Input HD digital video switcher

SKU
SE-650
Request for Price
  • 4-Input, 4-Channel Video Switcher
  • HD-SDI and HDMI Video Inputs
  • 6-Channel Digital Audio Mixer
  • Configurable Video Outputs
  • Supports Embedded Audio
  • Upstream Keyer and PiP
  • Full Mix Effects Preview
  • Built-In Transitions, Wipes, and Fades

Datavideo SE-650 is an all-in-one solution for live video production. Video and embedded audio can be imported using two HD-SDI and two HDMI inputs; audio can also be brought in through analog inputs. Multiple video outputs enable you to send video to multiple locations. The output section is configurable, so you can choose which output is your multiview, and which are your program outputs. Having multiple program outputs means that you can have one output recorded separately, and one output sent to a streaming server for live broadcast online.


SDI and HDMI inputs on a budget

The SE-650 is Datavideo's most affordable SDI+HDMI switcher available. With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog.

Easy on the outside. Professional on the inside.

 The SE-650's intuitive control panel makes switching a piece-of-cake for experienced users, as well as for beginners such as volunteers and students. Though it's geared for novice users, the SE-650 is packed with advanced features such as lumakey and chromakey.


Stunning video effect enrich the scene

 Down stream keyers(DSK) , up stream keyers(USK) and picture-in-picture(PIP) generators combined with a dual chromakeyer give you enough freedom to be creative.

Built-in audio mixer

 The SE-650's built-in audio mixer means that you've got everything you need to control your audio input levels. For most productions, this means that there's no need to buy a separate external audio mixer.

Built-in animations and backgrounds

Choose between a variety of pre-saved animated stinger transitions and virtual set backgrounds.

User memories

You can save a complex process into a user memory, turning multiple tasks into a one-finger job.


Professional 10-bit processing switcher

Providing you the best and professional quality of video processing.



Write Your Own Review
You're reviewing:Datavideo SE-650 4 Input HD digital video switcher
Your Rating
  • 1 x SE-650 product
  • 1 x AD Switch DC 12V with AC Cord
  • 1 x Thank You Card

SE-650 - Specification

More Information
Video Standard:HD
Video Format:1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Video Processing:SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4
Input Routable / Crosspoint:All 4, repeatable
Video Input:2x HD-SDI
2x HDMI
Computer Graphic Interface:2 via HDMI
Video Output:2 x HDMI (1 is MV, 1 is Assignable) 1 x HD-SDI (Assignable)
Built-in Multi-view Monitoring Out:HDMI & SDI assignable
Analogue Audio Input:1 x Stereo RCA (L/R)
2 x Mono Microphone
Analogue Audio Output:1 x Stereo RCA (L/R)
1 x Stereo headphone (Mini Jack with volume control)
Digital Embedded Audio Support:Input 2 channels, Output 2 channels
A+V Switching:Yes
Chromakey:2
USK:2x Keyer support Chromakey/ Linear/ Luma Key
DSK:1x DSK support Lumakey/ Linear key (Key / Fill)
Picture in Picture:1
Logo Insertion:1
Still Store:500
Effects:FTB, Cut, 32 Wipe with border
Transition Preview:Full transitions preview
Sync / Reference In/Out:Built-in Genlock (internal)
Tally Output:1x D-sub 15pin, dual color
PC Remote Control:DVIP (Ethernet)
Built-in Audio Mixer:Yes, 4 channels
Special Features:Free Virtual Set and Stinger transition included
Chassis:Unibody
Dimension (LxWxH):400 x 250 x 82 mm
Weight:1.9 kg
Power:DC 12V, 29W
Operating Temp. Range:0~40 °C
Options:CB-46/47/60/61/62
What's in the Box:1 x SE-650 product
1 x AD Switch DC 12V with AC Cord 1 x Thank You Card
